Using the PowerScan™ PD9130
Quick Reference Guide 3
Using the PowerScan™ PD9130
The PowerScan™ PD9130 normally functions by capturing
and decoding bar codes. The reader is equipped with an
aiming system which helps to aim the target.
PowerScan™ PD9130 provides an aiming system. If
enabled, a partial trigger press produces a flashing scan
line, which should be aimed over the code, see the figure
above. By completely pressing the trigger the scan line
becomes continuous to start the code scanning.

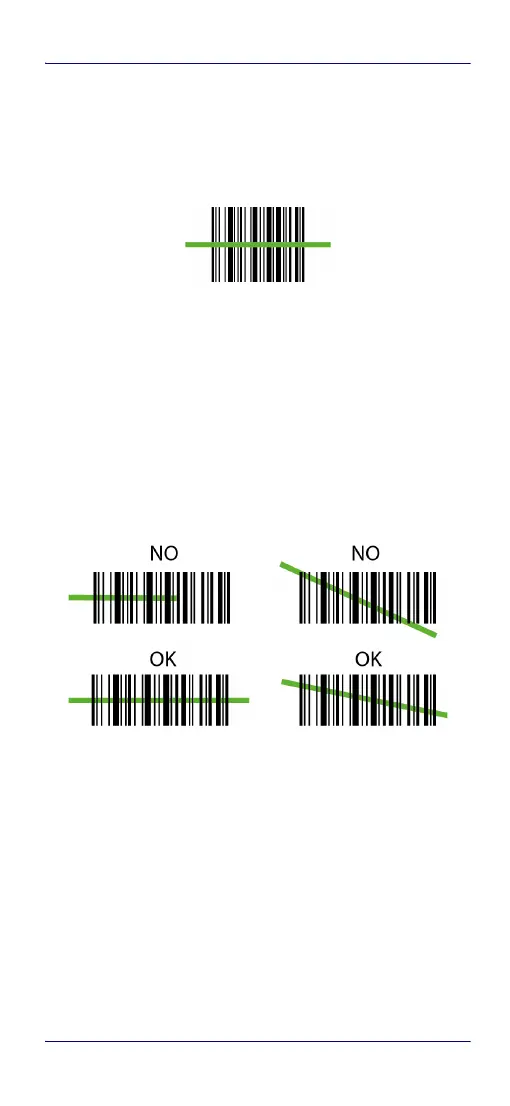

Scan Line Position
Code scanning is performed along the scan line emitted
from the reading window. This line must cross the entire
code. The best reading angles are indicated in the figure
below:
