Technical Specifications
QUICK REFERENCE GUIDE
19
READING PARAMETERS
DOF
a

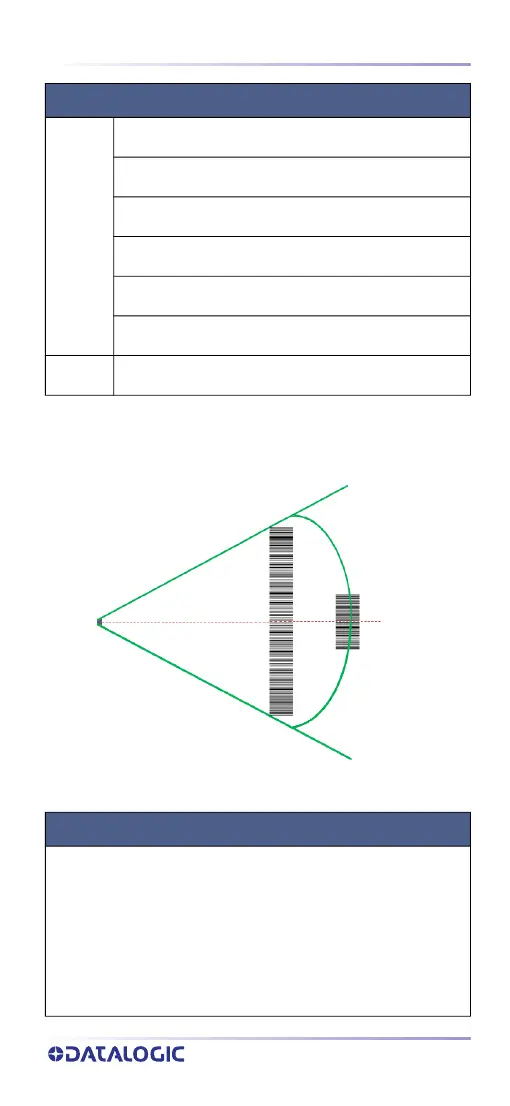

a. The depth of field is defined by an arc and not a plane. Shorter bar codes of a
given resolution can be read at a further distance than longer bar codes (as
explained in the following image).
Code 39 4mils: 25 to 220mm / 0.98 to 8.66 inch
b
b. All labels grade A, typical environmental light, 20°C, label inclination 10°.
Code 39 5mils: 10 to 300mm / 0.39 to 11.8 inch
b
Code 39 7.5mils: 10 to 450mm / 0.39 to 17.7 inch
b
Code 39 10mils: 10 to 600mm / 0.39 to 23.6 inch
b
Code 39 20mils: 30
c
to 1030mm / 1.18 to 40.55 inch
b
c. Depends on size label.
EAN13/UPC A 13 mils: 10 to 680mm / 0.39 to 26.77 inch
b
Resolution
(Maximum)
0.0077mm /3mils
DECODE CAPABILITY
1D Bar Codes
UPC/EAN/JAN (A, E, 13, 8); UPC/EAN/JAN (including P2 /P5); UPC/EAN/JAN
(including; ISBN / Bookland & ISSN); UPC/EAN Coupons; Code 39 (including full
ASCII); Code 39 Trioptic; Code39 CIP (French Pharmaceutical); LOGMARS (Code 39
w/ standard check digit enabled); Danish PPT; Code 32 (Italian Pharmacode 39);
Code 128; Code 128 ISBT; Interleaved 2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP
(HR); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/Chinese 2
of 5); IATA 2of5 Air cargo code; Code 11; Codabar; Codabar (NW7); ABC Codabar;
Code 93; MSI; PZN; Plessey; Anker Plessey; Follet 2 of 5; GS1 DataBar Limited;
GS1 DataBar Expanded; GS1 DataBar Truncated; DATABAR Expanded Coupon.
