Operating Modes
QUICK REFERENCE GUIDE
15
★ = default value
OPERATING MODES
Scan Mode
The reader can be set to operate in one of several scan-
ning modes. See the PRG for more information and set-
tings for any of the following options:
Trigger Single (Default) This mode is associated with the
typical handheld reader operation. When the trigger is
pulled, illumination is turned on and the scanner attempts
to read a label.
Scanning is activated until one of the following occurs:
• the programmable “maximum scan on time”
1
has
elapsed
• a label has been read
• the trigger is released
Trigger Pulse Multiple - Scanning begins when the trigger
is pulled and continues after the trigger is released, until
the trigger is pulled again or until the programmable
“maximum scan on time”
1
has elapsed. Reading a label
does not disable scanning. Double Read Timeout
1
pre-
vents undesired multiple reads while in this mode.
Trigger Hold Multiple - When the trigger is pulled, scan-
ning starts and the product scans until the trigger is
released or “maximum scan on time”
1
has elapsed. Read-
ing a label does not disable scanning. Double Read Time-
out
1
prevents undesired multiple reads while in this
mode.
Always On - The illuminator is always ON and the reader
is always ready for code reading. Double Read Timeout
1
prevents undesired multiple reads.

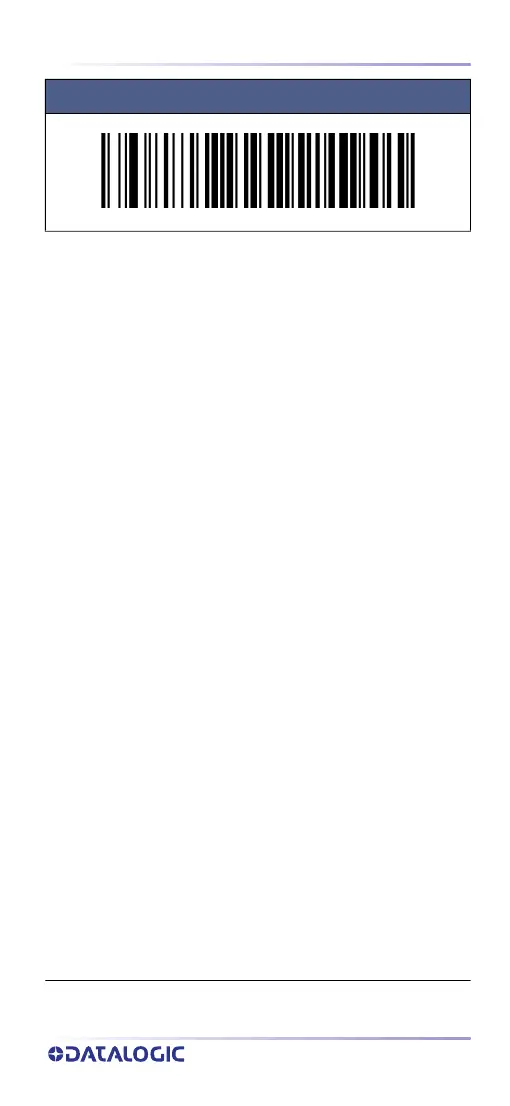

GREEN SPOT DURATION (CONTINUED)
Long (800 ms)
1. See the Product Reference Guide (PRG) for these and other pro-
grammable features.
