Rhino™ 10 Installation Manual

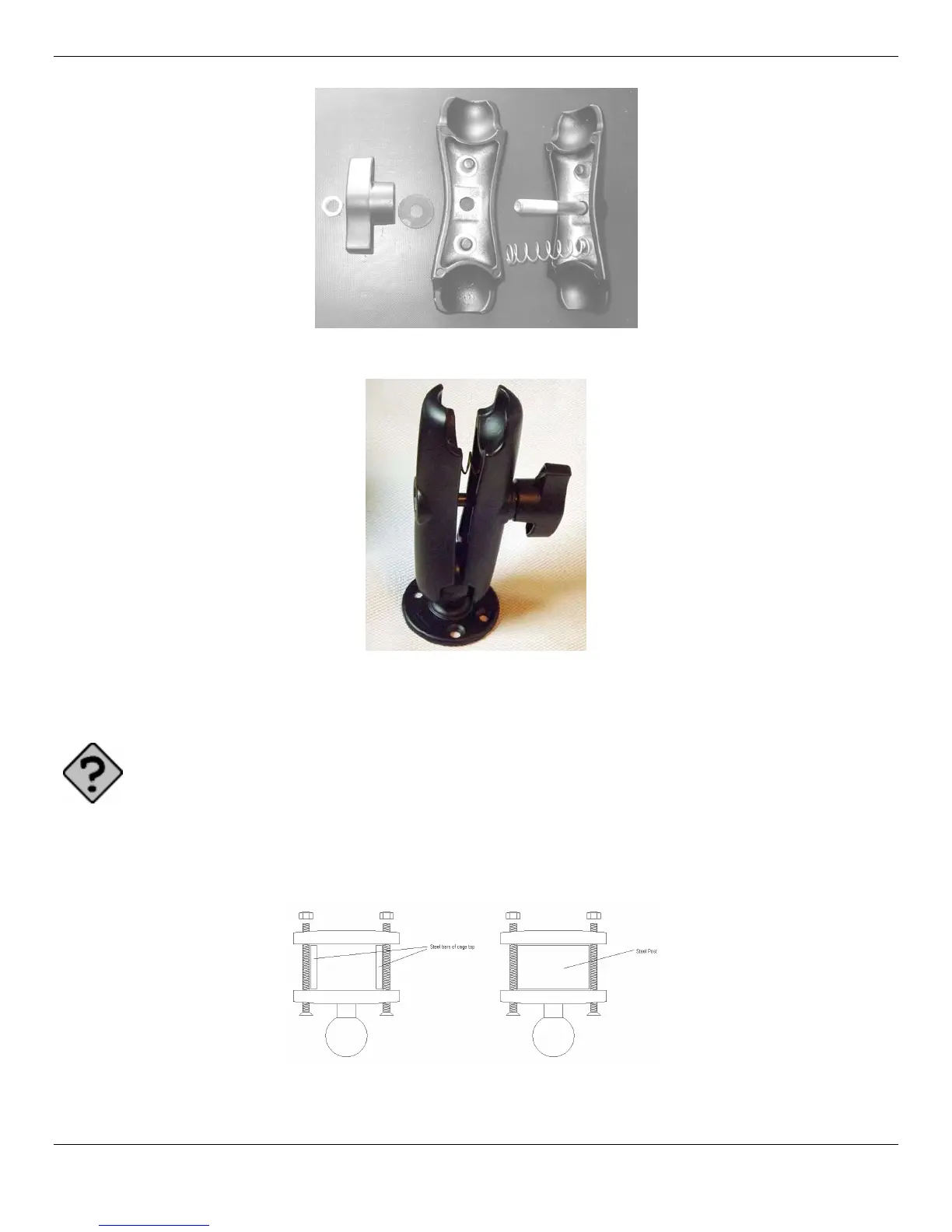

Figure 6 – Unassembled Mounting Arm
Figure 7 – Assembled Mounting Arm
Attach the Rail Base to the Vehicle
There are two different bases available from Datalogic, the Ram 4” Rail Base (P/N 94ACC0035) and the
Ram Mount with Round Base (P/N 94ACC0034). This section describes the use of the standard rail mount
base. Other bases will require different mounting techniques.
Select the location on the vehicl
e for the mount base. For the rail base, insert one screw through the two base parts
and turn on the lock nut finger tight. Hold the base up to the post or rail selected, and insert the second bolt through
the base. Swing the back plate around and over the bolt. Turn the second lock nut on finger tight. Tighten the bolts
with a 3/16” hex driver (not included).
Figure 8 – Mounting Base Assembly
7
