Installation Manual Rhino™ 10
Installing an External Antenna
Option 1 – Rabbit Ears
If you purchased external dipole antennas, simply screw them onto the two connectors on the top of the unit. For a
more secure connection, use a drop of Loctite medium on the connector threads before attaching the antennas.

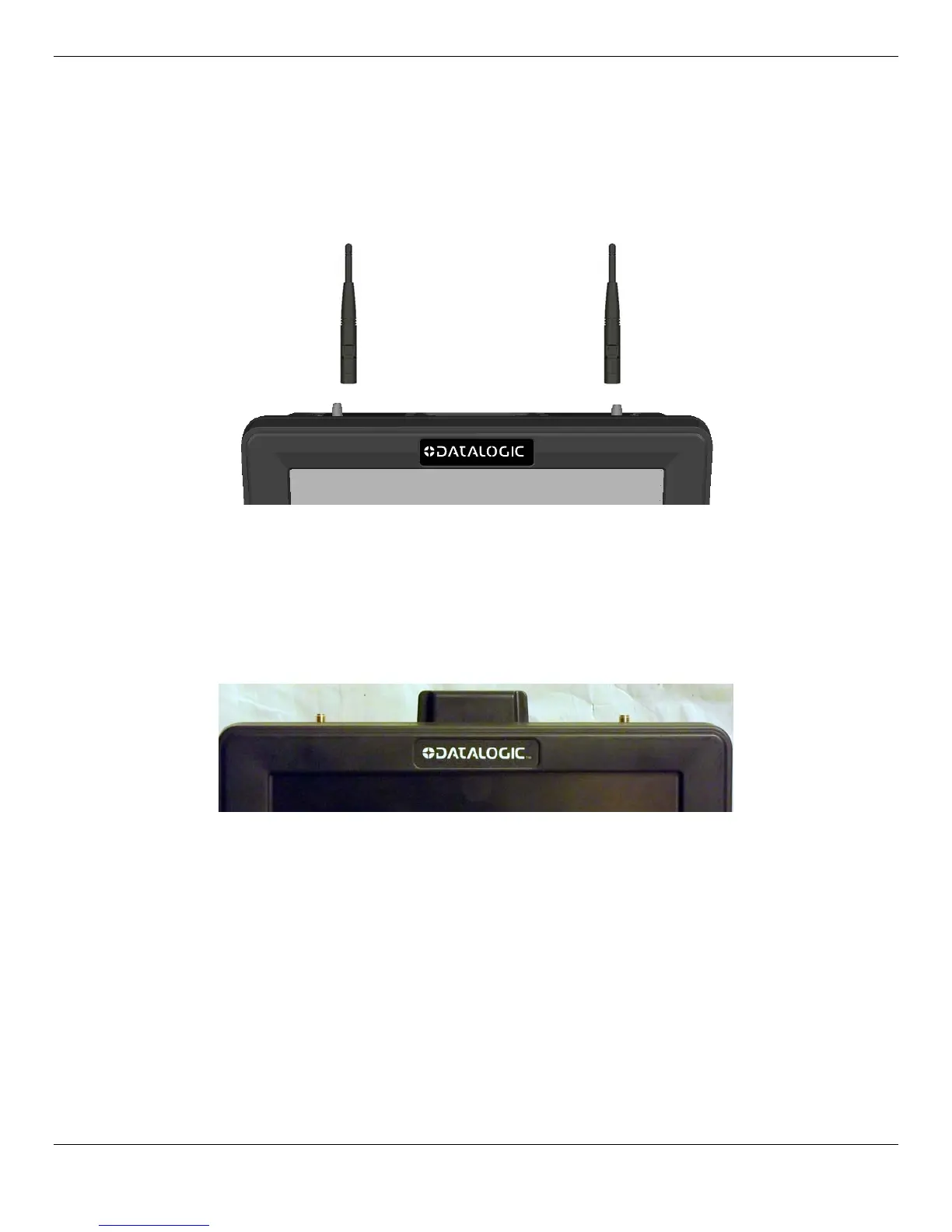

Figure 11 – Mounting the Antennas
If you purchased a roof mount external antenna, follow the instructions included with the antenna.
Option 2 – Antenna Dome
If you are using an 802.11g radio, the dome antenna mounts to the two screws on the top of the computer and the
black plastic dome fits over the antenna to protect it. This is not user serviceable.
Figure 12 – Dome Antenna
