Rhino™ 10 Installation Manual
3. Align the keyboard with the offset holes men-
tioned in the previous step and attach the key-
board to the mounting plate using the four re-
maining 8-32 screws and lock washers.
4. Plug the USB cable into the top USB port on the
Rhino™ 10.
A
B
C
5. As shown in A+B, in-
stall the USB retainer
on the underside of
the Rhino™ 10 and
loosely insert the two
¼”-32 screws pro-
vided.
C – Slide the USB
cable into the slot in
the USB cable re-
tainer. Position the
cable retainer so that
the USB connector is
held firmly in place
and tighten the two
screws.
6. Secure the keyboard
cable under the key-
board mount using
the 2 wire ties pro-
vided.

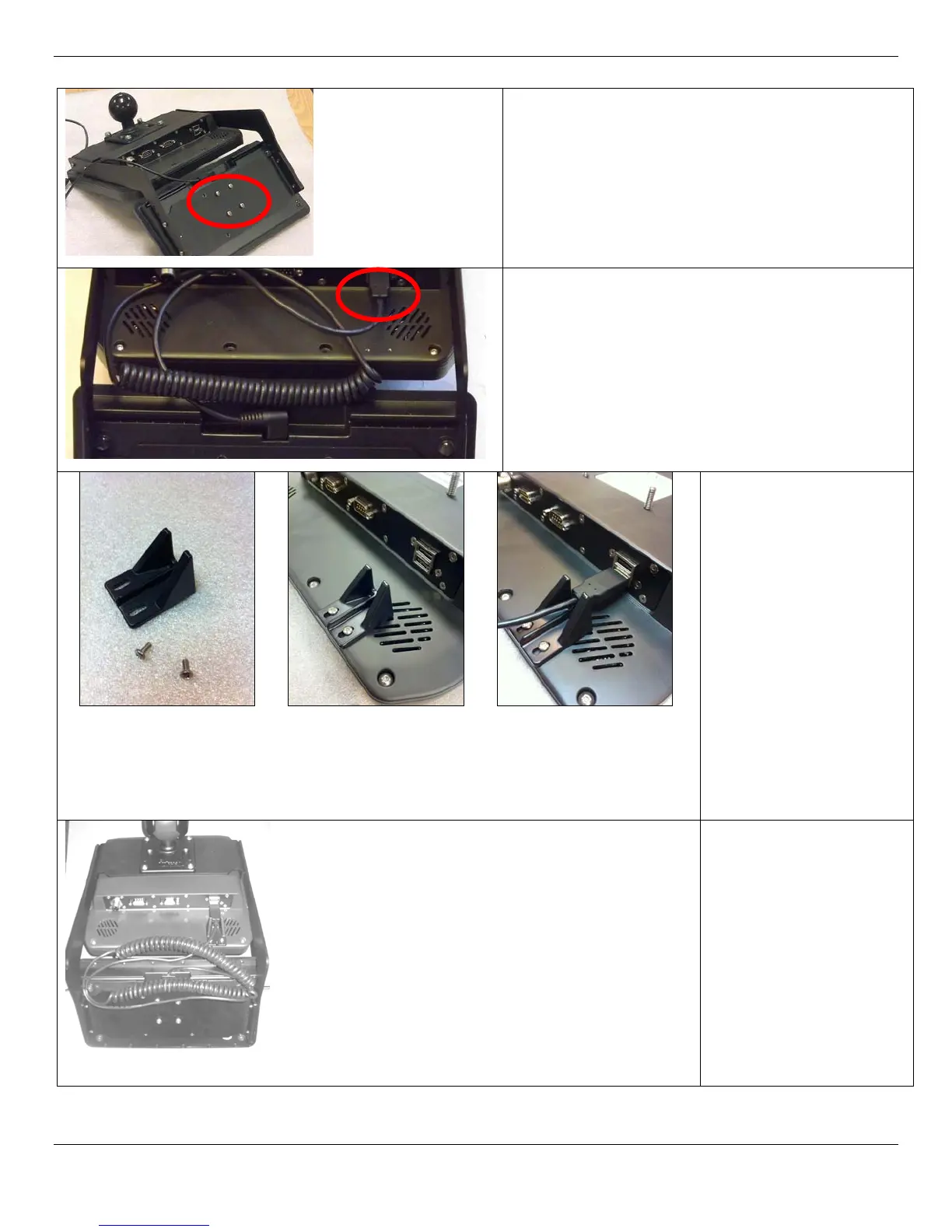

Figure 9 – Mounting the Keyboard
9
To Next Page
