Datamax-ONeil RL3 - Page 18

www.datamax-oneil.com 11

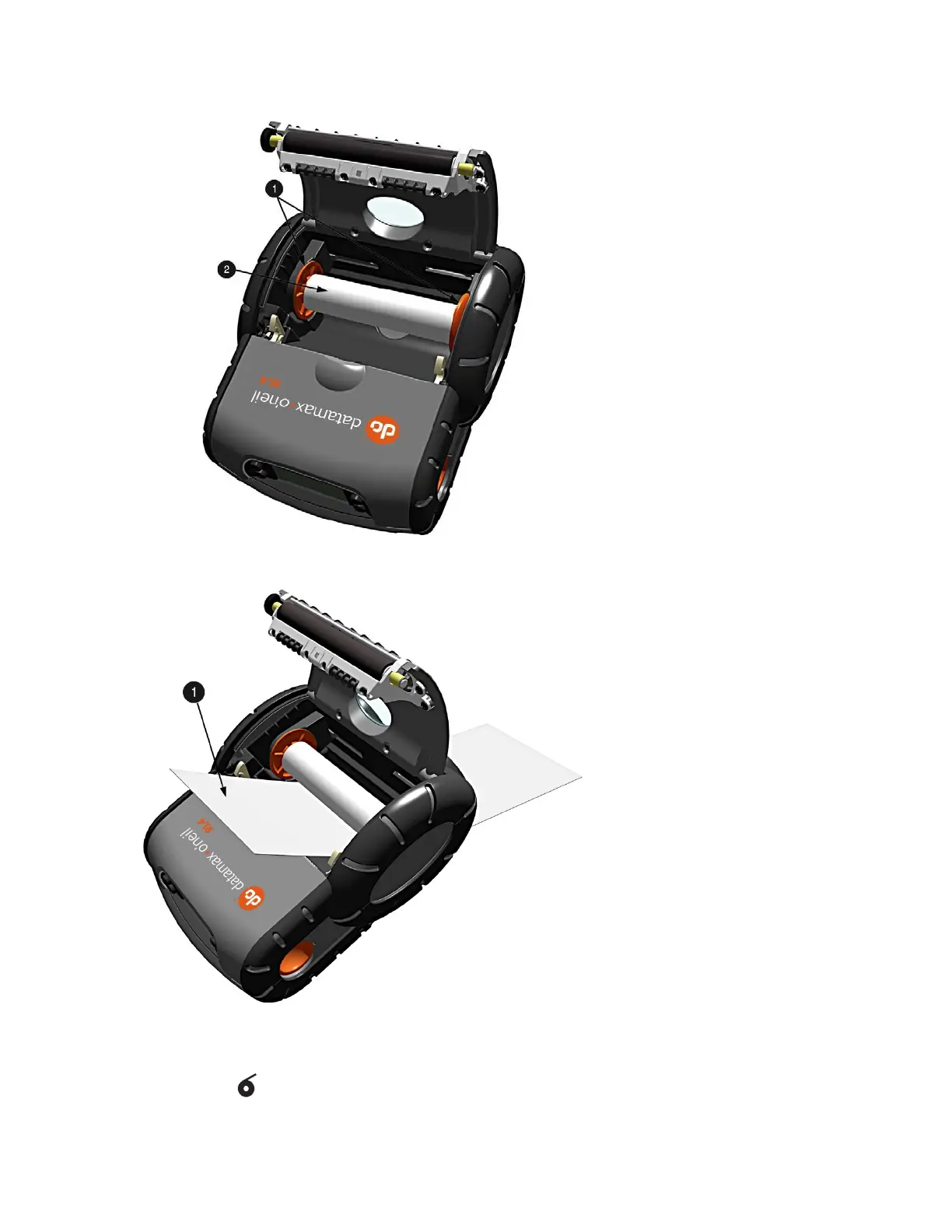

3) Slide and hold open the Supply Hubs and install the Media Spacer.

Supply Hubs

Media Spacer
4) Insert the Media through the External Media Door and through the printer as shown:

Media
5) Close the printer’s Cover and press downward until latched.
6) Press the button a couple of times to normalize tracking. The printer should advance the
media to the start of the next label for each press.
