A-Class 129
Appendix C

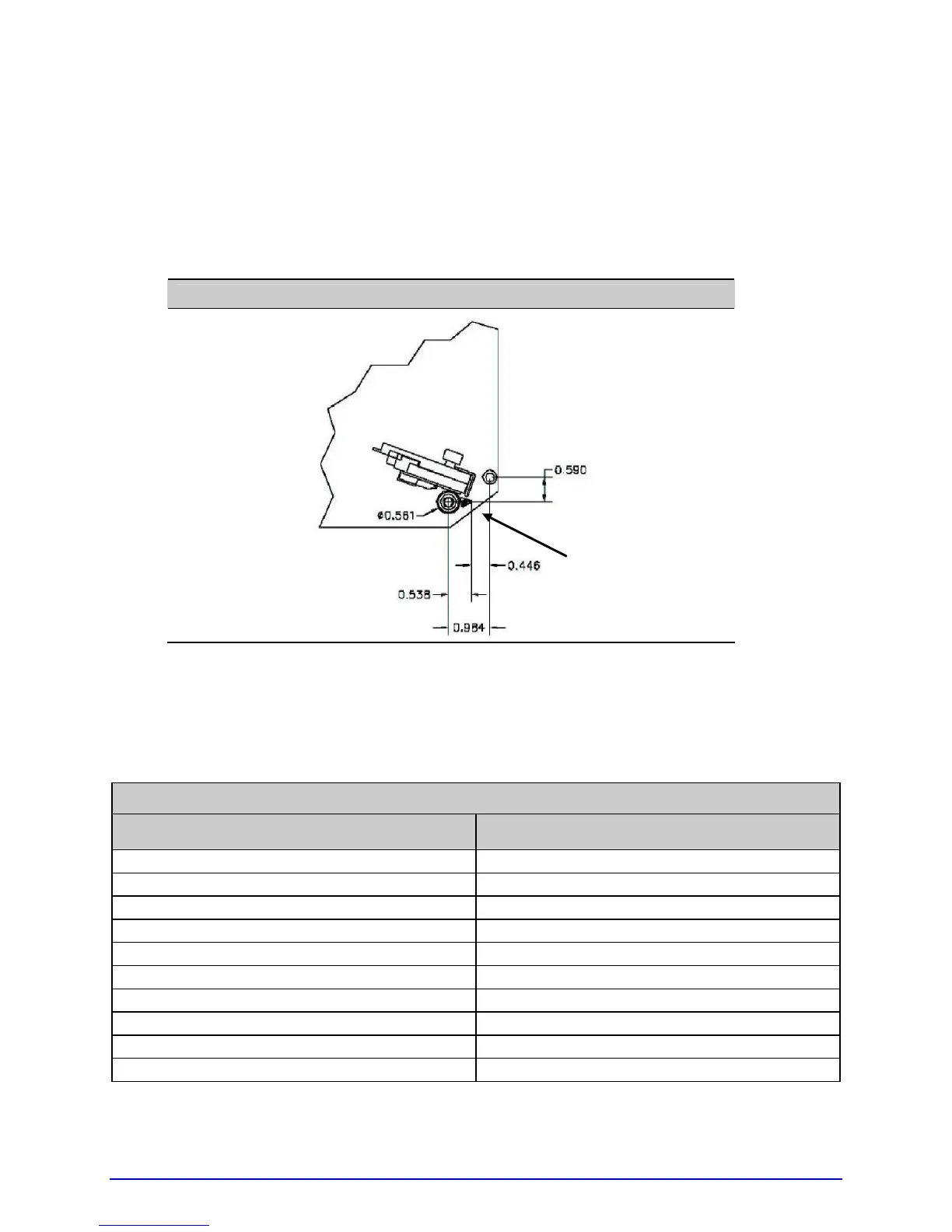

PE Peel Bar Location
Provided as a reference, the drawing below defines the previous peel point of PE models.
PE Printer Peel Point
PE to A-Class GPIO Adapter Cable
A GPIO Adapter Cable (P/N 32-2562-01) for integration of the A-Class into an existing PE
installation. The cable converts the connections listed in the table below.
PE to A-Class GPIO Adapter Cable*
PE DB9 Pin Connections A-Class DB15 Pin Connections
1 2
2 9
3 10
4 NC
5 3
6 11
7 12
8 13
9 8
Case (shield) Case (shield)
*For fabrication, use a DB9 metal-shelled female connector (part numbers, 21-2757-01 & 21-2629-
01); and a DB15 metal-shelled male connector (part numbers, 21-2758-01 & 21-2759-01).
Peel Bar
