Datamax MP Compact4 Mobile Mark II - Loading Labels and Media

5
2
2
2
.
.
.
3
3
3
L
L
L
o
o
o
a
a
a
d
d
d
i
i
i
n
n
n
g
g
g
L
L
L
a
a
a
b
b
b
e
e
e
l
l
l
s
s
s
Load media into the printer as follows:

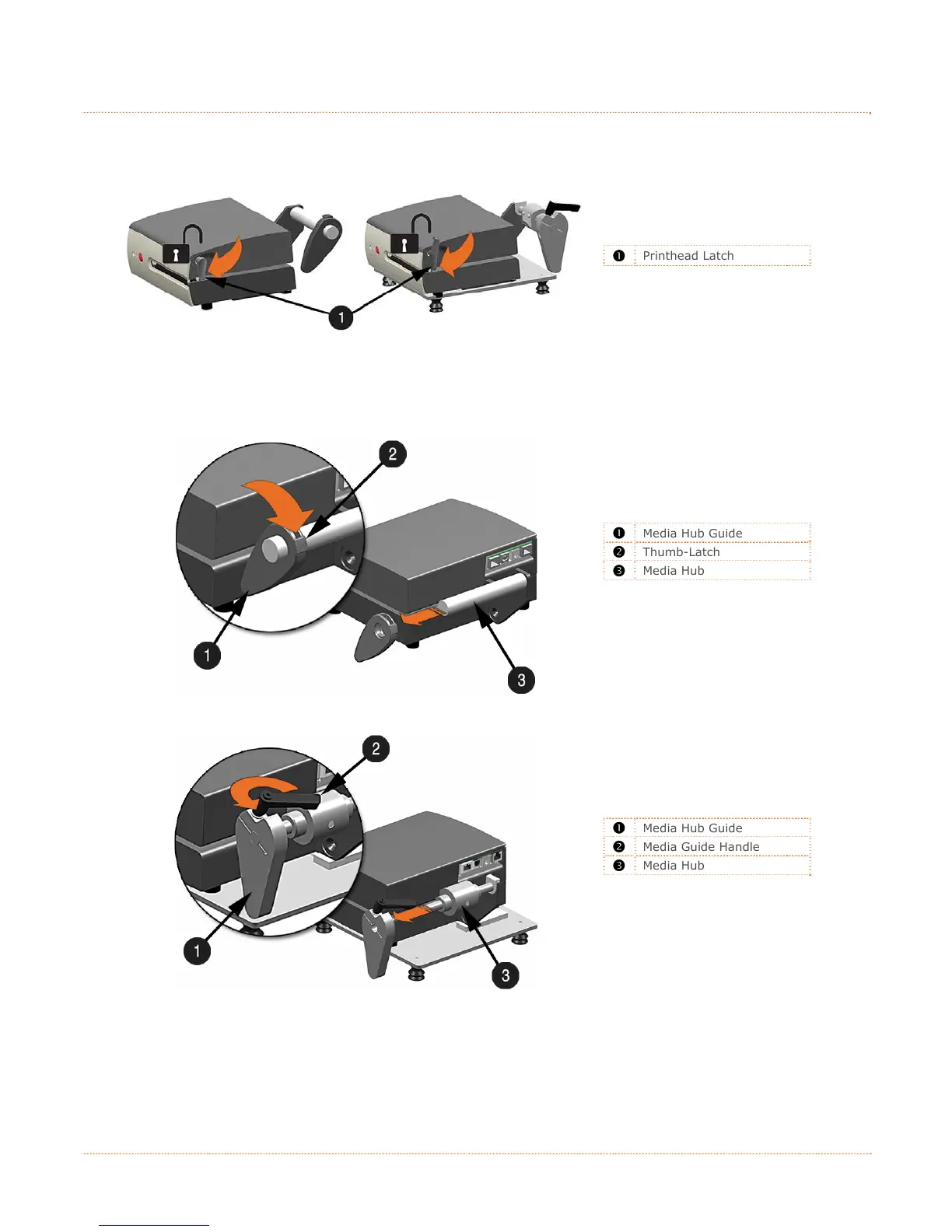

1. Rotate the Printhead Latch clockwise to the unlocked position.
AC Models DC Models

Printhead Latch
2. Remove the Media Hub Guide:
AC Models: Move the Thumb-Latch to the released position and then slide the Media Hub Guide off
the Media Hub.

Media Hub Guide

Thumb-Latch

Media Hub
DC Models: Loosen the Media Guide Handle and slide the Media Hub Guide off the Media Hub.

Media Hub Guide

Media Guide Handle

Media Hub
