WATCHPAX 60 MODEL B 27
CONNECTORS

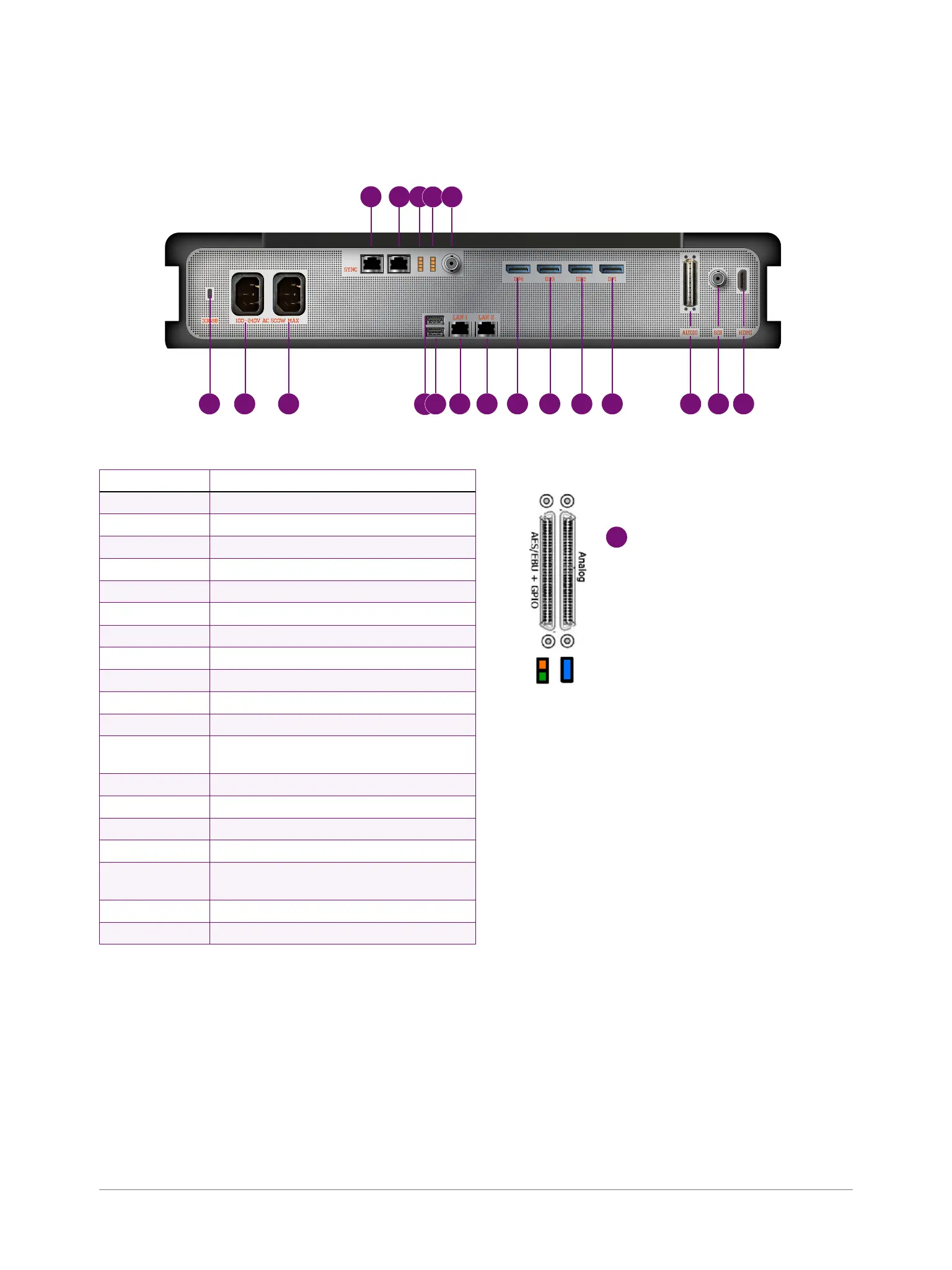

WATCHPAX 60 model B:
CONNECTOR
DESCRIPTION
1
Kensington lock
2
Power inlet IEC 60320 C14 1
3
Power inlet IEC 60320 C14 2
4
Frame-lock connector 1
5
Frame-lock connector 2
6
Status LED 2
7
Status LED 1
8
External sync
9
USB 3.0 port 1
10
USB 3.0 port 2
11
RJ45 10GbE Ethernet 1
12
RJ45 10GbE Ethernet 2
Currently disabled; reserved for future use.
13
DisplayPort v1.4 - 4
14
DisplayPort v1.4 - 3
15
DisplayPort v1.4 - 2
16
DisplayPort v1.4 - 1
17
Audio input/output VHDCI (to XLR by
break-out cable)
18
Capture card SDI 3G
19
Capture card HDMI 1.4
19
1
18
1
17
1
16
1
15
1
14
1
13
1
12
1
11
1
9
1
3
1
2
1
1
1
10
1
5
1
4
1
6
1
7
1
8
Connect the audio cable to the
analog connector on the right
(as indicated by blue here).
1
17
Keep clear for ventilation
