HARDWARE INSTALLATION
53

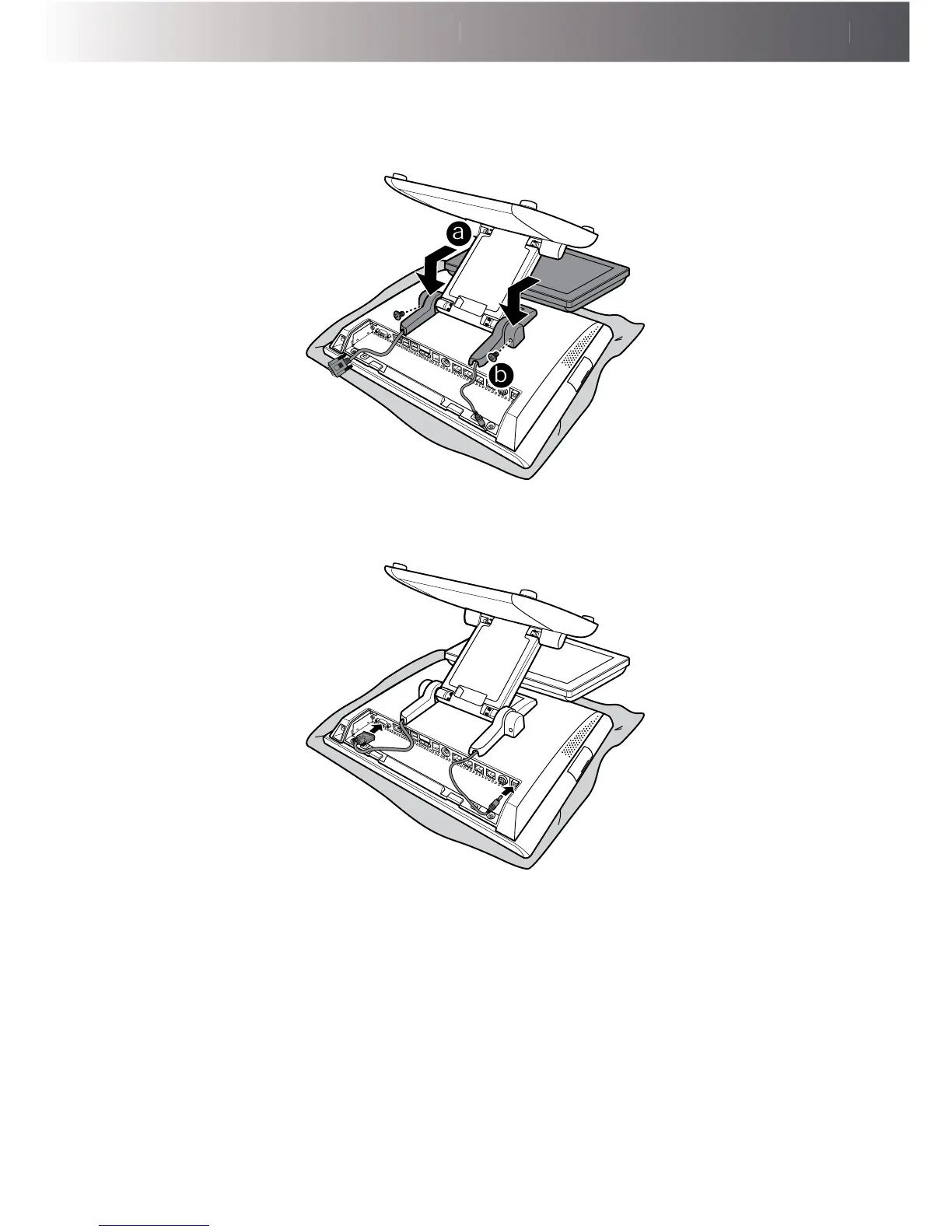

6. Install the secondary LCD display bracket into its slot on the back of the LCD panel. Make
sure the bracket is properly aligned with the hinge.
(a)
Then secure the bracket to the hinge with the two screws (FУM4x10). (b)
a
b
7. Connect the secondary LCD display’s power cable and VGA cable to the corresponding
ports on Touch Terminal.
