Datavan G-615 - Page 55

HARDWARE INSTALL ATION
55

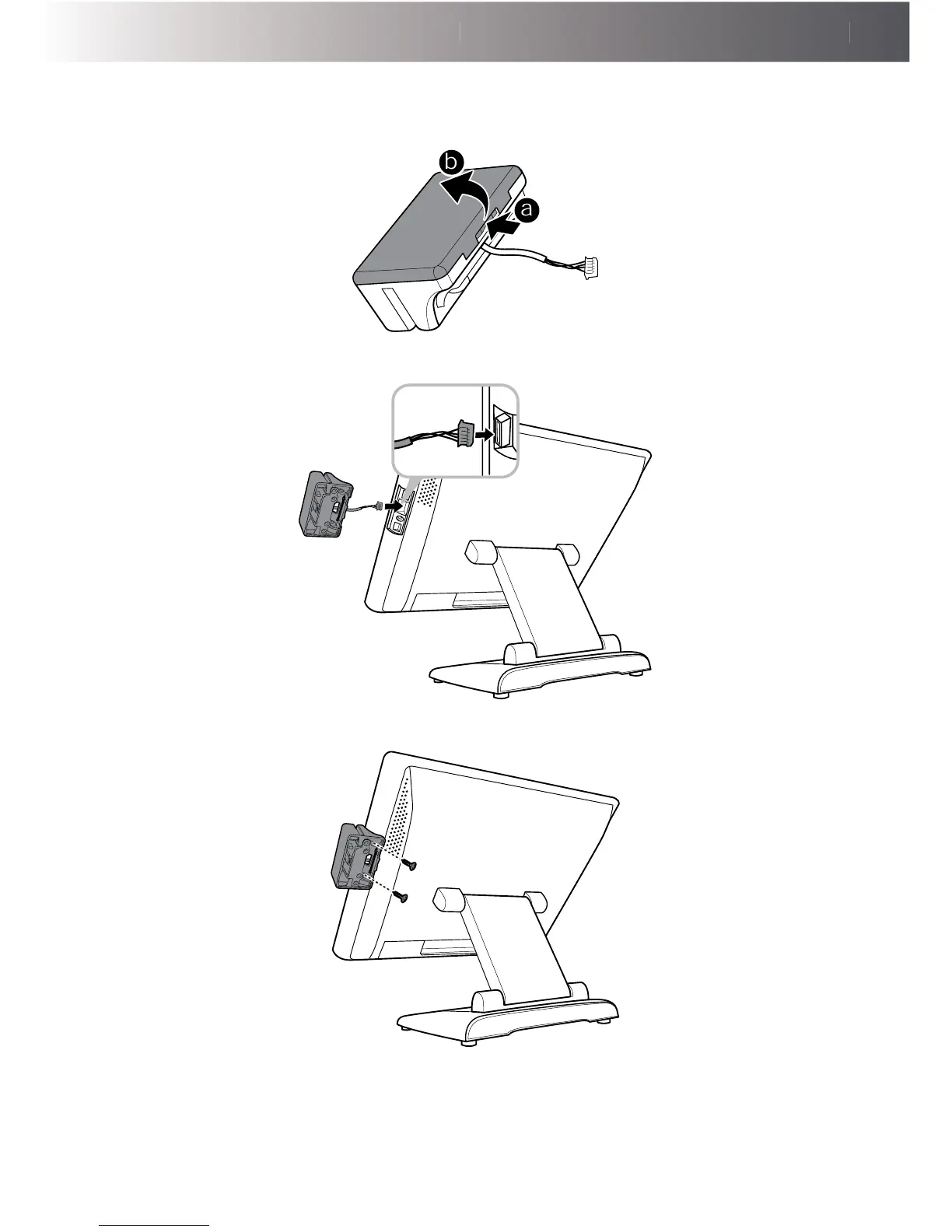

2. Press the latch down to disengage the MSR module cover from its main unit.
(a)
Then remove the MSR module cover. (b)
a
b
3. Firmly connect the MSR connector into the slot inside the compartment.
4. Secure the MSR module to the Touch Terminal, using the two screws (M3x8).
