HARDWARE INSTALL ATION
61

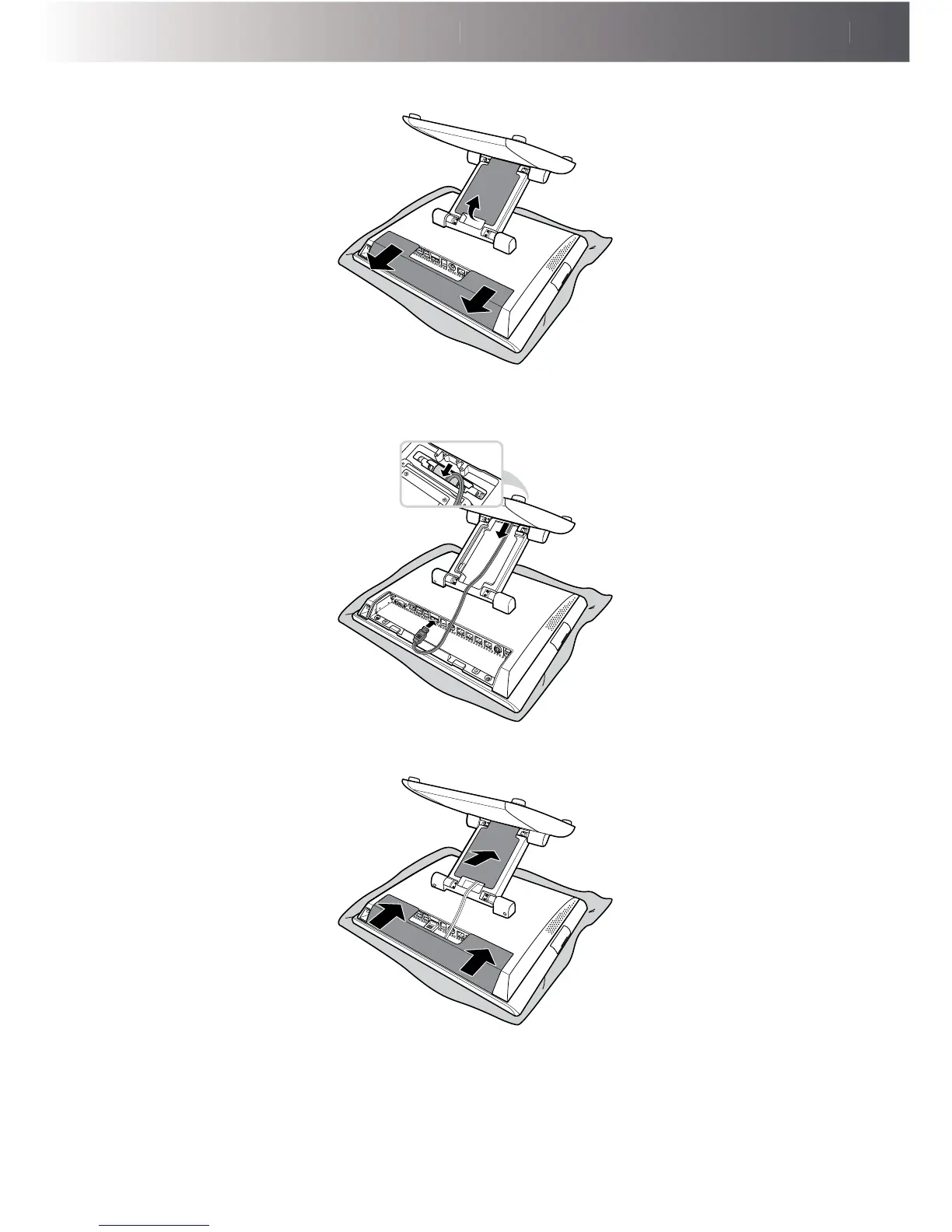

6. Remove the cable compartment and the connectors covers.
7. Route the eSATAp to SATA 22pin cable through the cable compartment. Then connect the
other end of the eSATAp to SATA 22pin cable to the E-SATAp port.
8. Align and install the cable compartment and the connectors covers.
