PREPARING FOR THE INSTALLATION
PREPARING FOR THE INSTALLATION

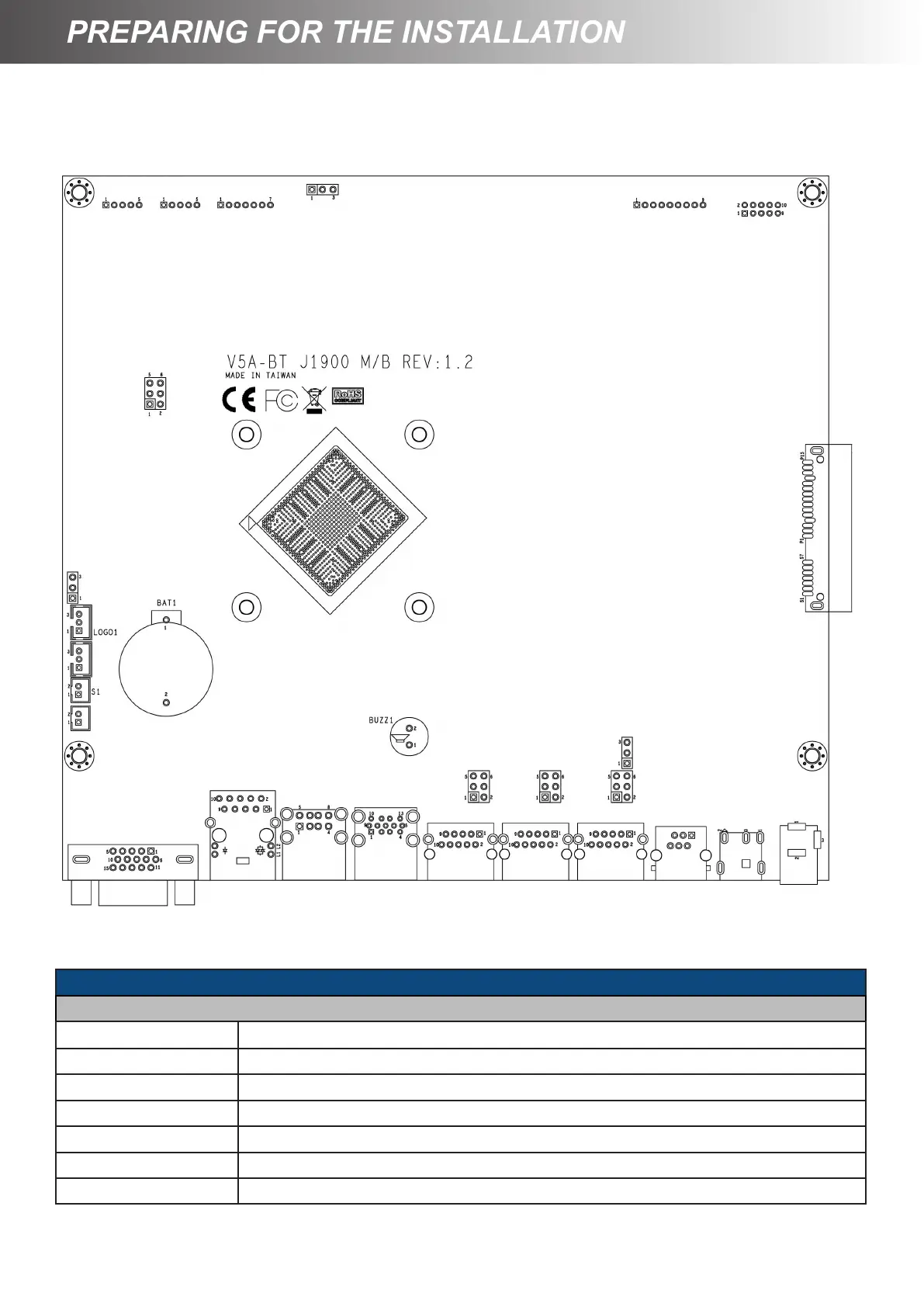

Jumpers Content List
S-615W
SoC
Battery
JP3
JP5 JP6 JP4
JP7
JP1
JP2
PIN Header / Jumper List
Item Connector Denition
JP1 SPI BIOS Flash
JP2 LCD Panel Voltage Select
JP3 Clear CMOS
JP4 Cash Drawer Voltage Select
JP5 COM 1 Port Voltage Select
JP6 COM 2 Port Voltage Select
JP7 COM 3 Port Voltage Select
