Datavan S-615W - Page 25

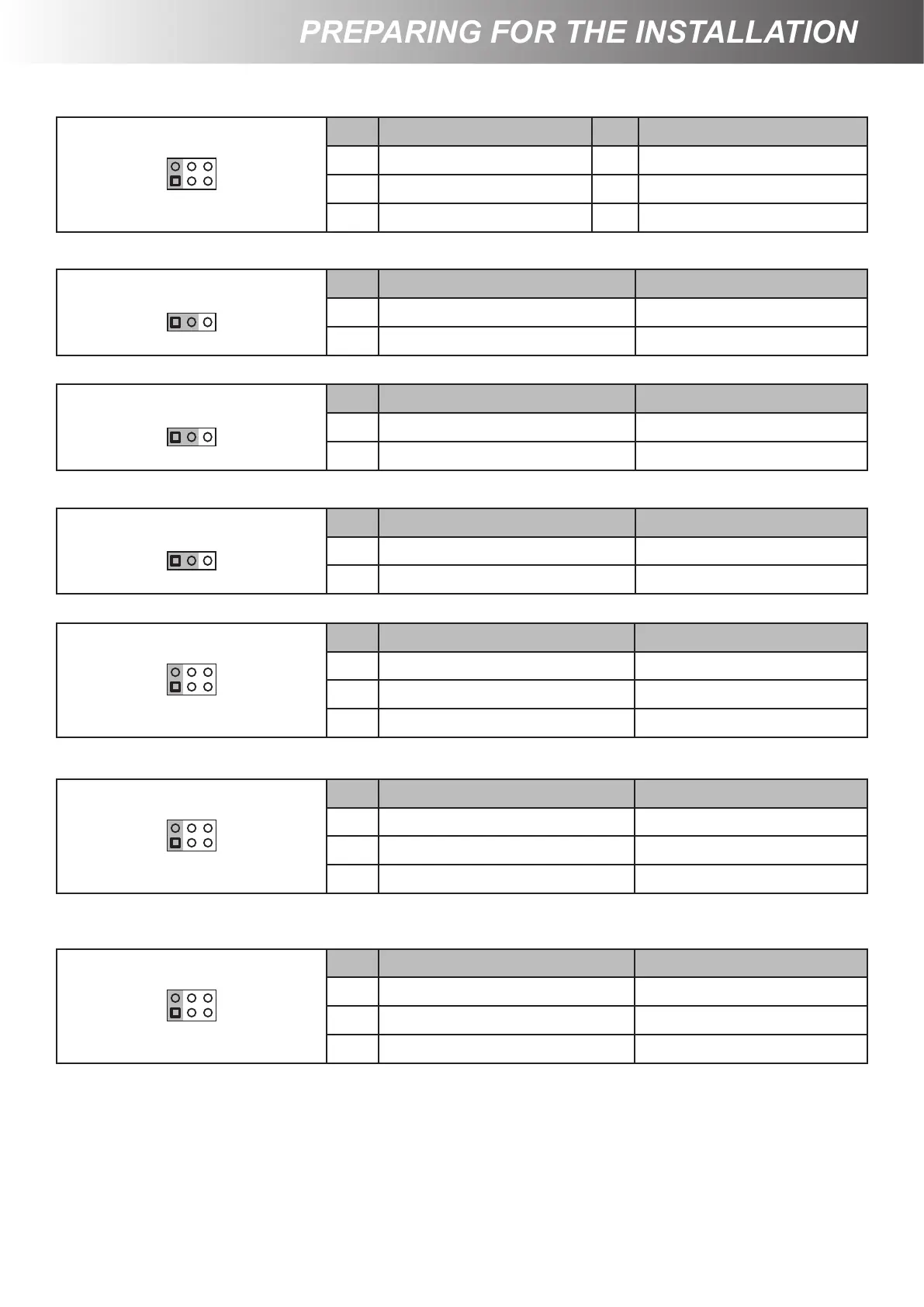

PREPARING FOR THE INSTALLATION
25
JP1: SPI BIOS Flash
246
135
Pin Denition Pin Denition
1 VCC_SPI 2 GND
3 SPICS 4 SPICLC
5 SPISO 6 SPISI
JP2: LCD Panel Voltage Select
123
Pin Denition Denition
1-2 3.3V 1-2
2-3 5V
JP3: Clear CMOS
123
Pin Denition Denition
1-2 Normal 1-2
2-3 Clear CMOS
JP4: Cash Drawer Voltage Select
123
Pin Denition Denition
1-2 24V 1-2
2-3 12V
JP5: COM 1 Port Voltage Select
246
135
Pin Denition Denition
1-2 0V/RI 1-2
3-4 5V
5-6 12V
JP6: COM 2 Port Voltage Select
246
135
Pin Denition Denition
1-2 0V/RI 1-2
3-4 5V
5-6 12V
JP7: COM 3 Port Voltage Select
246
135
Pin Denition Denition
1-2 0V/RI 1-2
3-4 5V
5-6 12V
