PREPARING FOR THE INSTALLATION
PREPARING FOR THE INSTALLATION
S-715W

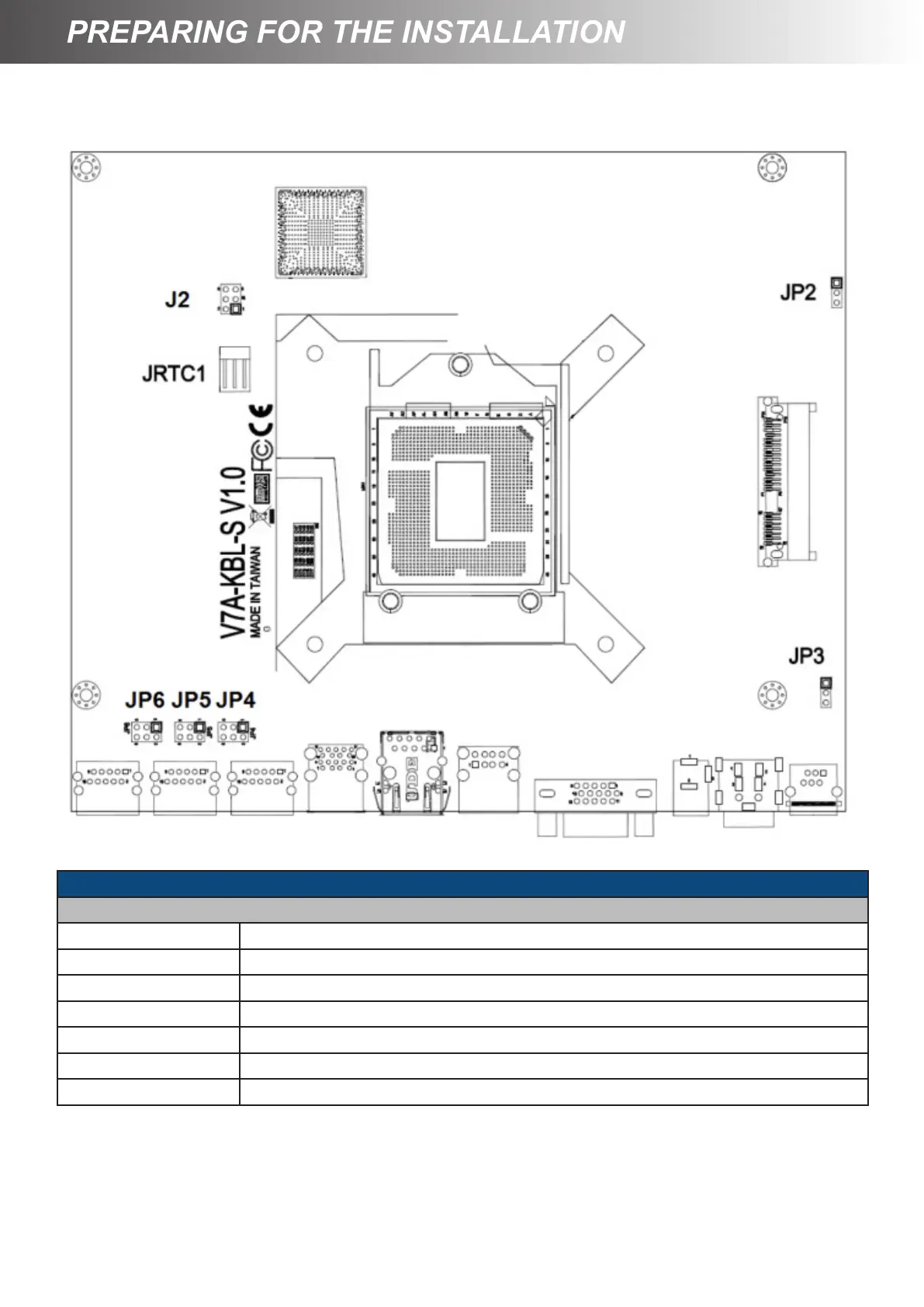

PIN Header / Jumper List
Item Connector Denition
J2 SPI BIOS Flash
JRTC1 Clear CMOS
JP2 LCD Panel Voltage Select
JP3 Cash Drawer Voltage Select
JP4 COM 1 Port Voltage Select
JP5 COM 2 Port Voltage Select
JP6 COM 3 Port Voltage Select
