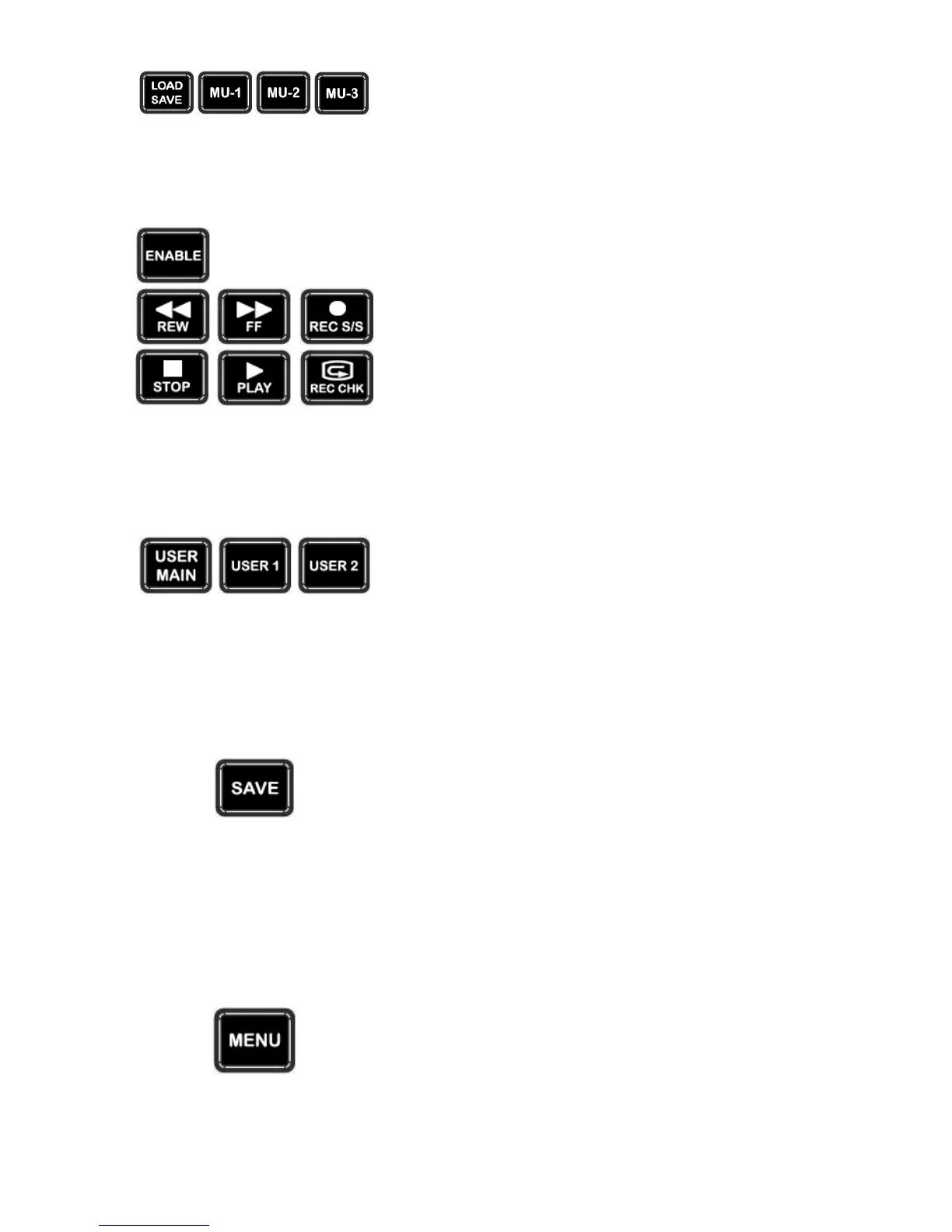

Using the LOAD SAVE button it is possible to transfer the
current setting from one camera to another.
MU-1, MU-2 and MU-3 can be used to store settings within
the MCU-100P.
Recorder / Playback functions
ENABLE when selected activates the recorder / playback
functions of the chosen camera. This include
[REW], fast forward [FF], record start/stop [REC S/S], stop,
play and record check [REC CHK].
REC CHK makes it possible to check what has just been
recorded (2 seconds REC review) by pressing this button
during REC pause.
With a DVCPRO HD camera
recorder, the tape is cued to
provide continuity from one shot to the next when this
button is pressed while playback is paused.
User defined functions from the Camera
These buttons match the user defined functions of the
USER MAIN, USER1 and USER2 bu
ttons on the chosen
camera. Operation will follow the function that was
assigned by the user in the chosen cameras OSD menu.
NOTE: USER 2 buttons will work as a thumbnail ON switch
for the AG-HP255 and AG-HPX371. MENU button is back lit
orange at this time.
Data save – save defined functions from the camera
When this function is enabled, the button is back lit orange
and the MCU-100P
settings are stored into the chosen
camera.
If this function is disabled - the button is back lit green; any
chosen MCU-100P settings will not be stored in the chosen
camera. The current camera/MCU-100P
reset to defaults when the power of the unit or the camera
is turned off.
When this function is enabled, the button is back lit orange
and the OSD menu is shown on the LCD panel/view finder
of the camera. This OSD menu may also be shown on the
AD-1P’s composite output (if supported).
