User defined functions from the Camera

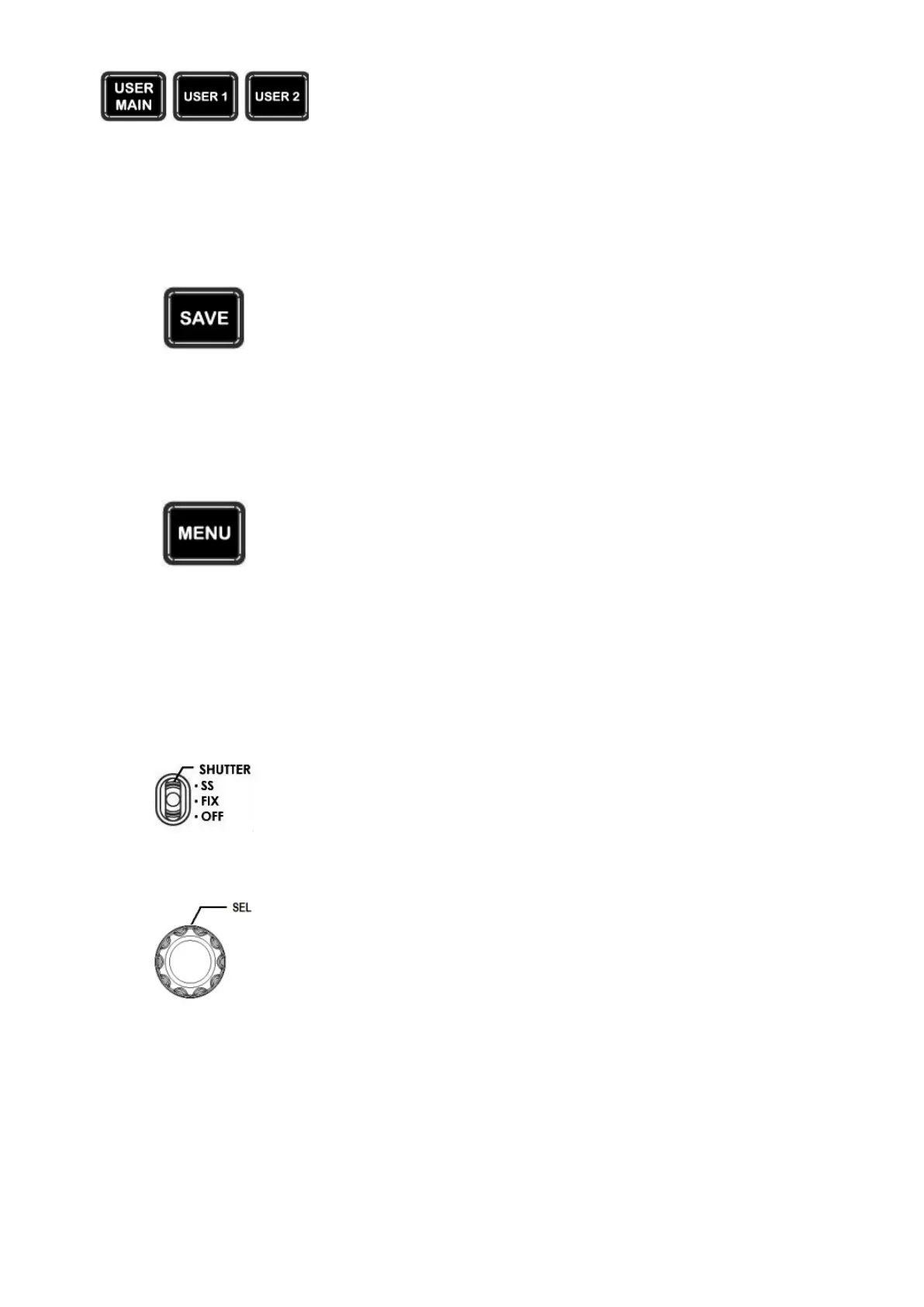

These buttons match the user defined functions of the USER MAIN,
1, 2, buttons on the chosen camera. Operation wi
function that was assigned by the user in the chosen cameras OSD
menu.
NOTE: USER 2 buttons will work as a thumbnail ON switch for the
AG-HP255 and AG-HPX371. MENU button is back lit orange at this
time.
Data save (save defined functions from the Camera)
When this function is enabled, the button is back lit orange and the
MCU-200P settings are stored into the chosen camera.
If this function is disabled - the button is back lit green; any chosen
MCU-200P settings will not be stored in the chosen camera. The
current camera/MCU-200P settings will be reset to defaults when
the power of the unit or the camera is turned off.
When this function is enabled, the button is back lit orange and the
OSD menu is shown on the LCD panel/view finder of the camera.
This OSD menu may also be shown on the AD-
output [if supported].
Some camera models also allow this OSD menu to be displayed on
the SDI or HDMI output of the chosen camera. Refer to your
cameras manual for more details on its OSD Menu outputs and
change settings where necessary.
To change operation of the shutter.
OFF : To turn off the shutter operation.
FIX : To turn on fixed shutter mode.
SS : To turn on synchro scan mode.
The select dial is used for two functions, to navigate the menus or
to control the shutter speed.
When the MENU button is active and back lit orange. The select
dial is turned to navigate through the camera’s menu options.
Pressing in the same dial, like
a button, confirms the current
selection or value shown.
When the MENU button is NOT
active and back lit green. The
select dial can be turned to adjust the SHUTTER
camera.
To Next Page
