2. Connections and Controls

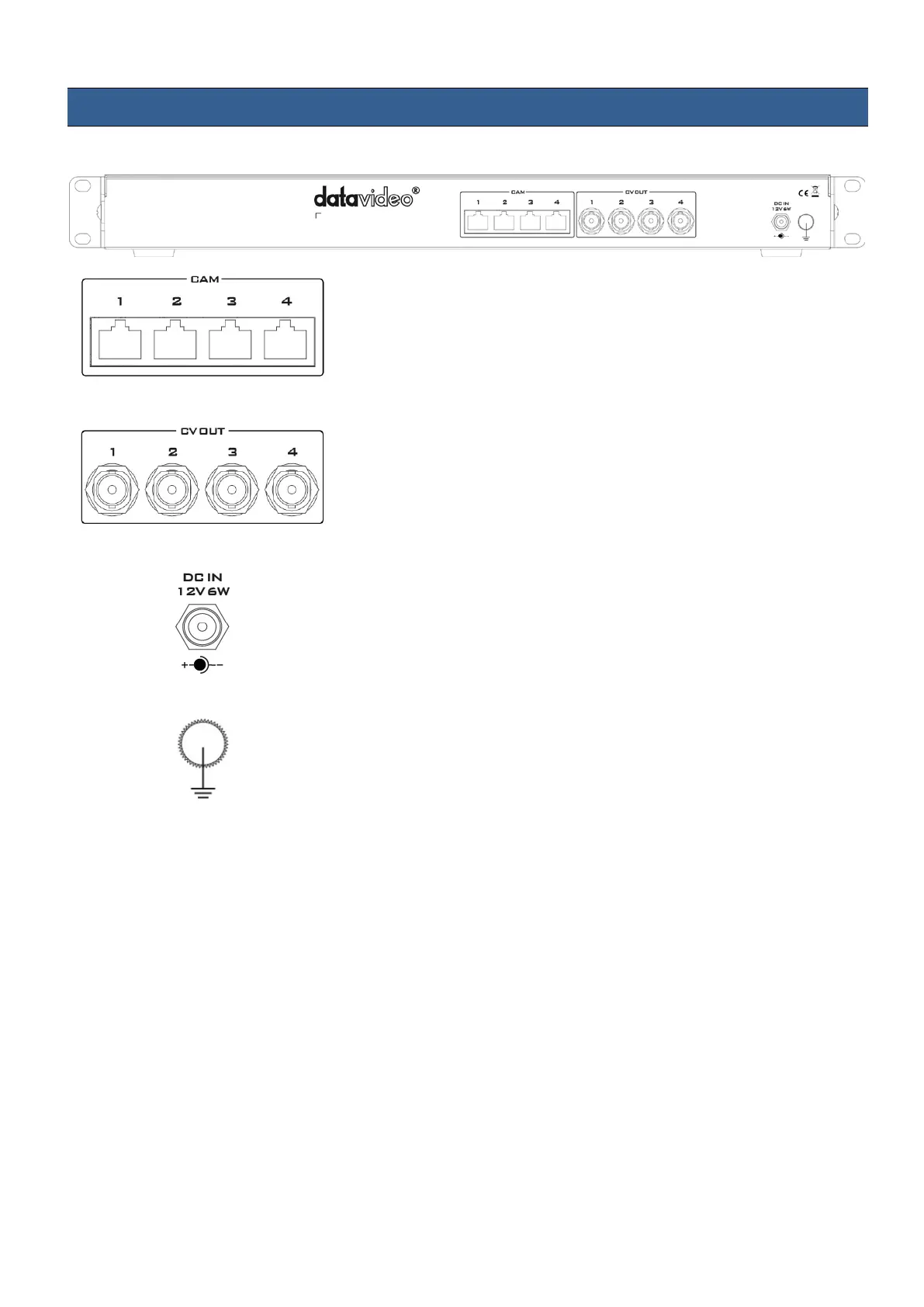

2.1 Rear View
Four RJ-45 ports allow remote control of up to four Panasonic
cameras.
The CV ports are used for confidence monitoring and in some cases
they can be used to view the camera’s OSD menu.
Connects the supplied 12V PSU to this socket. The connection can
be secured by screwing the outer fastening ring of the DC In plug to
the socket.
When connecting this unit to any other component, make sure that
it is properly grounded by connecting this terminal to an
appropriate point. When connecting, use the socket and be sure to
use wire with a cross-sectional area of at least 1.0 mm
2
.
Adapter Box (AD-1P)
The adapter box acts as an interface between the MCU-200P and Panasonic cameras or camcorders. One
side of the box connects to the MCU-200P via an Ethernet cable and the other side connects to
Panasonic cameras or camcorders via a Panasonic CAM/BS cable. Users are allowed to use an Ethernet
cable that runs 300 meters to connect the MCU-200P to this adapter box which in turn connects a
Panasonic camera.
The CV output connects the monitor which will display the camcorder settings.
