12

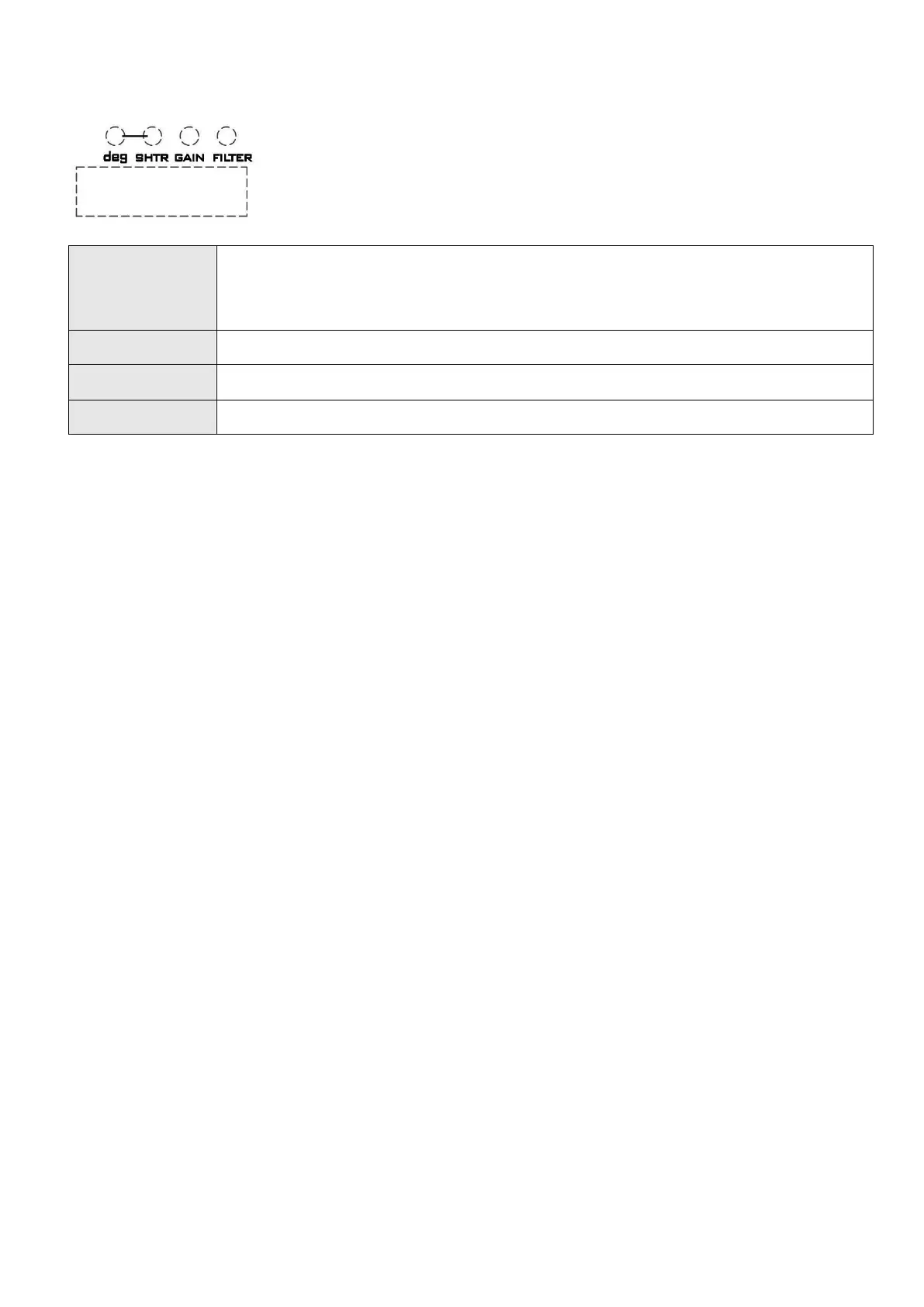

Seven Segment Display and LED Indicators
Deg Indicator
To indicate the displayed format of SHUTTER value.
ON: Shutter angle is displayed.
OFF: Shutter speed is displayed.
SHTR Indicator This lights up when LED display shows SHUTTER (speed) value.
GAIN Indicator This lights up when LED display shows GAIN value (in dB).
FILTER Indicator This lights up when LED display shows ND FILTER mode (F1~F5).
Operation Modes – LOCK and NORMAL
There are two modes of operation on the MCU-200P.
1. NORMAL: This is always active when the unit is first turned on. Under this mode all functions are
available. Buttons not back lit indicate functions that are currently not in use. The user may activate
these functions via an associated ENABLE button.
2. LOCK: This mode is activated by pressing and holding down the CHECK button for two seconds. When
in LOCK mode all functions are unavailable except for the 4 Camera selection buttons and the CHECK
function. This is to prevent unauthorized or unintended operation during a LIVE production. The
seven segment LED display will also show Lock.
Iris controls can be quickly accessed in LOCK mode by pressing down on the IRIS Dial once; press the dial
again to return to full lock mode. When the Iris function is accessed in this way, if the MCU-200P unit is
left idle for 3 seconds or more then the unit will automatically return to full LOCK mode.
The LOCK mode can be deactivated by pressing and holding down the CHECK button for two seconds.
