Datavideo TLM-170F User Manual

11
Headphone Jack
Once the 3.5mm headphone jack is connected, the internal
speaker will be automatically muted.

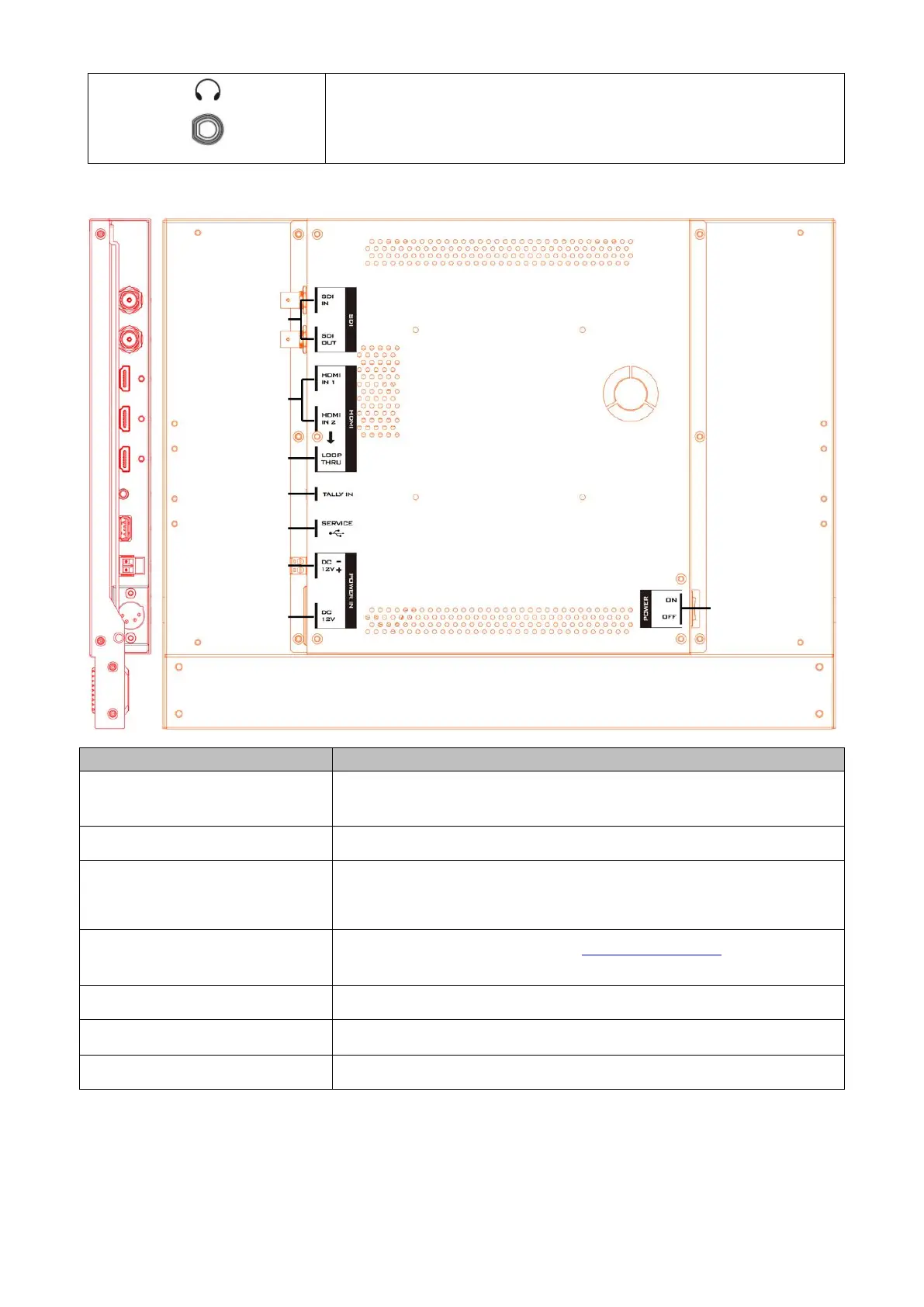

Rear Panel
Ports
Descriptions
3.5mm Tally Light Input
Tally light input. The tip, ring and sleeve of the phone jack should
be connected to tally red, tally green and the ground.
Loop Thru Output
A loop thru output of SDI and HDMI inputs.
HDMI Input 1/2
Connect HDMI video and audio source devices.
HDMI 1: YUV420 not supported
HDMI 2: YUV420 supported
USB 2.0 Port (SERVICE)
For firmware upgrade only; see Firmware Update for more
information about firmware upgrade.
SDI Input / Output
1 SDI input/output pair
DC IN 12V
12 V power input (XLR/Phoenix Terminal)
Power ON/OFF Switch
TLM-170F’s main power ON/OFF switch
SDI Input / Output
HDMI Input 1 / 2
USB Port
DC IN 12V
(XLR)
3.5mm Tally light
input socket
ON/OFF Switch
Loop Thru Output
DC IN 12V
(Phoenix)
