1. Introduction
The TLM-170F offers a FHD 1920 x 1080 LCD Panel which provides a wide viewing angle of 178°,
300 cd/m² brightness, and 700:1 contrast ratio. It features a 12G SDI input and two HDMI 2.0
inputs with one loop through output allowing connection of up to DCI 4K and Ultra HD video
sources.
The TLM-170F is equipped with various functions such as waveform, vector scope, false color filter,
histogram, peaking filter, zoom, screen markers, etc. The TLM-170F has two HDR transfer functions
which are HLG and SMPTE 2084. The color space includes options such as Rec 709 and DCI P3
Cinema. The TLM -170K is designed specifically for broadcast and field production applications.
Features
 DCI 4K/60p and UHD 4K/60p videos for both input and output
 17” monitor with FHD (1920 x 1080) LCD display
 Supports column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking
filter, zoom, pix to pix, overscan, check field, etc
 12G-SDI video input with loop-through output
 HDMI 4K input with loop-through output
 Time Code Display (LTC/VITC)
 Four user-assignable function keys (F1, F2, F3, and F4)
 Safety Marker and Aspect Marker
 700:1 contrast ratio, 300 cd/m² brightness
 178° Horizontal & Vertical wide viewing angle
 Individual adjustments of Brightness, Contrast, and Saturation.
 Color Match Conversion with Color Temperature Adjustment
 Front panel Headphone Jacks
 Tally light included.

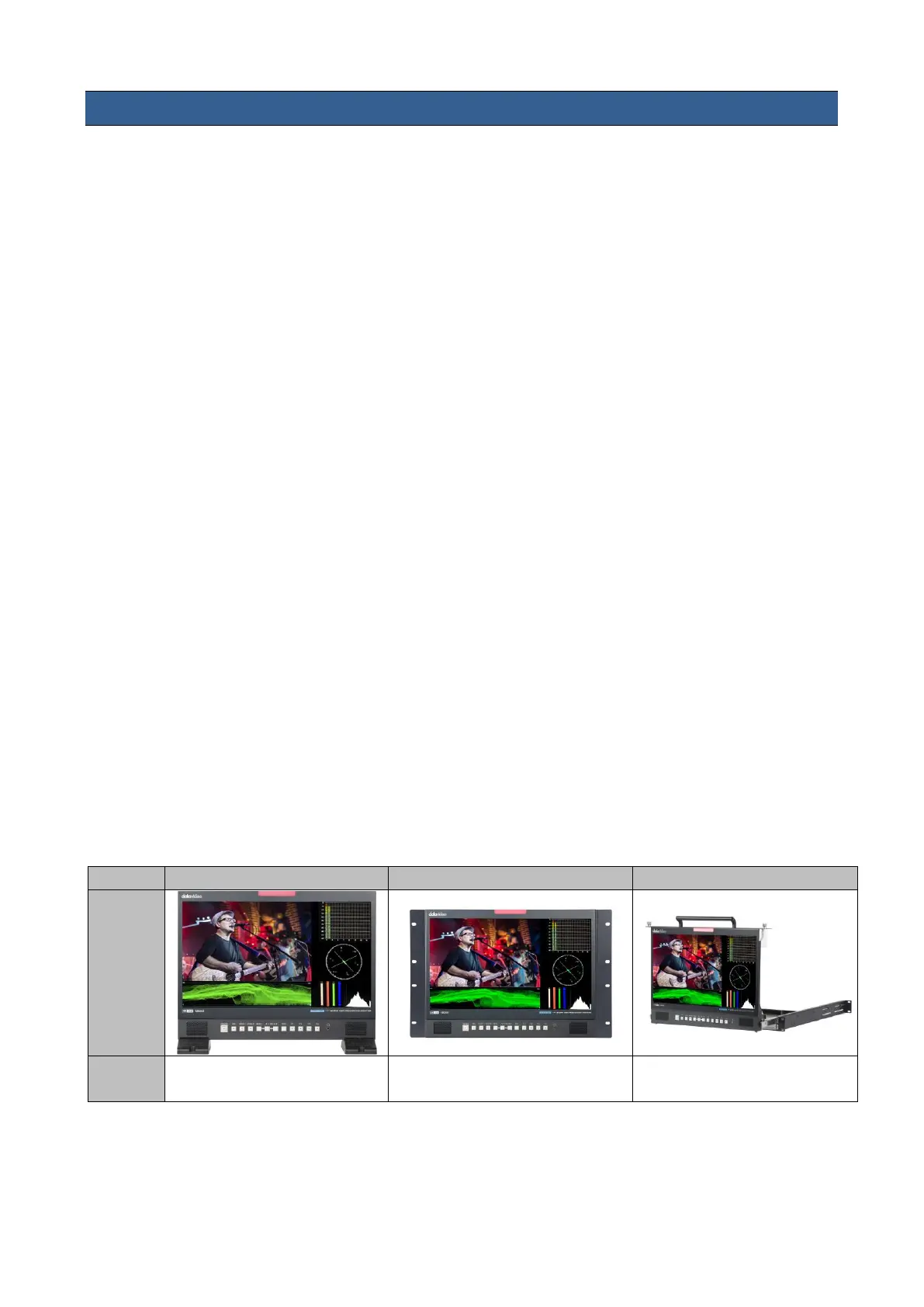

Model Types
Model
TLM-170F
TLM-170FR
TLM-170FM
System
Desktop
7U Rack Mount
1U Mobile Tray Rack
Mount

Datavideo TLM-170F Specifications

General

Brand	Datavideo
Model	TLM-170F
Category	Monitor
Language	English
