Datavideo TLM-170F User Manual

9

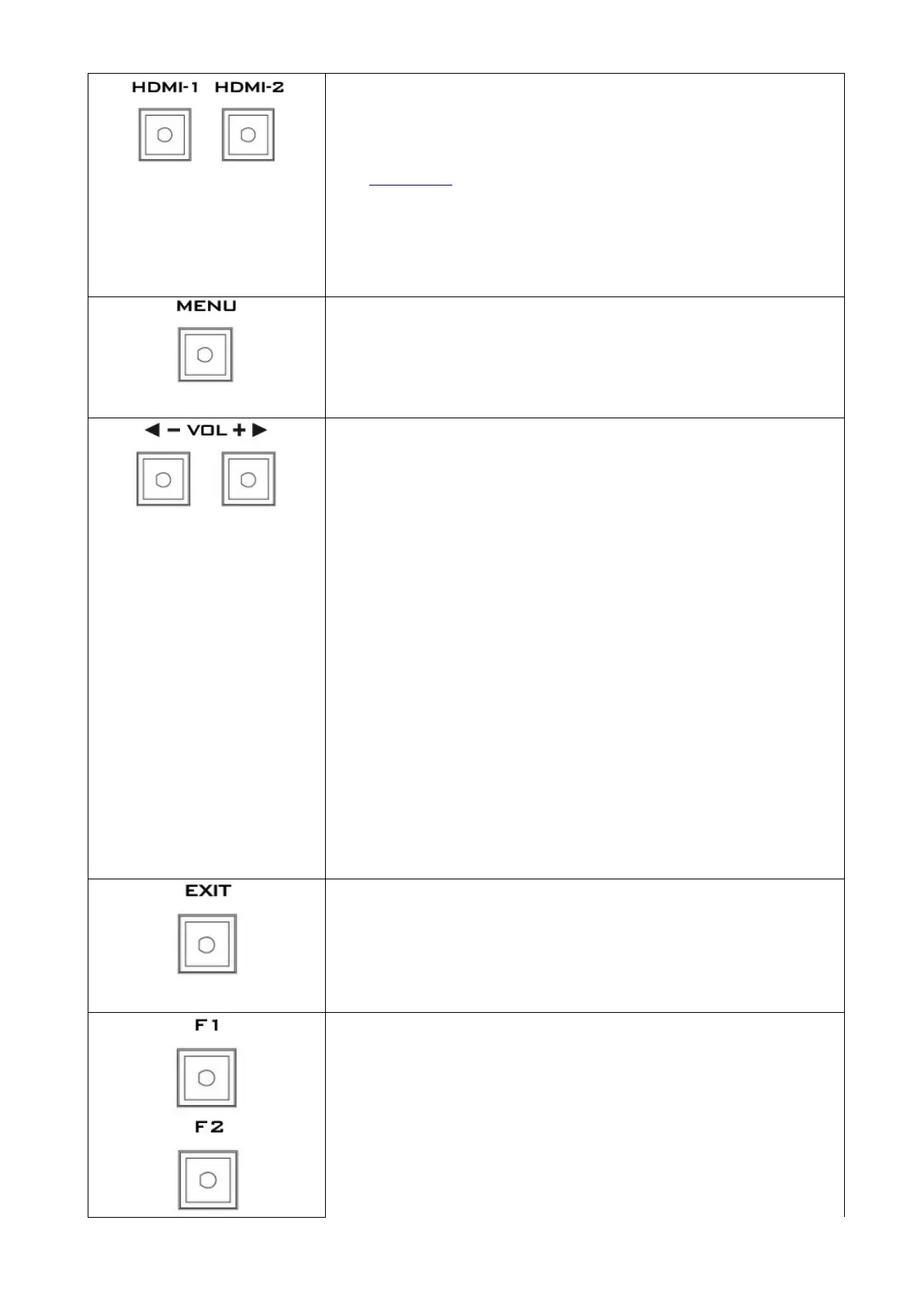

HDMI 1/2 Button
Press once to enable the HDMI video source on the monitor
screen. Please note that the two video sources cannot be
enabled at the same time. You can connect the loop thru port
(see Rear Panel) to a monitor to view the activated input video
source.
As the HDMI video source is activated, the corresponding button
LED will be turned ON.
MENU Button
Press the MENU button to open the OSD menu. Once in the OSD
menu, press the MENU button to make a selection.
Audio Volume Adjustment Buttons
Once in the OSD menu, navigate the menu or increase/decrease
parameter values using the audio volume adjustment buttons.
While NOT in the OSD menu, pressing either one of the audio
volume adjustment buttons will open a Volume slide bar at the
bottom of the screen. Then press the MENU button to switch to
other setting options as listed below:
 Volume
 Brightness
 Contrast
 Saturation
 Tint
 Sharpness
 Exit
To adjust the parameter values, simply press the Vol- arrow
button to decrease the value and the Vol+ arrow button to
increase the value.
EXIT Button
Return/Exit button
F1 – F4 Shortcut Keys
Press the F1-F4 shortcut keys to access the corresponding
function setting menus. The default function setting menus are
shown as follows:
F1: Scan
F2: Waveform
F3: Aspect
F4: Aspect Marker

Datavideo TLM-170F Specifications

General

Brand	Datavideo
Model	TLM-170F
Category	Monitor
Language	English
