7.3 Using a switch to override DynaDrive operation
DynaDrive has the ability to be overridden by a separate switch. This may be of benefit if using a float switch

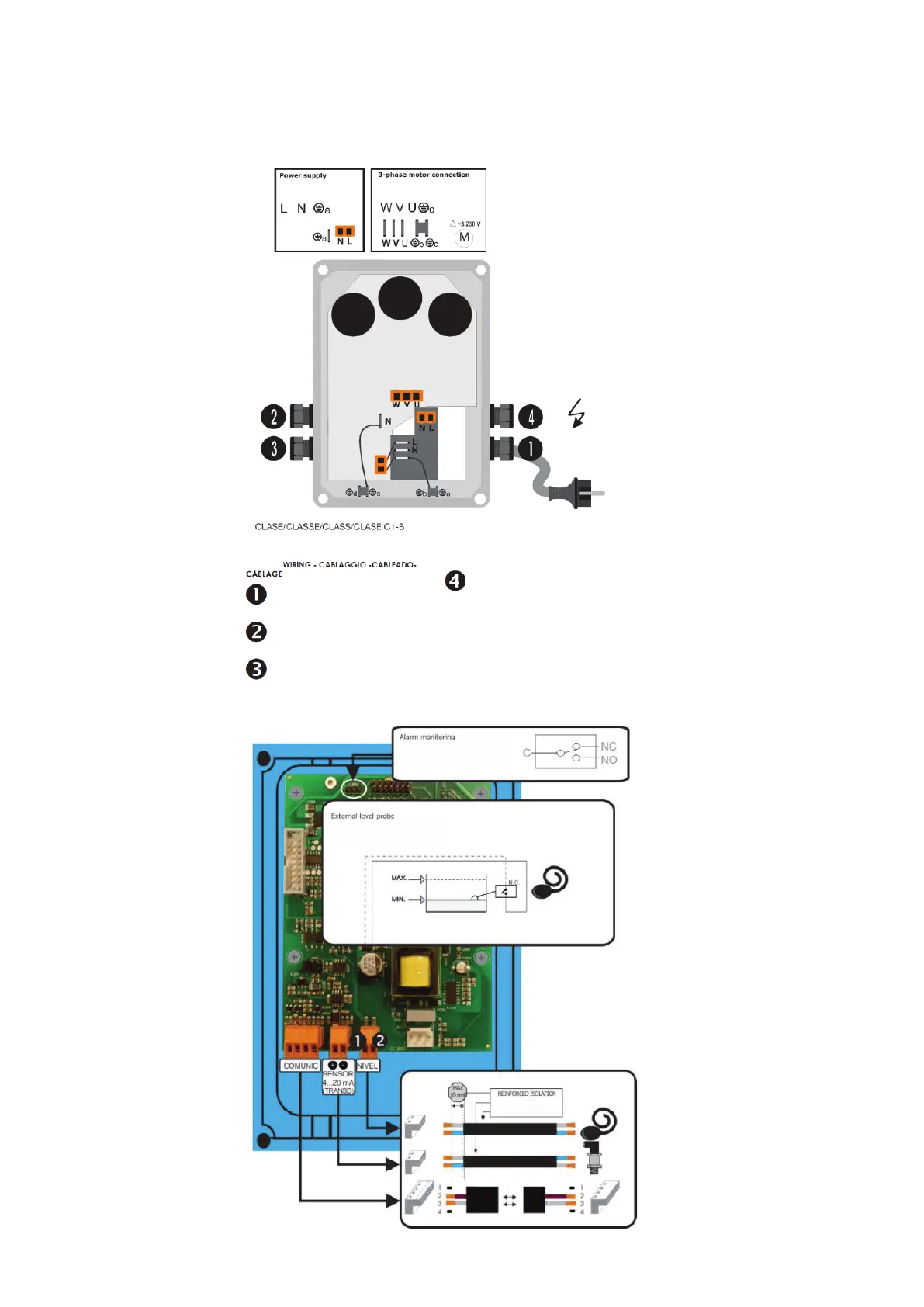

on a source tank (eg rainwater tank). To wire in an independent switch, refer figure 7.5 and 7.6.
Figure 7.5
Power supply
Pressure transmitter
Pump connection single-phase pumps
O- Lead & Lag communications cable
Minimal level (optional)
For model DD15-35NPT
~1 110V or all other
models ~1 230V
Figure 7.6
Alarm monitoring option
- see section 7.5
