12. SPARE PARTS
DynaDrive 6 stages DD60-10NPT
DynaDrive 5 stages DD90-11NPT
Notes: A. 2nd Stage body comes with air valve assy which can be retro tted onto models without the air valve. Subsequent stage bodies have
the air hole which can also be retro tted onto models that do not have the air valve already  tted.
B. Washer cup part number 13666 - quantity of 1 required for DD60 & DD90 models ( tted to drive end side only).
ITEM NOTES DESCRIPTION
QTY
REQ’D PART NO.
1 Casing - Front DD60-10(CE), DD90-11(CE) 1 13656-6SP
1 Casing - Front DD60-10NPT, DD90-11NPT 1 13656-6USA
2 Plug & O-ring - 1/4” BSP Vertical 3 400577SP
3 O-ring - Casing 1 44853
4 Stage body - 1st stage 1 13661-1
5 Screw - Casing (pk8) 1 S34M0616*8
6 Nut - Casing 6mm s/s 1 N33M10*6
6 Nut - Half 1 401573
7 Impeller DD60 series As required 13678
7 Impeller DD90 series As required 13676
8 Spacer - Impeller As required 13665
9 A Stage Body - 2nd stage with valve assy 1 32912
10 Stage body - Inner stages As required 13662-2
11 Stage body - Final 1 13663
12 Spacer - Destage 1 13696-1
13 B Washer - Cup As required 13666
14 Clip spring 2 13667
15 Seal - Mechanical 1 400558SP
16 Backplate 1 13660
18 Outlet Assembly DD60-10(CE), DD90-11(CE) 1 33080
18 Outlet Assembly DD60-10NPT, DD90-11NPT 1 33080NPT
19 8L NPT Pressure Tank DD60-10NPT, DD90-11NPT 1 33076NPT
19 8L pressure tank DD60-10(CE), DD90-11(CE) 1 24008P
20 Fan cowl DD60-10(CE), DD90-11(CE) 1 11150-40M
20 Fan cowl DD60-10NPT, DD90-11NPT 1 11150-40MNPT
21 VSD adaptor 1 16098
22 Pressure transducer & loom 1 RECH092SP
23 O-ring to suit adaptor VSD 1 402442
24 DynaDrive power module DD60-10(CE), DD90-11(CE) 1 RECH092345SP
24 DynaDrive power module DD60-10NPT, DD90-11NPT 1 RECH102
25 DynaDrive control module DD60-10(CE), DD90-11(CE) 1 RECH091SP
25 DynaDrive control module DD60-10NPT, DD90-11NPT 1 RECH103
- Slinger - Water 1 13648
SP0012-3/1022
16
19
18
14
11109
8
8
8
6
5
7 7 7
12
15
13 20
21
22
23
24
25
4
3
2
1

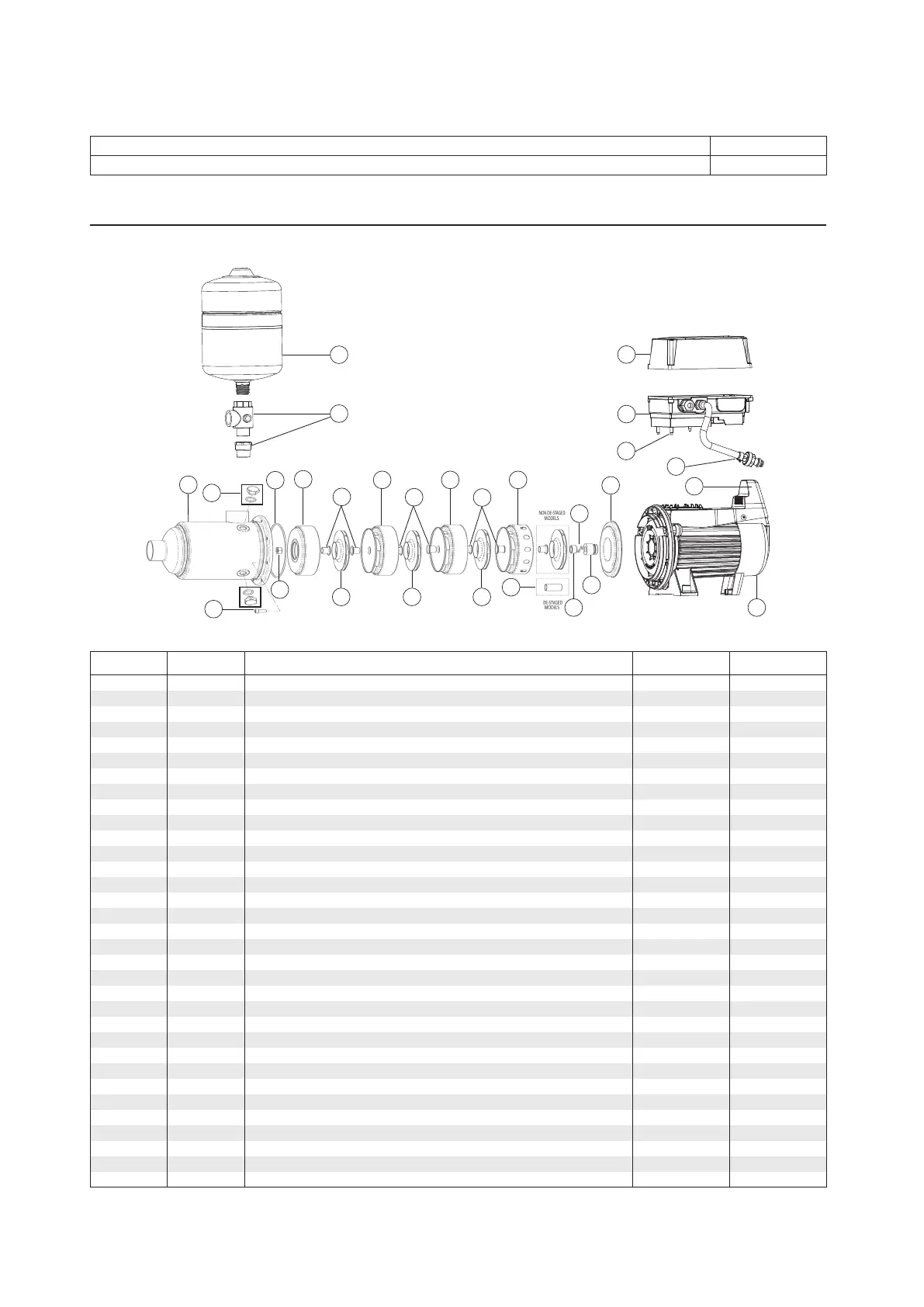

Figure 12.1
