The display then reverts to the HOME SCREEN, see figure 6.2. The
Power LED will show bright green.
The display shows the pre-set pressure on the top line, shown in Figure 6.2, and pressure being measured
by the DynaDrive pressure transducer on the bottom line, shown in Figure 6.2.
The default unit of measurement is as follows:
* DD60-10(CE): kPa;
* DD90-11(CE): kPa;
* DD60-10NPT: psi; or
* DD90-11NPT: psi.
Figure 6.2
P/ N :16115 -1 B
Pset 400
Pact 0

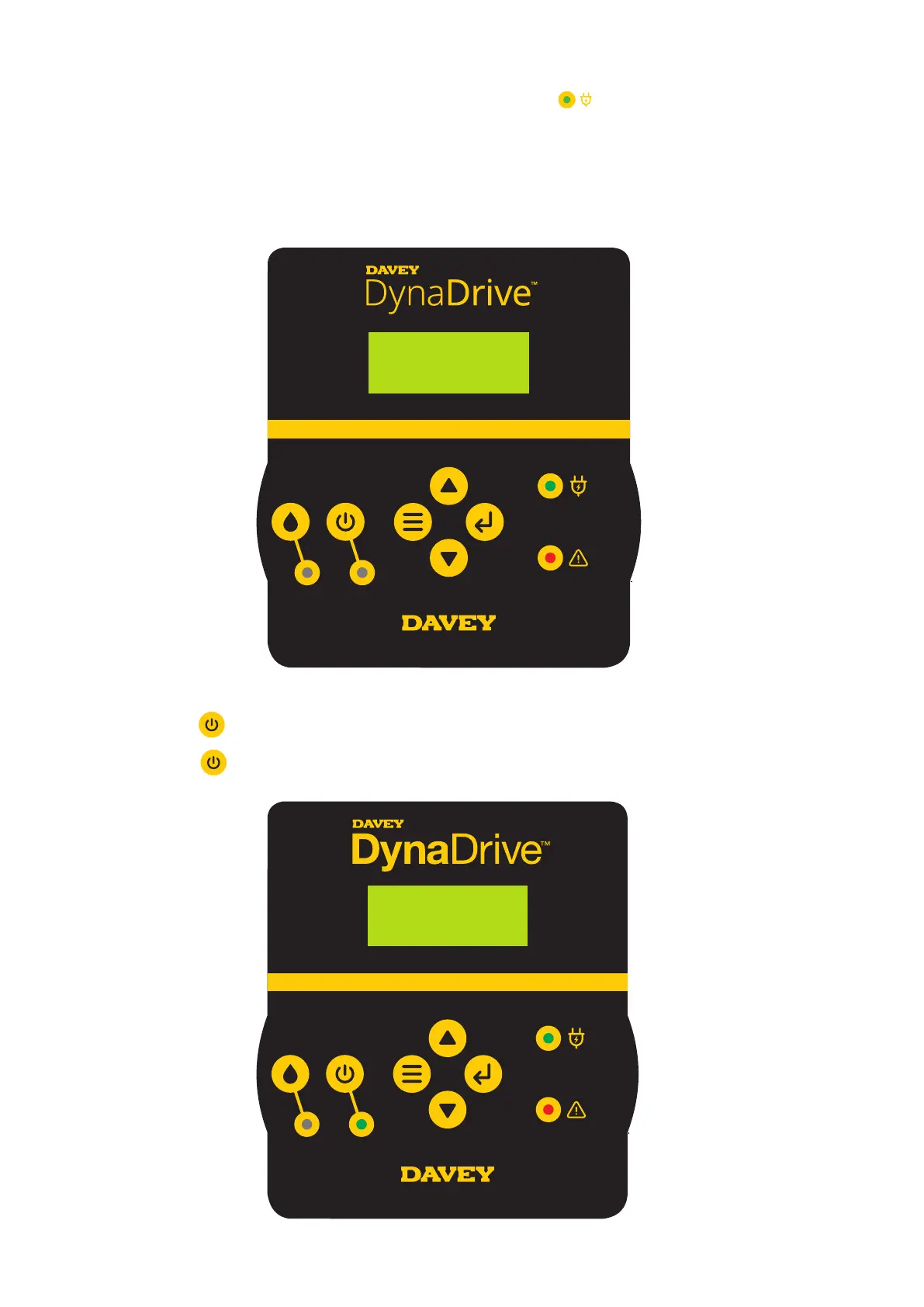

To start the DynaDrive:
• Pushing the
Automatic on / manual off button toggles between automated control and manual off;
• Pushing the
Automatic on / manual off button will turn on the pump and it will continue to pump
water until set pressure is achieved, see figure 6.3;
Figure 6.3
P/ N :16115 -1 B
Pset 400
Pact 400
