Davey DynaDrive DD60-10

3
CAUTION: This pump has been evaluated for use with water only. Do not insert any object
in the opening. Before using this pump, the pump must be well installed. Children should
be supervised that they do not play with the pump. NPT model variants acceptable for
indoor use only, do not used outdoor. For use with maximum 80°C (176°F) water.
WARNING: Risk of electric shock. This pump is supplied with a grounding conductor
and grounding-type attachment plug. To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type receptacle. Non-
submersible pump. This pump has not been investigated for use in swimming pool or
marine areas. To reduce risk of electric shock, pull plug before servicing or cleaning
this pump. Do not operate this pump with wet hands.
ATTENTION: The DynaDrive system and associated pipework operate under pressure.
Under no circumstances should the DynaDrive system, or associated pipework be
disassembled unless the internal pressure of the system has been relieved. Failure to
observe this warning will expose persons to the possibility of personal injury and may
also result in damage to the pump, pipework or other property.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance. This appliance can be used by children from aged 8
years and above and persons with reduced physical sensory, mental capabilities, or
lack of experience and knowledge if they have been given supervision, or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
Maximum pressure limited to 64m (210 feet) total head.
IMPORTANT: If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualied persons in order to avoid a hazard. Pump is to
be supplied through a residual current device (RCD) having a rated residual operating
current not exceeding 30mA. Cleaning and user maintenance shall not be made by
children without supervision. Children shall not play with the appliance.
Prior to installation remove the inlet and outlet pipe transport plugs & associated seals from the suction
and/or discharge ports.
1. PRIOR TO USING THIS PRESSURE SYSTEM, YOU MUST ENSURE THAT
• The pump is installed in a safe and dry environment
• The pump enclosure has adequate drainage in the event of leakage
• Any transport plugs are removed
• The pipework is correctly sealed and supported
• The pump is primed correctly
• The power supply is correctly connected
• All steps have been taken for safe operation
Appropriate details for all these items are contained in the following Installation and Operating Instructions.
Read these in their entirety before switching on this pump. If you are uncertain as to any of these Installation
and Operating Instructions, please contact your Davey dealer, or the appropriate Davey office as listed on
the back of this document.

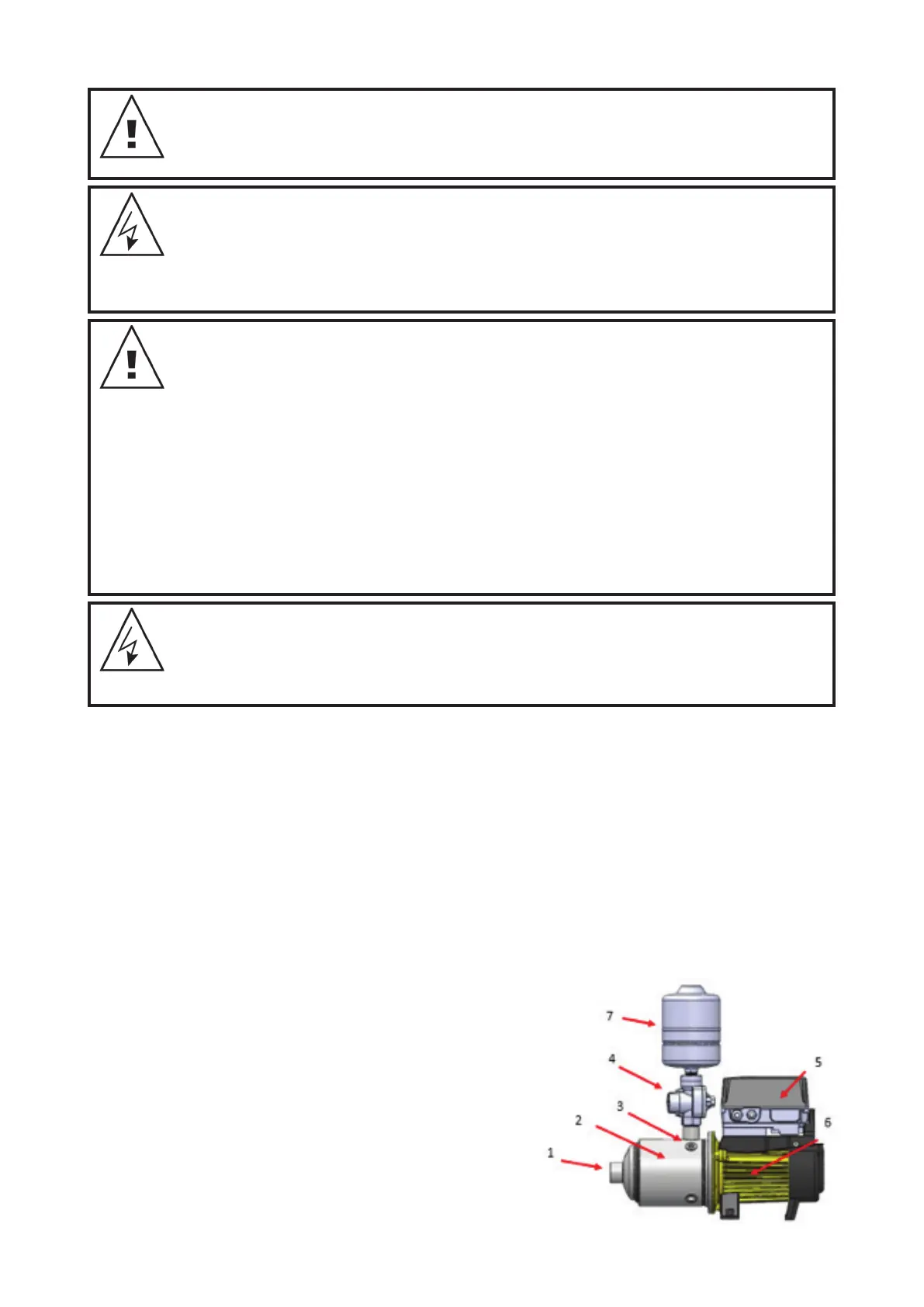

2. YOUR NEW SYSTEM
1. Suction inlet
2. Pump body
3. Pump priming plug
4. Discharge/delivery outlet
5. DynaDrive control module
6. Motor
7. Pressure tank
(optional extra for CE model variants)
Figure 2.1
DD60-10, DD90-11
