12. SPARE PARTS
DynaDrive 6 stages
DD60-10(CE) DD60-10NPT
DynaDrive 5 stages
DD90-11(CE) DD90-11NPT
Notes: A. 2nd Stage body comes with air valve assy which can be retrotted onto models without the air valve. Subsequent stage
bodies have the air hole which can also be retrotted onto models that do not have the air valve already tted.
B. Washer cup part number 13666 - quantity of 1 required for HM60 & HM90 models (tted to drive end side only).
C. Tank is optional extra for CE and NPT model variants

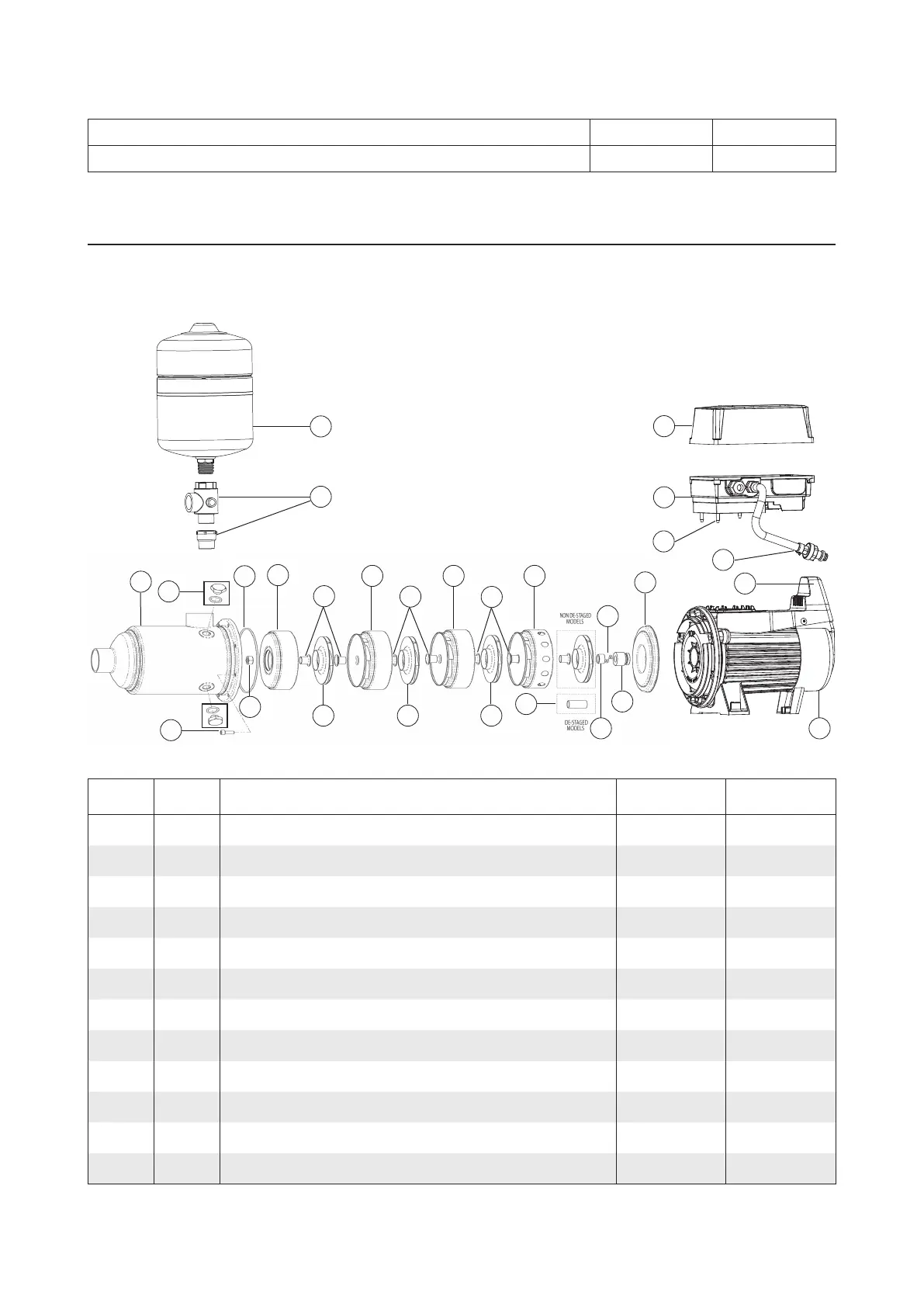

Figure 11.1
16
19
18
14
11109
8
8
8
6
5
7 7 7
12
15
13 20
21
22
23
24
25
4
3
2
1
ITEM NOTES DESCRIPTION
QTY
REQ’D PART NO.
1 Casing - Front DD60-10(CE), DD90-11(CE) 1 13656-6SP
1 Casing - Front DD60-10NPT, DD90-11NPT 1 13656-6USA
2 Plug & O-ring - 1/4” BSP Vertical 3 400577SP
3 O-ring - Casing 1 44853
4 Stage body - 1st stage 1 13661-1
5 Screw - Casing (pk8) 1 S34M0616*8
6 Nut - Casing 6mm s/s 1 N33M10*6
6 Nut - Half 1 401573
7 Impeller DD60 series As required 13678
7 Impeller DD90 series As required 13676
8 Spacer - Impeller As required 13665
9 A Stage Body - 2nd stage with valve assy 1 32912
Cont. overleaf...
