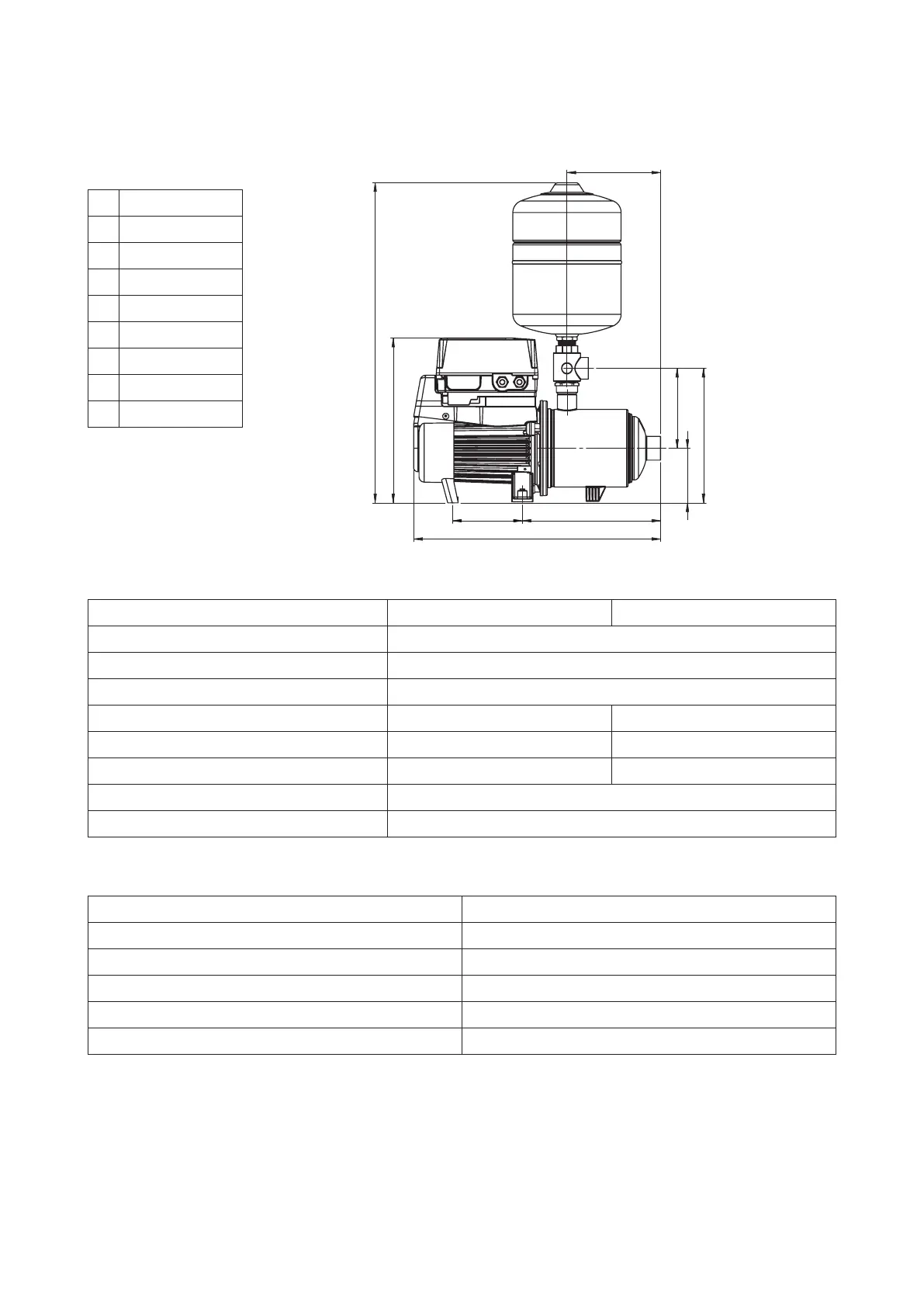

8.3 Dimensions
DD60-10
DD90-11
A 175mm (6
7
/
8
")
B 598mm (23
1
/
2
")
C 307mm (12")
D 149mm (5
7
/
8
")
E 102mm (4")
F 251mm (9
7
/
8
")
G 130mm (5
1
/
8
")
H 258mm (10
1
/
8
")
I 461mm (18
1
/
8
")
8.4 Electrical data
DD60-10(CE/NPT) DD90-11 (CE/NPT)
Voltage 220 – 240V ~
Max motor speed 2,900rpm
Frequency (incoming power) 50 – 60Hz
Input power (P
1
) 1.1kW 1.3kW
Output power (P
2
) 0.8kW 0.9kW
Running current 7.4A 8.6A
Insulation class F
IP rating 55
8.5 Materials of construction
PART MATERIAL
Casing 304 stainless steel
Impellers 304 stainless steel
Stages (casing) 304 stainless steel
Pump shaft 316 stainless steel
Stage centring device 304 stainless steel
I
C B
E F
D
A
H G
Figure 8.4
