18. SPARE PARTS

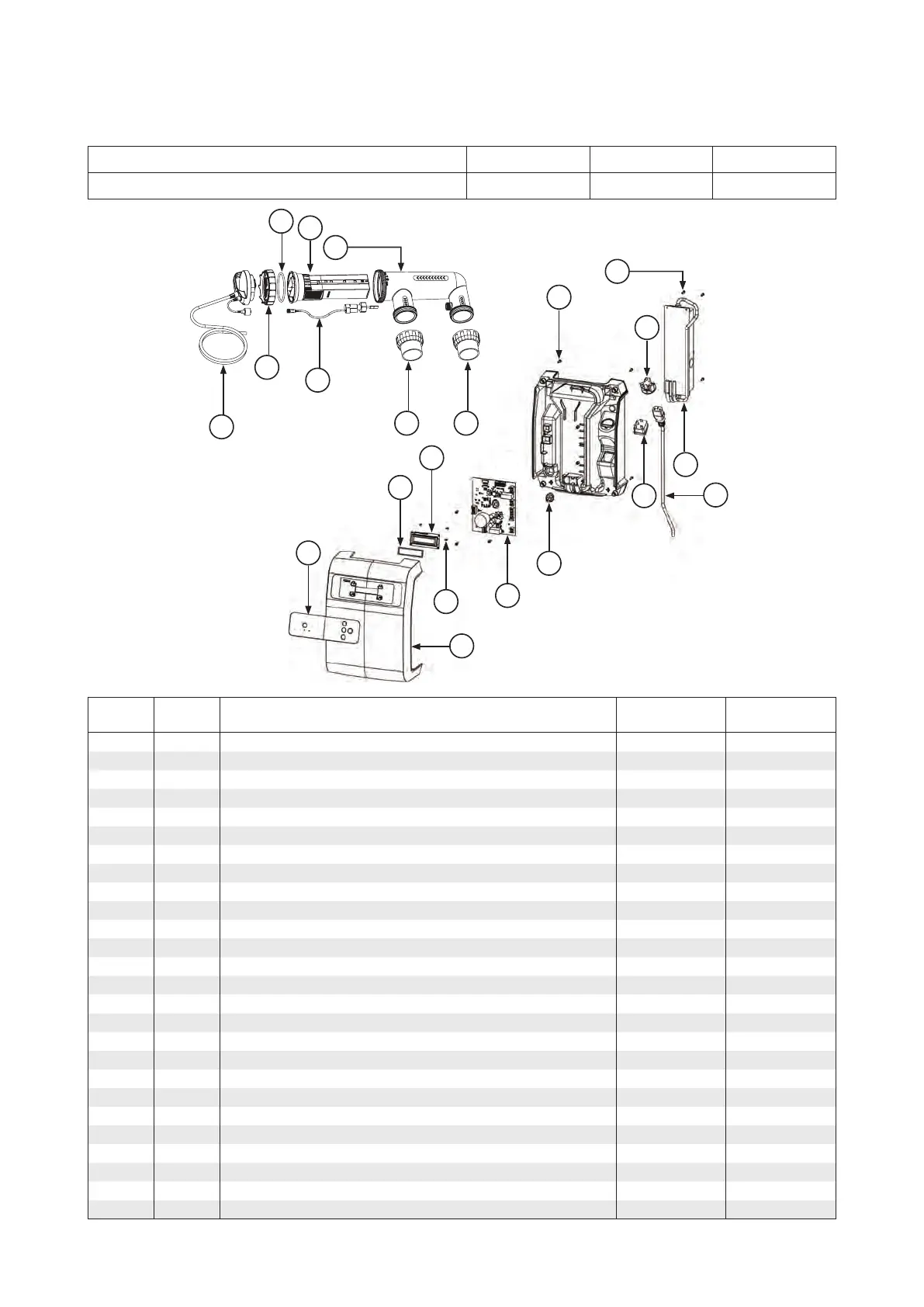

18.1 SPARE PARTS EXPLODED DIAGRAM
ChloroMatic Nipper Chlorinator
DNP15C DNP25C DNP35C
ChloroMatic Nipper Chlorinator Low Salt
DNP15CLS DNP25CLS
9
7
12
15
16
18
19
11
8
7
17
14
13
10
3
1
2
4
5 5
6
ITEM NOTES DESCRIPTION
QTY
REQ’D PART NO.
1 Cell Connection Plug Assy 1 33021
2 Cell Locking Ring 1 16058
3 O-ring - Cell Head 1 403377
4 Paddle Switch 1 16102-1
5 Barrel Union Assembly 2 48722B
6 Cell Body 1 16056
7 Screw 12 403625
8 Switch mode power supply DNP15C (LS) 1 403368
8 Switch mode power supply DNP25C (LS) & DNP35C 1 403369
9 Pump Loom 1 16075
10 Mains Loom 1 16073
11 Power Cord 240v 1 403370
12 Replacement Cell DNP15C 1 DES2C15REPAU
12 Replacement Cell DNP25C, DNP15CLS 1 DES2C25REPAU
12 Replacement Cell DNP35C, DNP25CLS 1 DES2C35REPAU
13 Bush Power Cable 1 403372
14 PCB DNP15C 1 33005C-15ASP
14 PCB DNP15CLS 1 33005C-15ALSP
14 PCB DNP25C 1 33005C-25ASP
14 PCB DNP25CLS 1 33005C-25ALSP
14 PCB DNP35C 1 33005C-35ASP
15 PCB LCD 1 16046
16 PCB LCD Gasket 1 16077
17 Screw LCD 4 403366
18 Control Panel Decal 1 16047
19 Front Casing 1 16042
