DAVID 5 - Rotation of the Camera

10/31/2016 DAVIDDAVID5Manual
http://www.david3d.com/en/support/david5/printversion 11/37

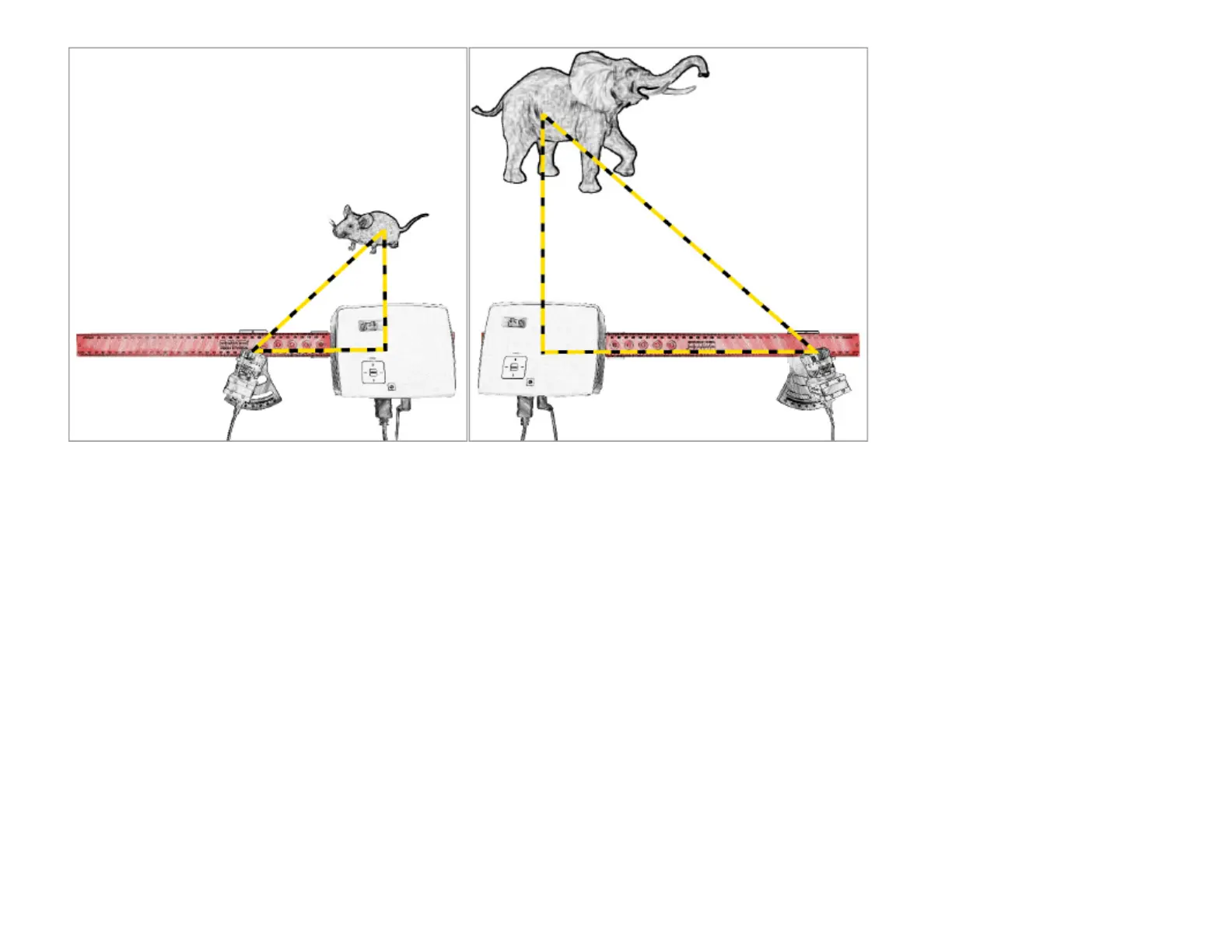

Left: Small object → short distances; Right: Large object → greater distances
Rotation of the camera
Rotate the camera by about 22° such that it aims at the projection area. To do this, loosen the thumbscrew
under the camera. Set the rotation angle by means of the degree scale on the camera slide, then fix the
thumbscrew.
