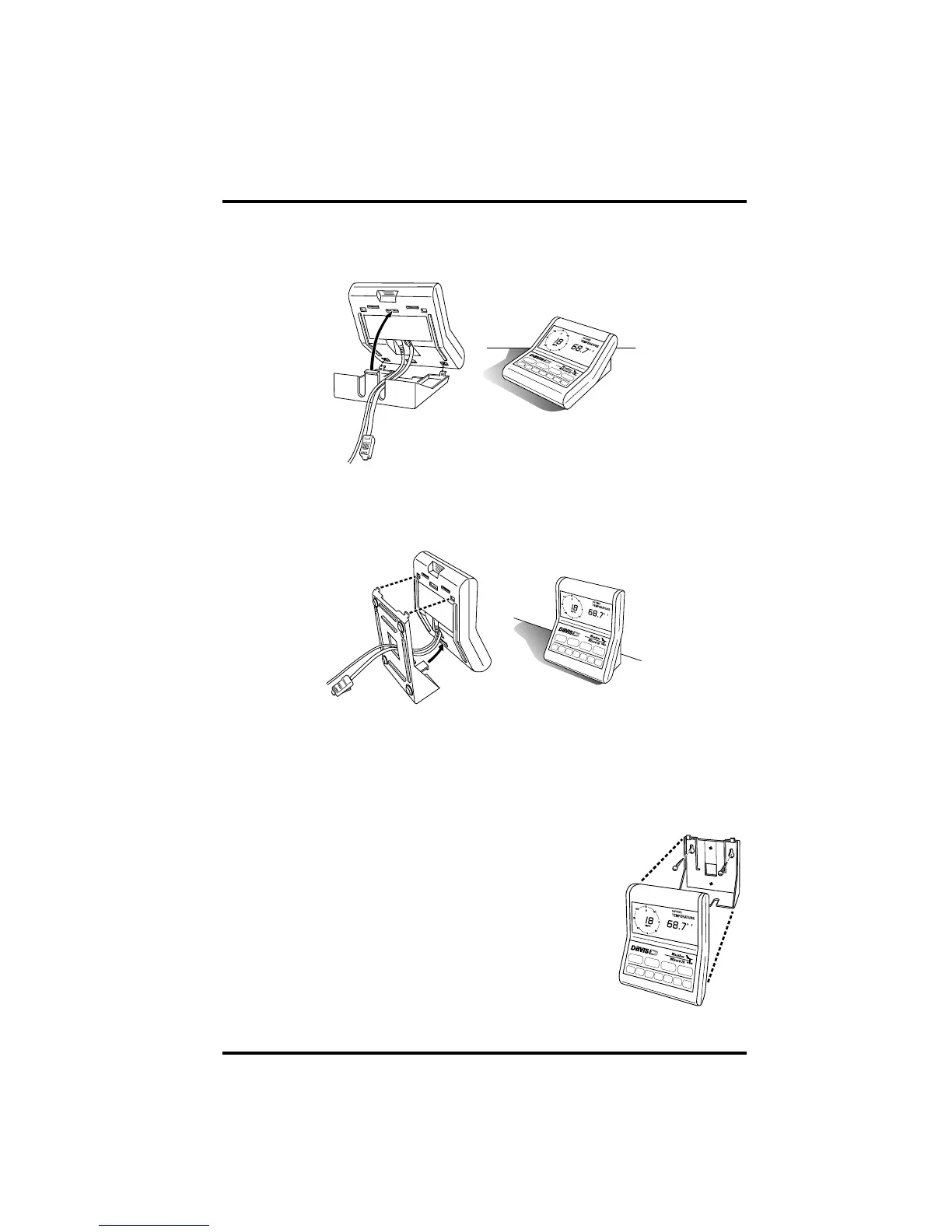

Displaying the Console
Weather Wizard III Page 15
To Display the Console on a Tabletop
To display the console on a table or desk, attach the base as shown below and
guide the cables through the slots indicated.
To Display the Console on a Shelf
To display the console upright on a shelf, attach the base as shown below and
guide the cables through the slots indicated.
To Display the Console on a Wall
1. Hold the mounting base flat against the wall and use a pencil to mark the location of
the two keyholes.
2. Use an electric drill with a #36 or 2.5-mm drill bit to make pilot holes in these loca-
tions.
3. Using a screwdriver, drive the two pan head screws into the
wall. Leave at least 1/8 inch (3 mm) between the wall and the
heads of the screw.
4. Depending on how high you mount the console on the wall,
you can use either tabletop or shelf orientation. Attach the
mounting base in the orientation you prefer.
5. Slide the keyholes on the back of the mounting base over the
two screw heads. Lock the console into place by gently sliding
it downward until it no longer moves.
