3KP64 - 3.14
3000PLUS WITH 5D64 INSTRUCTION MANUAL V. SB.2
Daytronic Corporation
2211 Arbor Blvd. Dayton, OH 45439 (800) 668-4745
Tel: (937) 293-2566 Fax: (937) 293-2586 www.daytronic.com

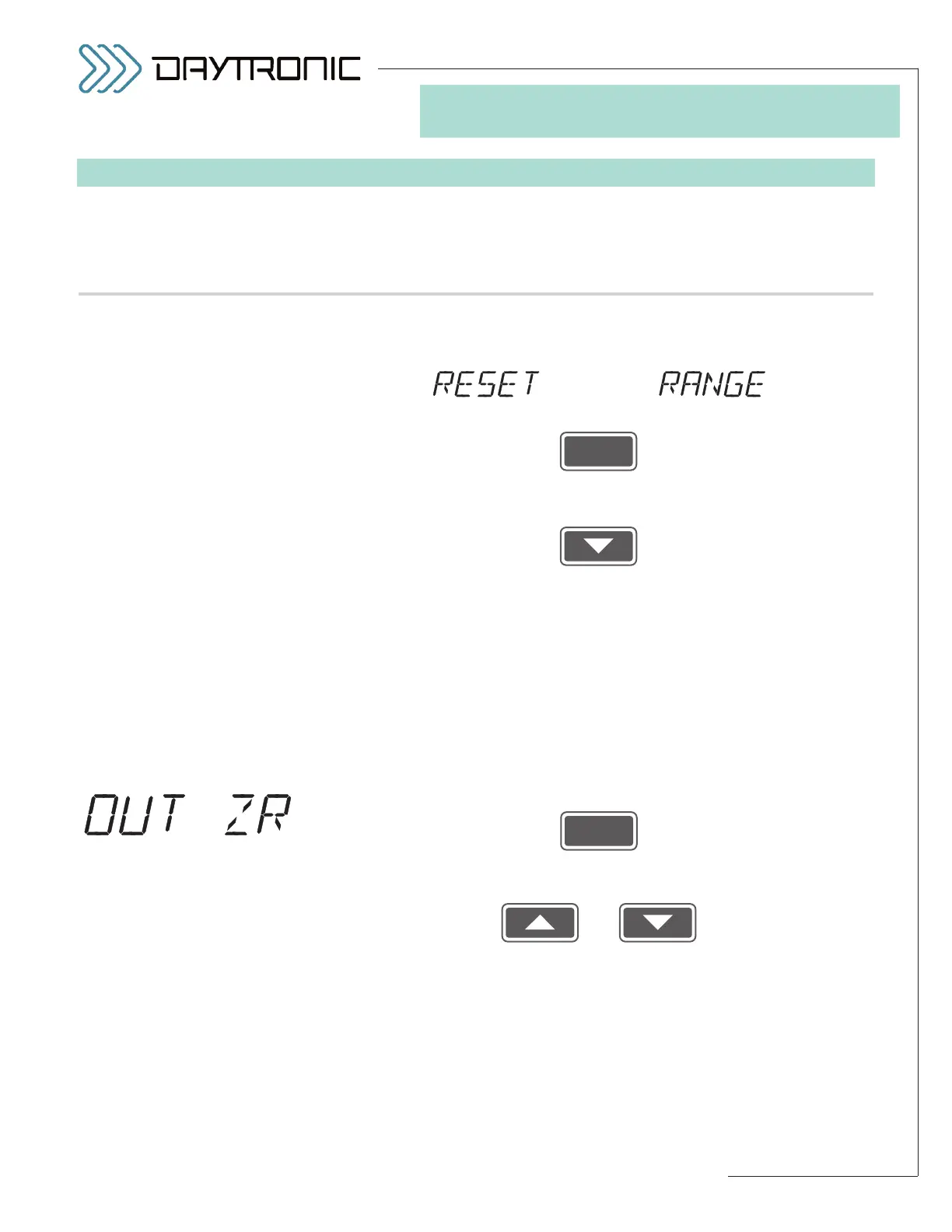

SETUP STAGE 4(AX): ABSOLUTE TRANSDUCER CALIBRATION
(contd)
When the
3000PLUS
displays this . . . Do this . . .
ST
and
CL
are lit.
3. FRONT-PANEL CONFIGURATION
AND CALIBRATION
If the 3000PLUS is able to reset the RANGE value so that a legal
MSF may be calculated from the present calibration numbers, it will
display
alternating with
If you want the
RANGE value to be reset, press
to answer YES and proceed to Step 4(AX).l, below.
If you do not want the
RANGE value to be reset, press
to answer NO. You will be returned to Step 4(AX).c.
If the 3000PLUS is not able to reset the
RANGE value so that a legal
MSF may be calculated from the present calibration numbers, you will
be automatically returned to Step 4(AX).c.
If you got a RNG HI (or RNG LO) error, you may wish to exit and
restart the setup procedure, this time selecting a lower (or higher}
FULL-SCALE RANGE value in Step 2.b. Or you can continue with the
calibration, but try to increase (or decrease) the effective sensitivity by
increasing (or decreasing) either the TRANSDUCER SENSITIVITY
entry or the FULL-SCALE OUTPUT entry, or by decreasing (or increas-
ing) the TRANSDUCER FULL-SCALE RANGE entry (if applicable).
4(AX).l. Press
4(AX).m. The last-entered
OUTPUT ZERO CORRECTION will be displayed
(having the decimal-point precision specified in Step 2.d). Use
and
as explained in Section 3.A to adjust the displayed number to the
desired value. This will normally be the
desired correction (offset) to
be continuously applied to the 3000PLUS instruments scaled output
channels (1 and 2), expressed in measurement units
(see Section 4.E
for more information on the
MODULE INPUT OFFSET (MIO) parame-
ter). The number should be entered with the desired plus/minus
polarity: a
positive offset value will be algebraically added to the output
signal; a
negative offset value will be algebraically subtracted. The ini-
tial (default) setting is always zero.
(contd)
ENTER
ENTER
