3000PLUS WITH 5D64 INSTRUCTION MANUAL V. SB.2
1. INTRODUCTION
Daytronic Corporation
2211 Arbor Blvd. Dayton, OH 45439 • (800) 668-4745
Tel: (937) 293-2566 • Fax: (937) 293-2586 • www.daytronic.com
Study the following diagrams to acquaint yourself with
the most important 3000PLUS front and rear elements.
1.B PHYSICAL LAYOUT
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAA
SETUP SCROLL ENTER
A
A
A
A
ST LM
C2 C3
RG PK HI
FL AN OK
CL CM LO
AA
AA
AA
AA
Push Buttons
(for functions, see
Sections 1.E and 3)
Display
(see Section 1.D)
Limit Status
Indicators
(see Section 1.D)
Setup
Indicators
(see Section 3.B)
Channel
and
Limit-Value
Indicators
(see Section 1.D)
Communi-
cations
Indicator
(see Section 2.B)

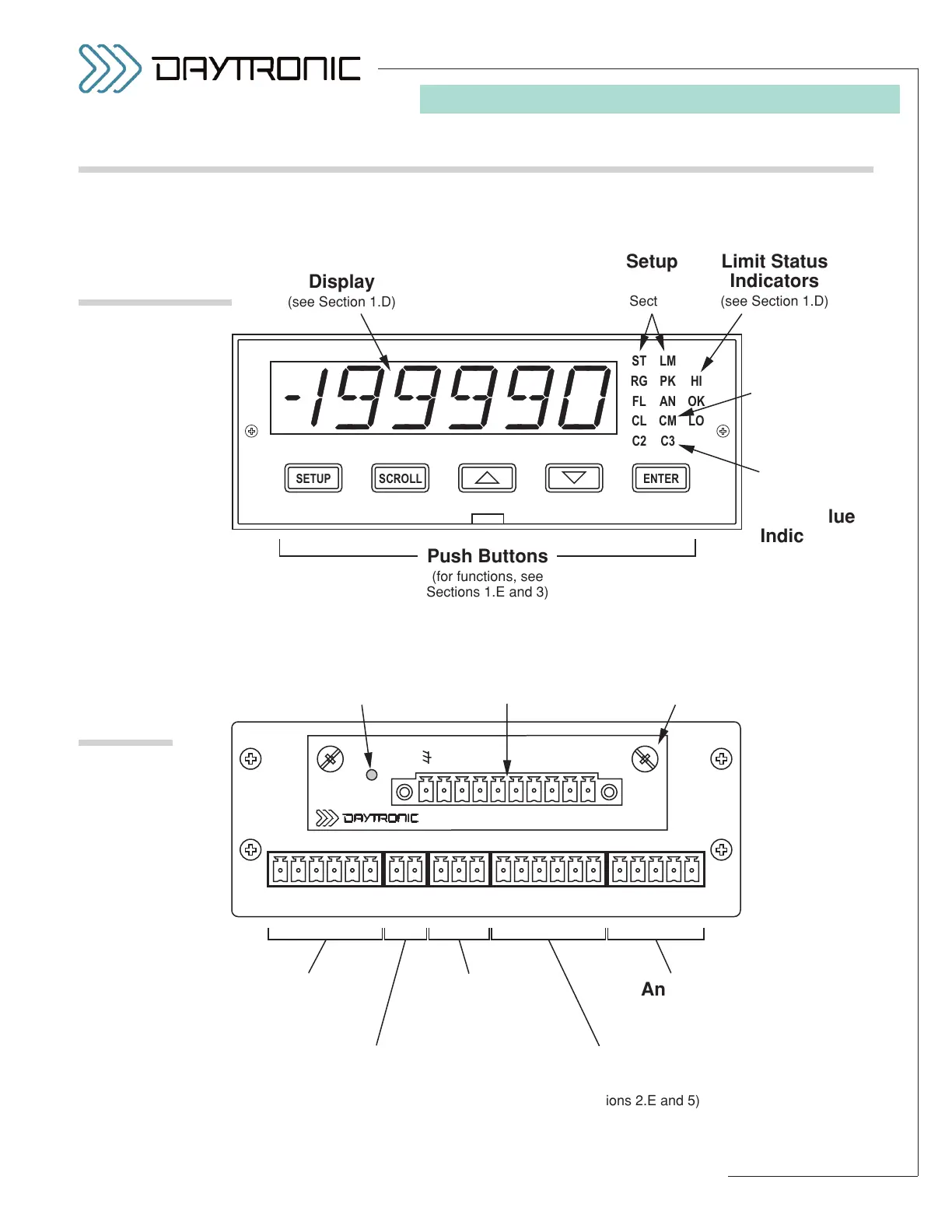

Fig. 2
3000PLUS Front
Panel Elements
Limit Logic
(Relay) Outputs
(see Section 2.E)
A
/
D
COM
OUT
COM
A
/
D
INP
V
OUT
4-20
OUT
LOG
COM
RCV
XMT
PWR
COM
+24
VDC
HI
HI
LO
LO
OK
OK
LOG
COM
HLD
PEK
TAR
HAV
PEK
RLS
LAT
A
A
AA
AA
AA
A
AA
AA
AA
AA
5D64
+EXC
+SEN
–SEN
–EXC
–SIG
+SIG
STATUS
Model 5D64
DC Voltage
Module
Power
Connections
(see Section 2.A)
Serial
Communications
Connections
(see Section 2.B)
Logic I/O
Connections
(see Sections 2.E and 5)
Analog I/O
Connections
(see Section 2.D)
Transducer
Field Connector
(see Section 2.C)
Module Status
Indicator Light
(see Section 1.D)
COM
Fig. 3
3000PLUS /
5D64 Module
Rear Panel
Elements
