Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
31

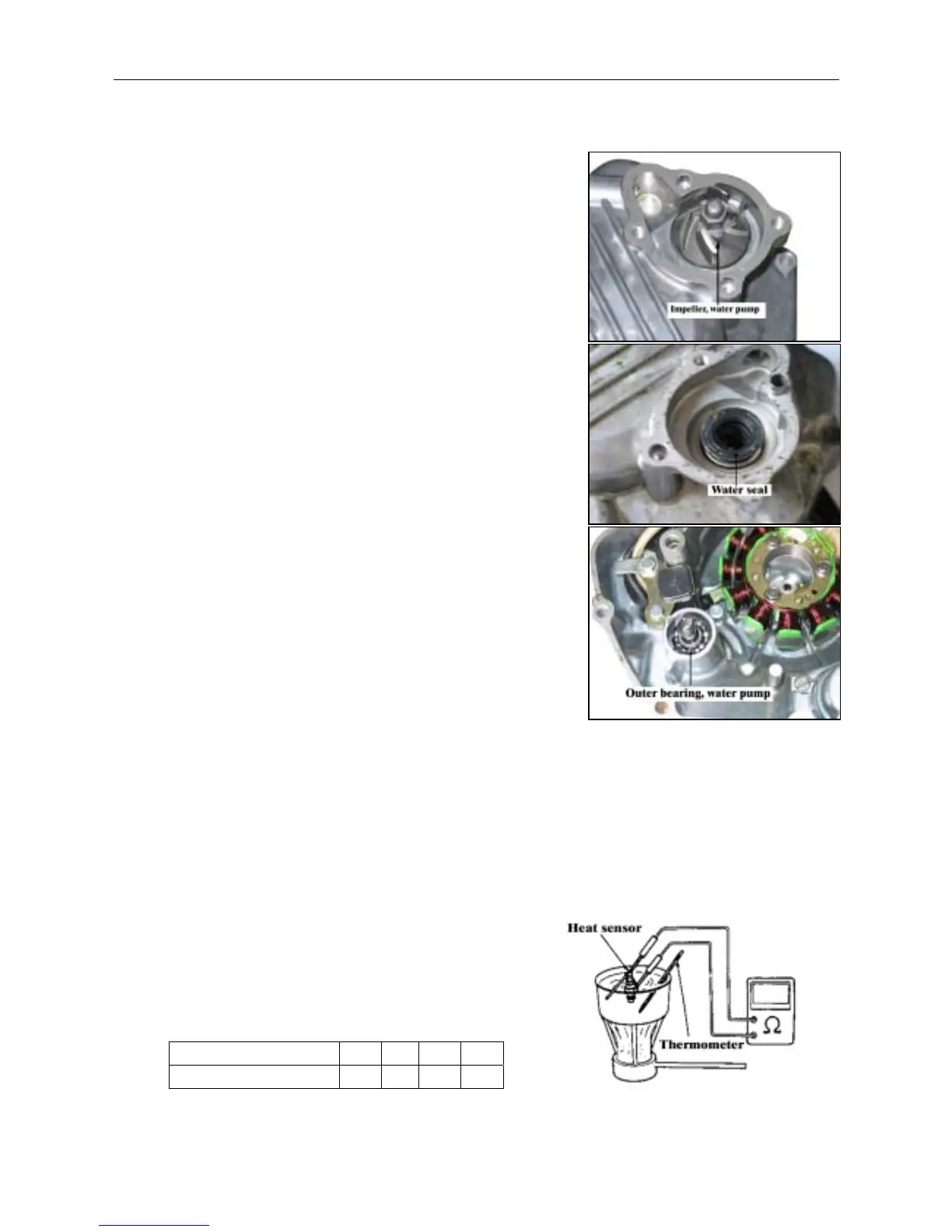

g) Assemble the impeller pin on the shaft.
Torque: 10 N.m
Note: Fasten the impeller with the left thread.
h) Replace the water pump water seal;
Take out the water seal from the inside of the right
crankcase cover;
Assemble a new water seal into the right crankcase cover;
Note: Apply the water seal agent on the mating surface of
the water seal and the right crankcase cover
before assembly.
i) Assemble water pump shaft;
Assemble a new outer bearing of the water pump shaft
inside the right crankcase cover.
3.7.7 Heat Sensor
z Disassemble
a) Remove the rear side cover on the right;
b) Drain out the water tank fluid;
c) Disconnect the heat sensor wires;
d) Remove the heat sensor.
z Inspection
a) Put the heat sensor into the testing container;
b) Raise the water temperature slowly;
c) Measure the resistance value of the heat sensor.
z Resistance Value
Temperature ( )℃ 50 80 100 120
Resistance value (Ω) 154 52 27 16
