Monitor Application Guide
®
12
DriveRack™
dbx
Input Meters
The 480 DriveRack™ provides the user with four independent 12 seg-
ment lightpipe™ input meters that range from -30 to +22 dBu.
Threshold Meters
The threshold meters indicate that the threshold level has been exceed-
ed within the dynamics section (compressor/limiter), and gain reduction
is taking place within the specific output channel.
Output Meters
The 480 DriveRack™ provides the user with eight independent 12-seg-
ment lightpipe™ output meters that range from -30 to +22 dBu.
Output Mutes
The eight output mute buttons are used for independently muting each
output on all eight outputs of the 480 DriveRack™.
Power Switch
Turns the 480 DriveRack™ on and off.
IEC Power Cord Receptacle
The 481 comes with an International power supply that will accept voltages ranging from 100V-
240V at frequencies from 50Hz-60Hz. An IEC cord is included.
RS485 Control Bus Input (DB-9 connector type)
This input network connection is used to receive information being sent from other units in the
DriveRack™ network link.
RS485 Control Thru Bus (DB-9 connector type)
This Thru network connection is used to pass information to other units in the DriveRack™ net-
work link.
RS485 Control Bus Input (RJ-45 connector type)
This input network connection is used to receive information being sent from other units in the
DriveRack™ network link.
RS485 Control Thru Bus (RJ-45 connector type)
This Thru network connection is used to pass information to other units in the DriveRack™ net-
work link.

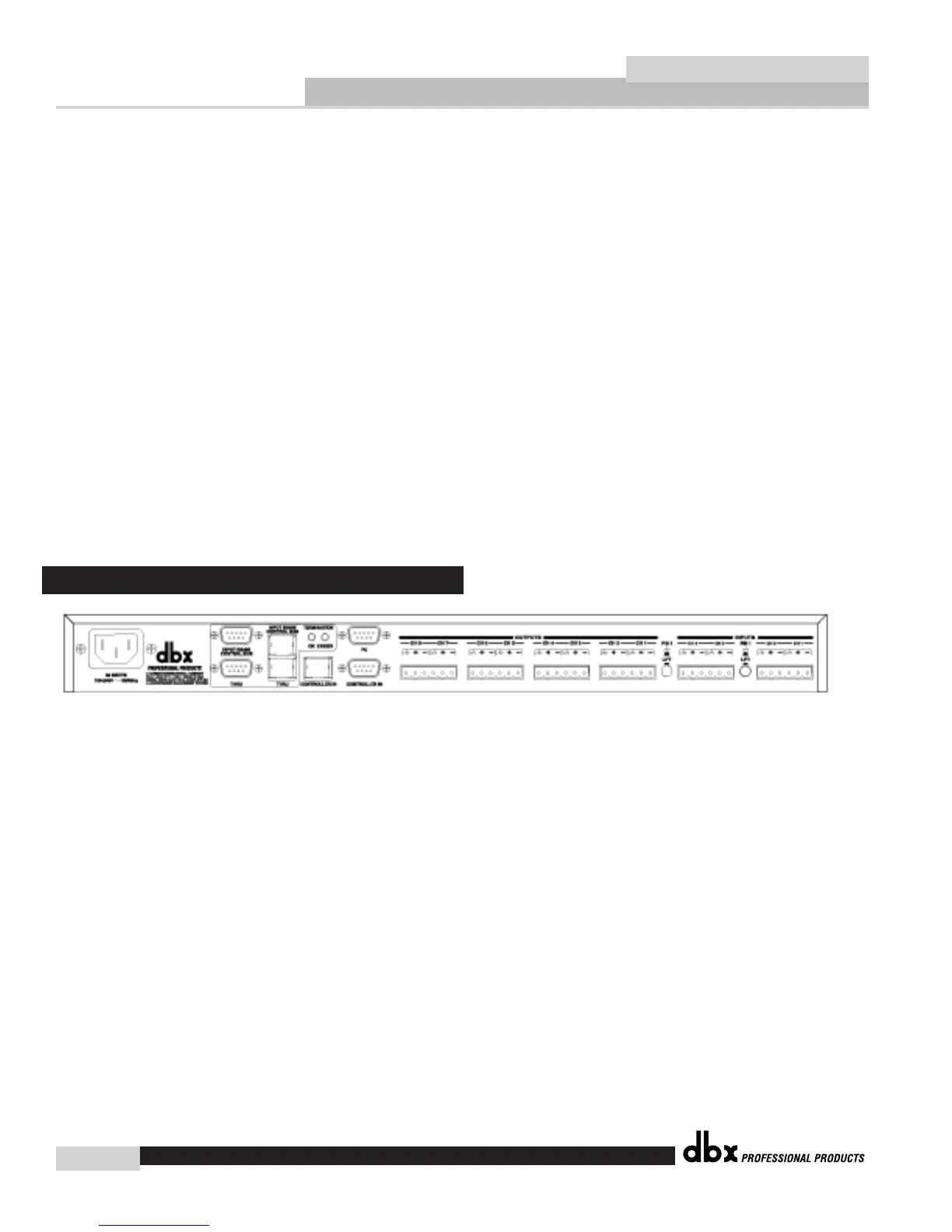

Rear Panel Connections (481)
