DCN S4600 Series User Manual

S4600 series Installation manual Chapter 1 Introduction
1-9

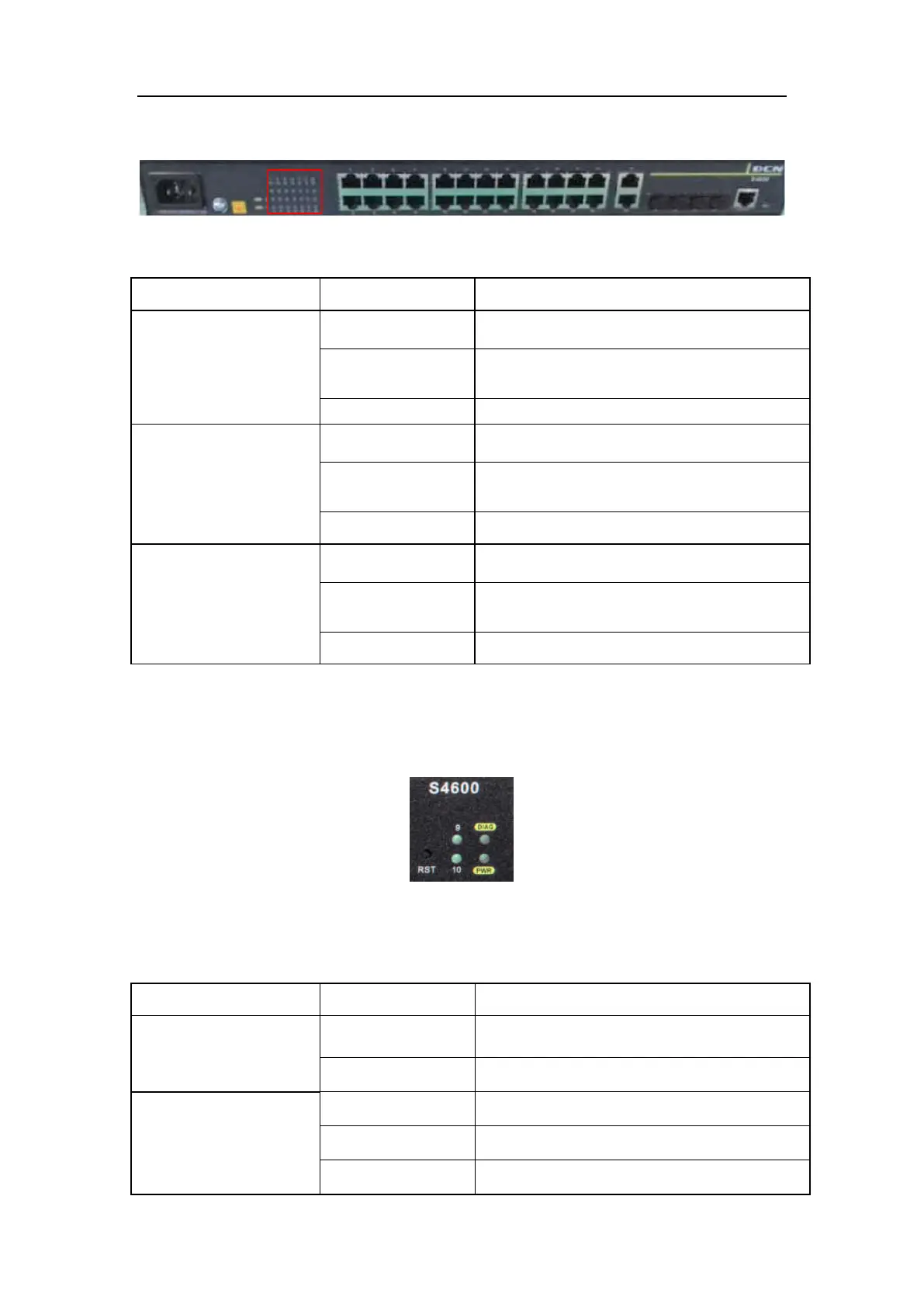

Fig 1-27 S4600-28C-SI LED diagram
Table 1-7 S4600-28C-SI port indicator description
Panel Symbol Status Description
Port1-24(Link/Act)
On (Green) The port is linked successfully
Flash (Green)
The port is linked successfully, and
receive/send data
Off The port is not link
Port25-26(Link/Act)
On (Green)
1000Mb combo port is linked successfully
Flash (Green)
1000Mb combo port is linked successfully,
and receive/send data
Off 1000Mb combo port is not link
Port27-28(Link/Act)
On (Green)
SFP port is linked successfully
Flash (Green)
SFP port is linked successfully, and
receive/send data
Off SFP port is not link
1.3.3.2 System Status Indicator Description
Fig 1-28 S4600-10P-SI system LED diagram
Table 1-8 S4600-10P-SI system indicator description
LED Status Description
Power
On (Green) The internal power is operating normally
Off Power is off or error
DIAG
On (Green) Operating state is abnormal
Flash(Green) Operating state is normal
Off Power is off or system is abnormal

DCN S4600 Series Specifications

General

Series	S4600 Series
Category	Switch
Layer Support	Layer 2/3
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Ports	10/100/1000Base-T ports, SFP/SFP+ ports
VLAN Support	4K VLAN
Stacking	Yes
Power Supply	AC 100-240V, 50/60Hz
Management	Web, CLI, SNMP
Jumbo Frame	9K bytes
Dimensions (W x D x H)	440mm x 44mm
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
MAC Address Table	16K entries
Weight	Varies by model
