DCS BGA48-BQAR User Manual

27
ITEM DESCRIPTION PART NO.
1Grate BGA Grills 18369
2Radiant Assembly BGA 32291-02
2a Radiant Cap 32264-01
2b Radiant 32218-02
3Ceramic Rods 9.50 32224
4Tube Burner 18408
5Heat Shield, Fire Box 41190
6Manifold Assembly
BGA36-BQARL 41207-01
BGA36-BQARN 41207-02
41207-03
41208-01
41207-04
41208-02
BGA48-BQARL 41209-01
BGA48-BQARN 41209-02
TEM DESCRIPTION PART NO.
7Washer 15005-15
8Screw 15003-15
9Air Shutter 12003-1
10 Control Valve 13017
11 Ignition Button 18353
12 Wire With Ter minals
BGA36-BQAR
BGA48-BQR
BGA48-BQAR 16438-05
13 Bezel 14006-PL
14 Screw 15001-29
15 Knob BGA 14351
16 NI-Chrome Wire Coil 32313
17 Collector Box 32801
18 Burner Electrode 14.5” 16281-02
Burner Electrode 35” 16281-04
Burner Electrode 45” 16281-05
Burner Electrode 20” 16281-06
19 Screw 15001-23
20 Tubing,Manifold Connector 33074
21 Nut 15140
22 Screw 15001-17
23 Bracket,Igniter 32808
24 Alkaline 9V Battery 18354
25 Battery Igniter 18351
26 Screw 15002-36
27 Regulator, LP Gas 13230
28 Regulator,Nat.Gas 13035

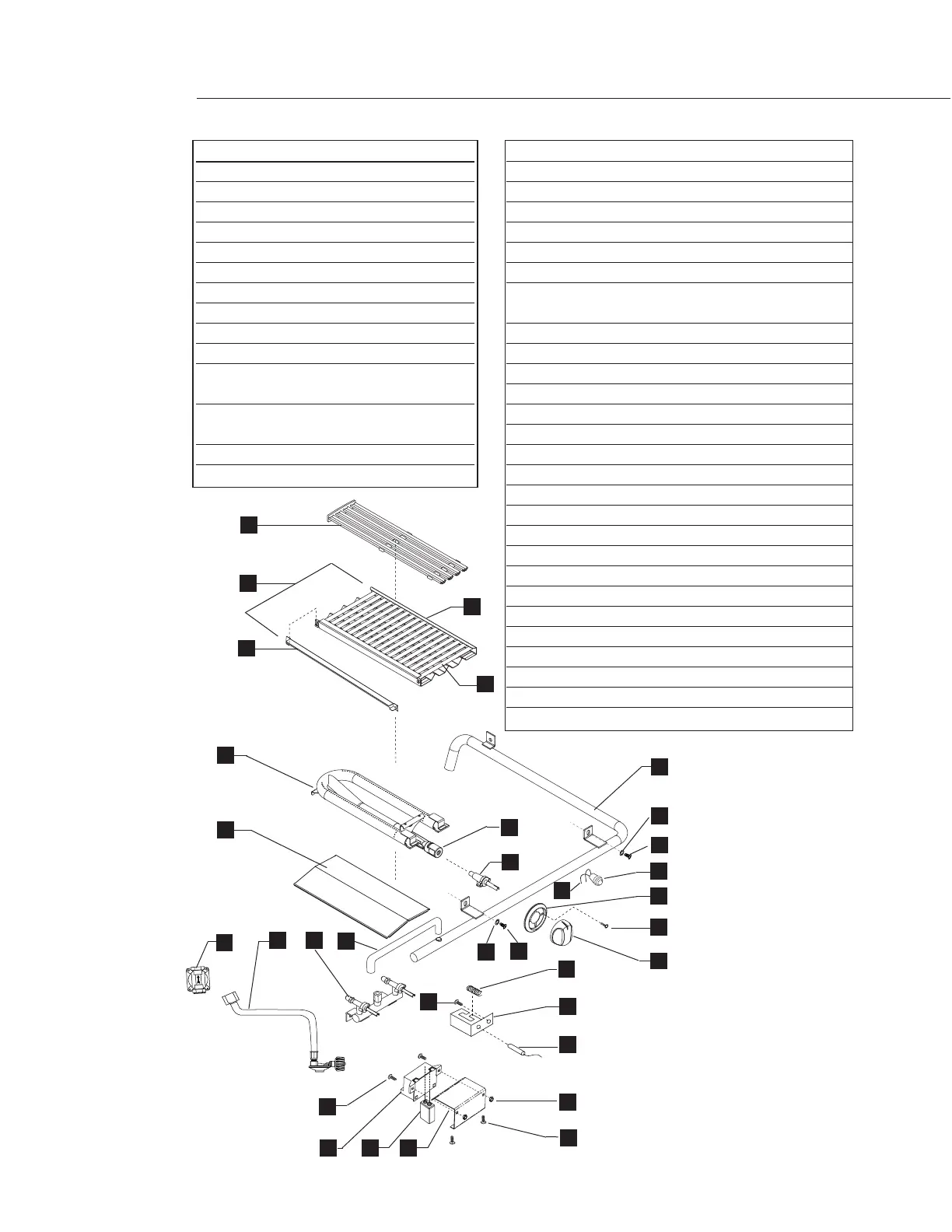

GRILL BURNER ASSEMBLY
1
2
27
3
19
17
23
16
24
4
18
5
13
6
14
25
28
7
15
9
10
8
11
2a
2b
8
7
6
20
21
22
26
12
BGA48-BQRL
BGA48-BQRN
16438-04
