DCS BGA48-BQAR - Rotisserie Assembly Parts List

29
ITEM DESCRIPTION PART NO.
16 Bolt 15003-15
17 Bulb 16235
18 Rotisserie,Motor Assembly
Right Side Mounting (Standard Configuration) 33060-01
Left Side Mounting (Special Order) 33060-02
19 Rotis Block 14155
20 Rotis Mounting Arm 14161
21 Screw 15003-21
22 Bracket, Rotis Support R/H 33069-01
23 Bracket, Rotis Support L/H 33069-02
24 Tube Safety Valve/I/R Burner
BGA36-BQAR,BGA48-BQR 32133-02
BGA48-BQAR 33072
25 Safety Valve Knob 14108
26 Safety Valve Bezel 14160
27 Safety Valve 18110
28 Tubing Manifold/Safety Valve 30841-03
29 Control Valve 13017
30 Bezel 14006-PL
31 Knob BGA 14351
ITEM DESCRIPTION PART NO.
1Fork Rotisserie 18365
2Rotisserie Rod,BGA36-BQAR,BGA48-BQR 19496-01
Rotisserie Rod,BGA48-BQAR 19496-02
3Handle,Rotisserie Rod 18040
4Screw 15001-26
5I/R Protection Plate, BGA36-BQAR,BGA48-BQR 41191-PC
I/R Protection Plate,BGA48-BQAR 41191-01-PC
6I/R Burner, BGA36-BQAR,BGA48-BQR 12021-2
I/R Burner, BGA48-BQAR 12290
7Wrapper, I/R Burner, BGA36-BQAR,BGA48-BQR 41194
Wrapper, I/R Burner, BGA48-BQAR 41194-01
8Orifice Elbow 18193
9Electrode, Rotisserie 16440-03
10 Electrode Housing L/H 32047-01
11 Thermocouple 13007-2
12 Acorn Nut 15019-06
13 Rack Roller 14197-01
14 Screw 15001-23
15 Acorn Nut 15019-07

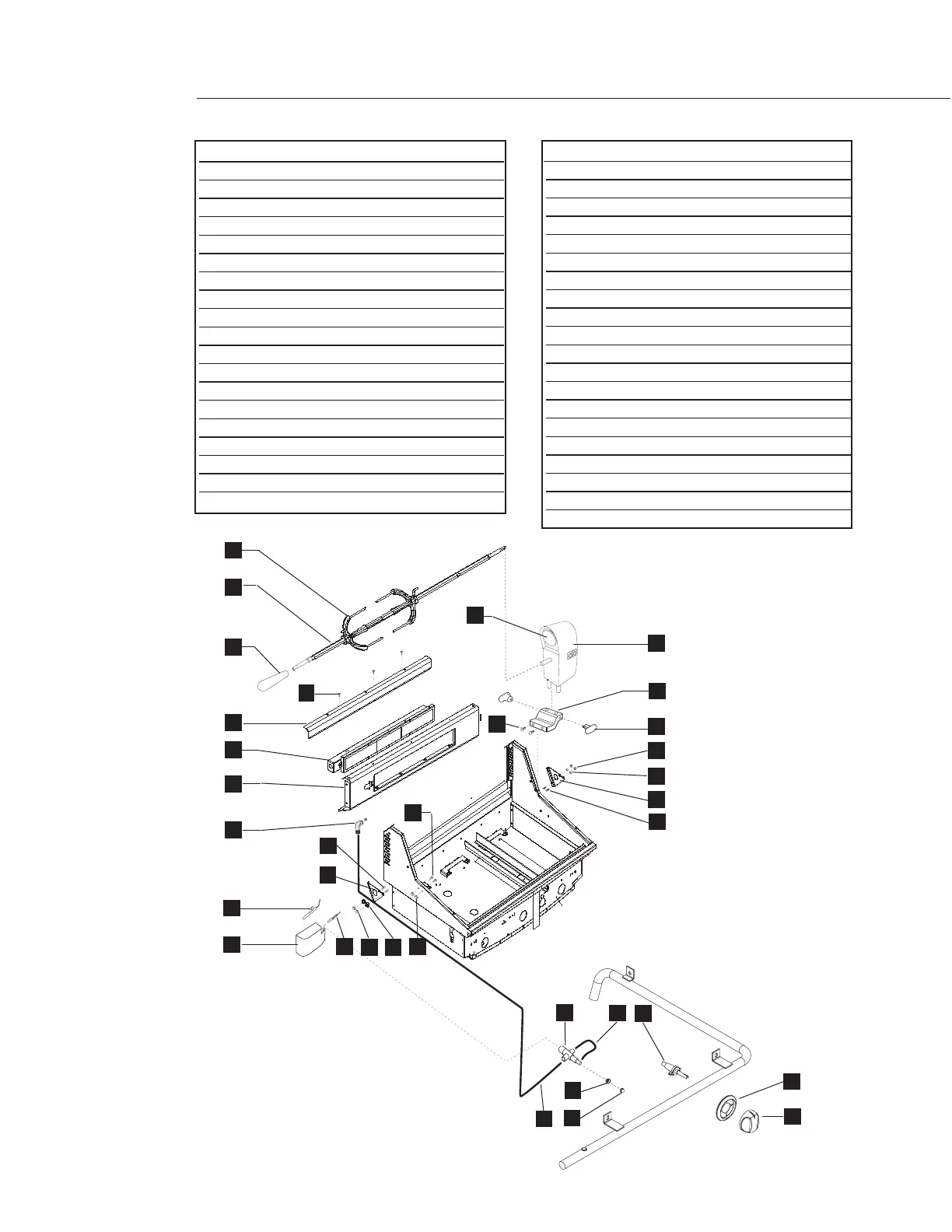

ROTISSERIE ASSEMBLY
24
10
2
3
4
5
19
20
13
18
22
6
11
7
8
9
27
1
23
26
28
25
29
30
31
12 13
15
16
12
21
14
14
17
