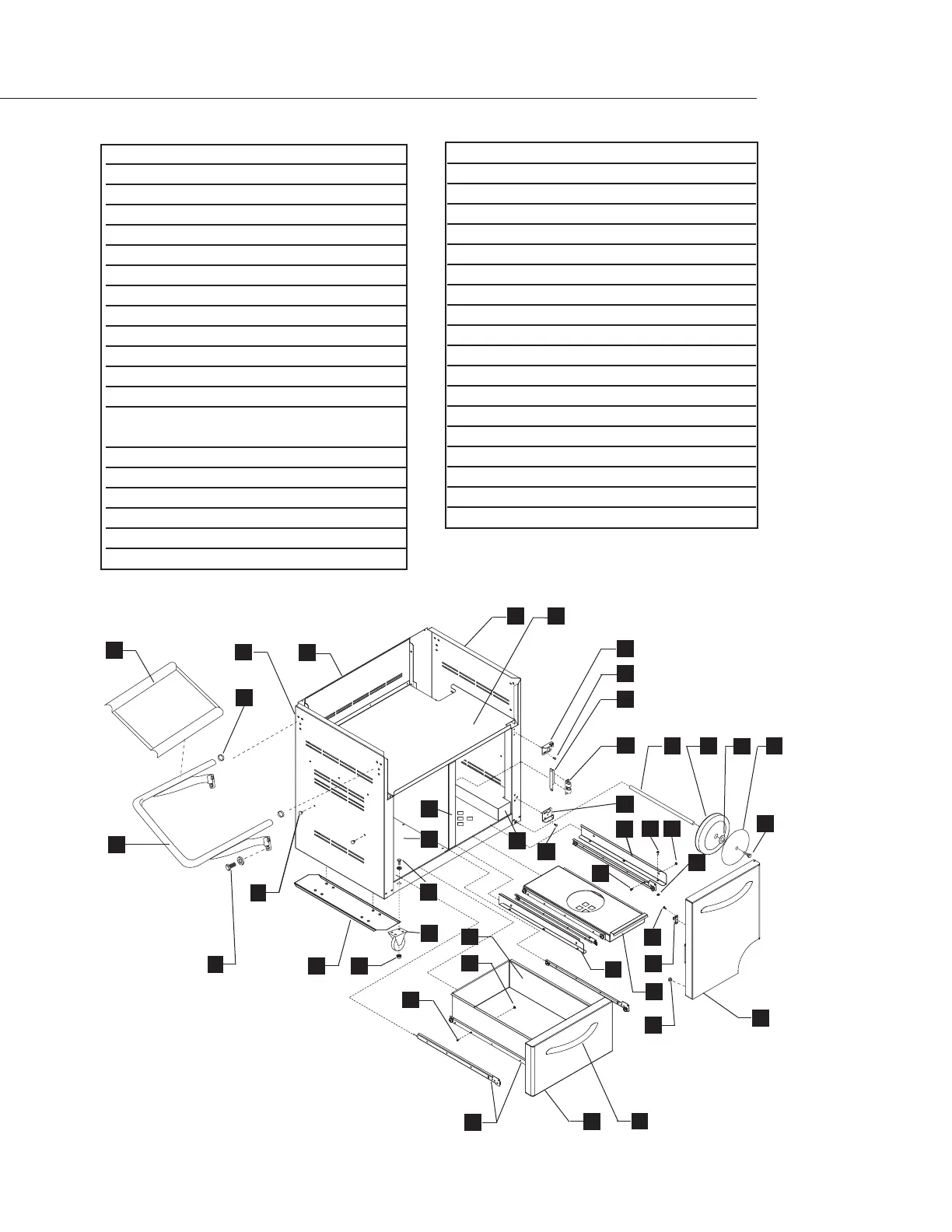

36 GRILL CART PARTS LIST
ITEM DESCRIPTION PART NO.
1Side Shelf Tray 41067
2Side Shelf End Cap 14205
3Side Shelf Assembly 18212
4Bolt 15003-06
5Left Body Panel 32799
6Rear Body Panel 33009
7Right Side Body Panel 32800
8Door Header 33008
9Center Divider 33010
10 Slide Bracket 2 41061
11 Frame Cart W/A 33025-01
12 Hex Bolt 15150
13 5”Caster w/o Brake 18022
5”Caster w/Brake 18022-1
14 Nut 15021-09
15 Caster Stiffener 41126
16 Mount Slides 14203
17 Front Drawer Skin 33032-01
18 Screw 15002-50
19 Nut Hex 15021-04
NOTE: Carts sold separately.
ITEM DESCRIPTION PART NO.
20 Drawer Box 33029-01
21 Pull handle 18462
22 Rubber Bump 18403
23 Tank Tray Pullout Assembly 33024
24 Door Catch 14204
25 Screw 15002-41
26 Slide Mounting Frame 32790-01/02
27 Right Door Assembly 33026-01
28 Screw 15002-29
29 Torx Screw 15002-45
30 Hub Cap 41075-01-SP
31 Retaining Ring 15121-01
32 8”Solid Rubber Wheel 18264
33 Axle 41062
34 Bottom Hinge R/H Assembly 41184-01
35 Screw 15002-26
36 Door Catcher Bracket 33017
37 Top Hinge R/H Assembly 41188-01
