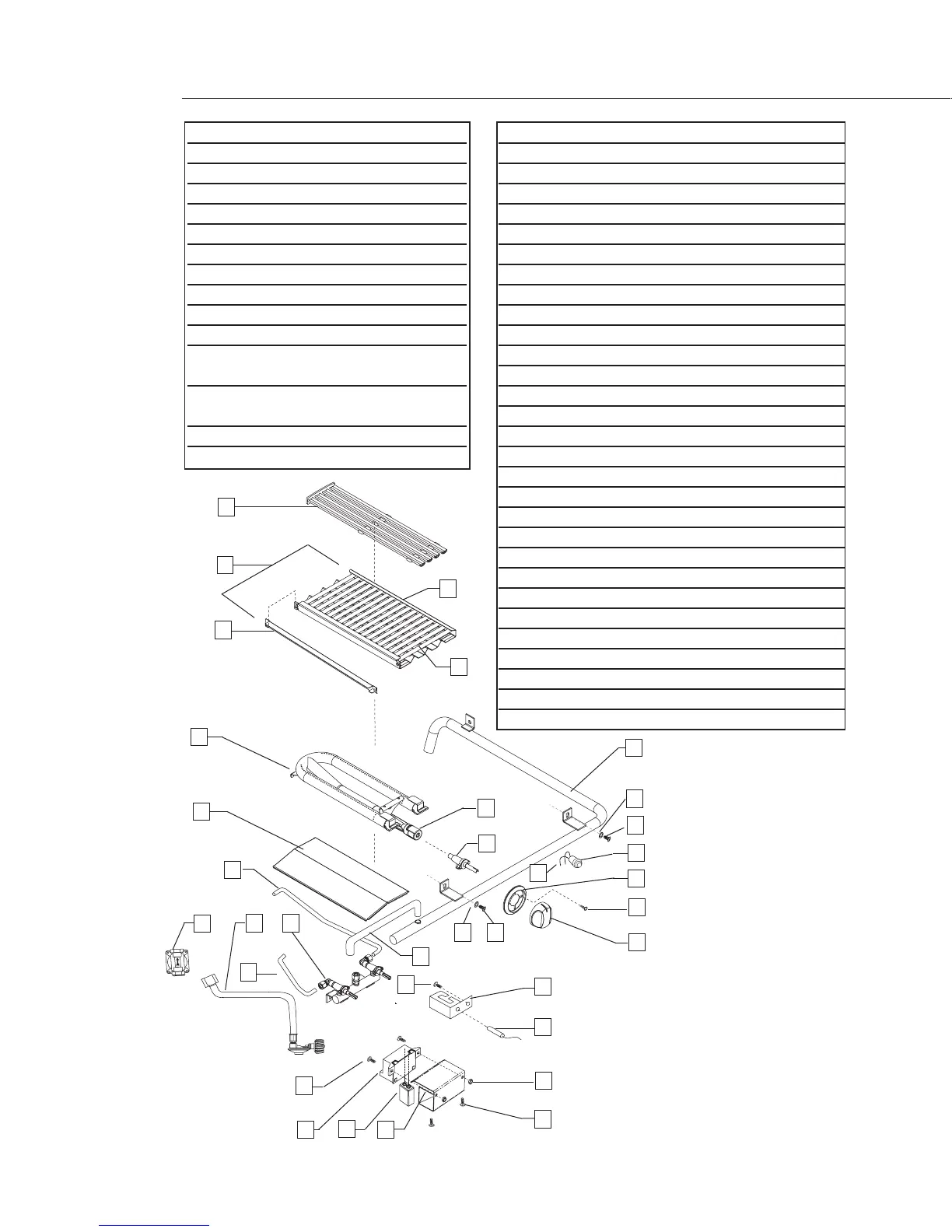

DCS BGB36-BQAR - Grill Burner Assembly

31
ITEM DESCRIPTION PART NO.
1Grate BGB Grills 18369
2Radiant Assembly BGB 32291-02
2a Radiant Cap 32264-01
2b Radiant 32218-02
3Ceramic Rods 9.50 32224
4Tube Burner 18408
5Heat Shield, Fire Box 41190
6Manifold Assembly
BGB36-BQARL 33428
BGB36-BQARN 33428
33424
33426
33424
33426
BGB48-BQARL 33388
BGB48-BQARN 33388
TEM DESCRIPTION PART NO.
7Washer 15005-15
8Screw 15003-15
9Air Shutter 12003-1
10 Control Valve 13017
11 Ignition Button 18353
12 Wire With Terminals
BGB36-BQAR,BGB48-BQR 16438-04
BGB48-BQAR 16438-05
13 Bezel 14006-PL
14 Screw 15001-29
15 Knob BGA 14351
16 Collector Box 32801
17 Burner Electrode 14.5” 16281-02
Burner Electrode 35” 16281-04
Burner Electrode 45” 16281-05
Burner Electrode 20” 16281-06
18 Screw 15001-23
19 Tubing,Manifold Connector 33074
20 Nut 15140
21 Screw 15001-17
22 Bracket, Igniter 33223
23 Alkaline 9V Battery 18354
24 Battery Igniter, BGB36-BQAR & BGB48-BQAR 18351
Battery Igniter, BGB48-BQR 16567
25 Screw 15002-36
26 Regulator, LP Gas 13230
27 Regulator, Nat.Gas 13035
28 Tubing 18537
29 Tubing 18538
GRILL BURNER ASSEMBLY
BGB48-BQRL
BGB48-BQRN
1
2
2a
4
5
2b
3
9
6
7
8
11
13
14
12
10
7 8
16
17
15
27
26 6
19
18
25
24
23
22
21
20
28
29
