DCS BGB36-BQAR - Grill Burner Assembly Parts List; Grill Body Parts List

28
ITEM DESCRIPTION PART NO.
10 Firebox, BGB36-BQAR 33200
Firebox, BGB48-BQAR 33385
11 Rack Roller 14197-02
12 Bottom/Back Panel,BGB36-BQAR 33169
Bottom/Back Panel,BGB48-BQAR 33387
13 Landing Ledge, BGB36-BQAR 33166
Landing Ledge, BGB48-BQAR 33230
14 Shield, Smoker Valve 41198
15 Safety Valve Box 33068
16 Front Baffle,BGB36-BQAR 33176
Front Baffle,BGB48-BQAR 33233
17 Drip Pan Assembly, BGB36-BQAR 33224
Drip Pan Assembly, BGB48-BQAR 33390
18 Grease Tray 32771
19 Keps Nut 15021-04
20 Nut 15004-09
21 Drip Pan,BGB36-BQAR 33198
Drip Pan,BGB48-BQAR 33391
22 Handle,Drip Pan,BGB36-BQAR 33199
Handle,Drip Pan,BGB48-BQAR 33392
23 Logo Clip 15073
24 Logo 17382-01
25 Valve Panel,BGB36-BQAR 33175-PA
Valve Panel, BGB48-BQAR 33389-PA
26 *Insulated Jacket 36,Stainless Steel BGA36-IJS
*Insulated Jacket 48,Stainless Steel BGA48-IJS
27 Spacer Lid 32124-03
28 Shoulder Bolt 15089-1
29 Acorn Nut 15019-04
30 I/R Protection Plate,BGB36-BQAR 41191-PC
I/R Protection Plate,BGB48-BQAR 41191-01-PC
31 Screw 15001-26
* For use when building into combustible
enclosures (see page 11 for built-in details)

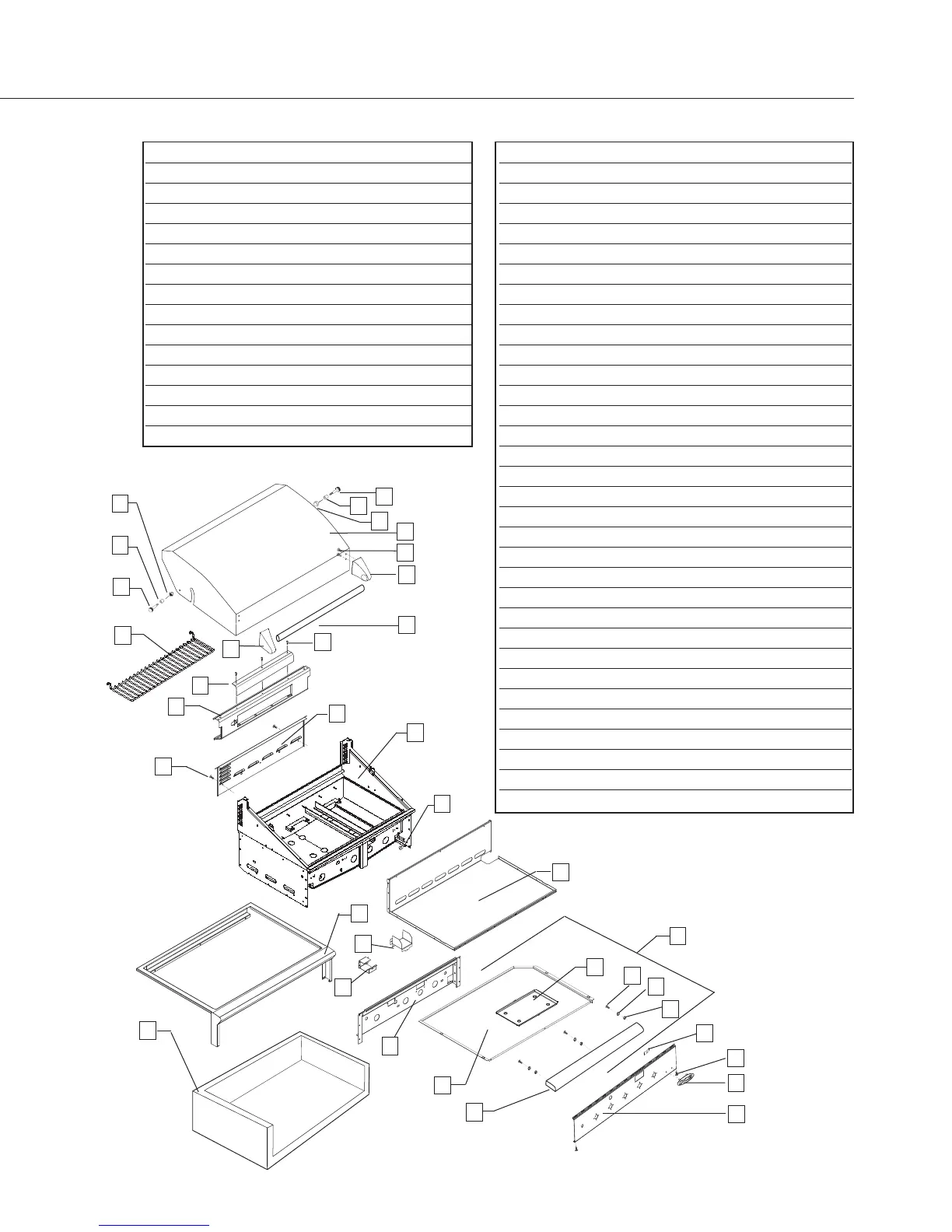

BGB36/48-BQAR GRILL BODY PARTS LIST
ITEM DESCRIPTION PART NO.
1Lid,BGB36-BQAR 33184
Lid,BGB48-BQAR 33395
2Bolt 15003-06
3Stanchion,Lid Handle,R/H 18372-01
4Lid Handle,BGB36-BQAR 55773-10
Lid Handle,BGB48-BQAR 55773-06
5Stanchion,Lid Handle,L/H 18372-02
6Warming Rack, BGB36-BQAR 32248-01
Warming Rack, BGB48-BQAR 32248-02
7Wrapper, I/R Burner, BGB36 33179
Wrapper, I/R Burner, BGB48 33393
8Screw 15001-23
9Service Panel, BGB36-BQAR 33181
Service Panel,BGB48-BQAR 33394
6
1
2
3
4
5
7
8
9
10
11
12
13
14
15
18
16
21
22
17
8
19
20
8
24
25
26
27
28
27
28
30
31
23
29
29
