DCS BGB36-BQAR - Rotisserie Assembly Parts List

32
ITEM DESCRIPTION PART NO.
16 Bulb 16235
17 Rotisserie,Motor Assembly
Right Side Mounting (Standard Configuration) 33060-01
Left Side Mounting (Special Order) 33060-02
18 Rotis Block 14155
19 Rotis Mounting Arm 14161
20 Screw 15003-21
21 Bracket, Rotis Support R/H 33173-01
22 Bracket, Rotis Support L/H 33173-02
23 Tube Safety Valve/I/R Burner
BGA36-BQAR,BGAB48-BQR 32133-02
BGA48-BQAR 33072
24 Safety Valve Knob 14108
25 Safety Valve Bezel 14160
26 Safety Valve 91107
27 Tubing Manifold/Safety Valve (BGB36/48) 30841-03
Tubing Manifold/Safety Valve (BGB48-BQAR) 30841-06
28 Control Valve 13017
29 Bezel 14006-PL
30 Knob BGA 14351
31 Elbow 18030
ITEM DESCRIPTION PART NO.
1Fork Rotisserie 18365
2Rotisserie Rod,BGB36-BQAR,BGB48-BQR 19507
Rotisserie Rod,BGB48-BQAR 19516
3Handle,Rotisserie Rod 18040
4Screw 15001-26
5I/R Protection Plate, BGA36-BQAR,BGA48-BQR 41191-PC
I/R Protection Plate,BGA48-BQAR 41191-01-PC
6I/R Burner, BGA36-BQAR,BGA48-BQR 12021-2
I/R Burner, BGA48-BQAR 12290
7Wrapper, I/R Burner, BGB36-BQAR,BGB48-BQR 33179
Wrapper, I/R Burner, BGB48-BQAR 33393
8Orifice Elbow 18020-1
9Electrode, Rotisserie 16440-03
10 Electrode Housing L/H 32047-01
11 Thermocouple 13007-2
12 Acorn Nut 15019-06
13 Rack Roller 18211
14 Screw 15001-23
15 Acorn Nut 15019-07

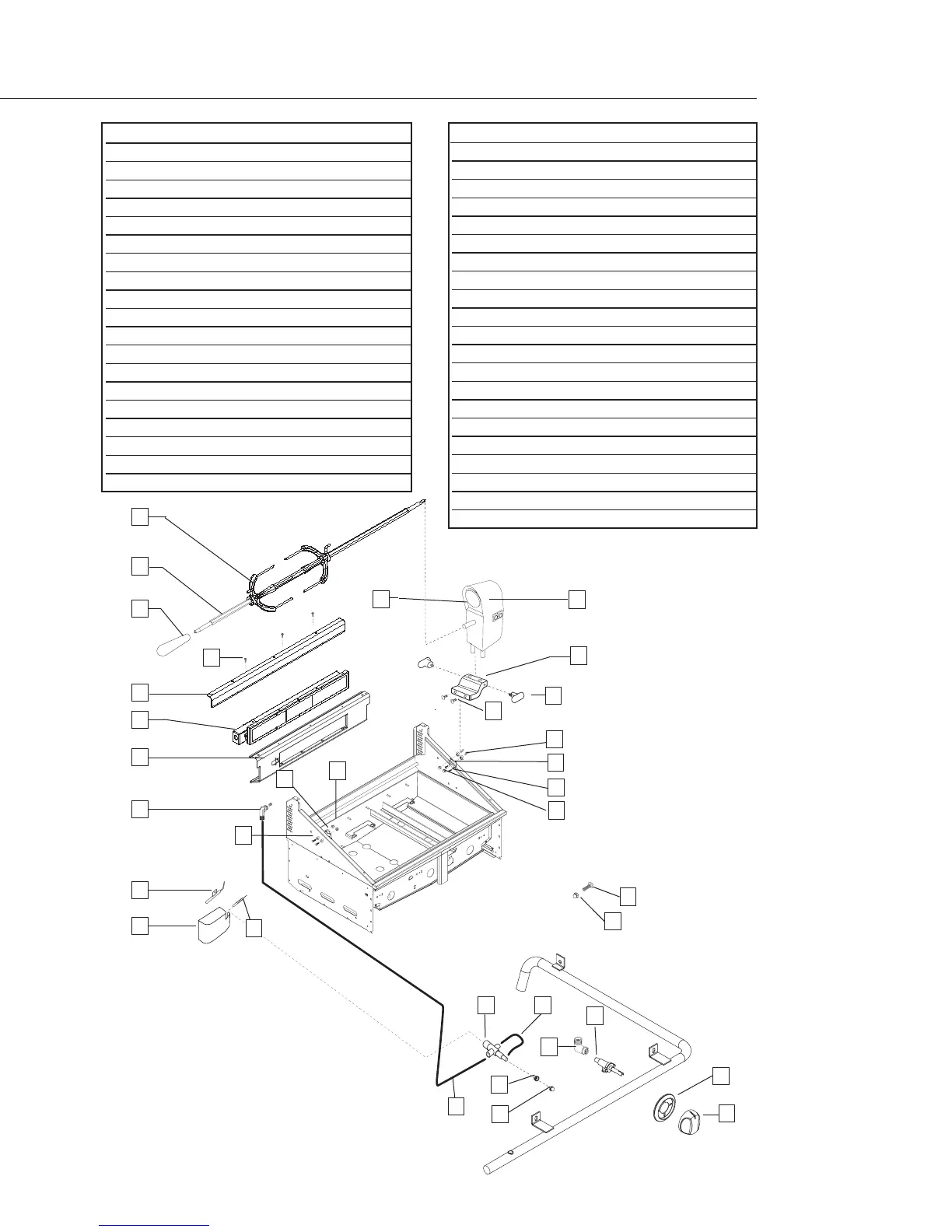

ROTISSERIE ASSEMBLY
1
2
3
5
12
16
6
7
8
20
22
4
9
10
13
11
17
18
19
13
21
14
12
20
26
27
28
29
30
25
24
23
15
31
