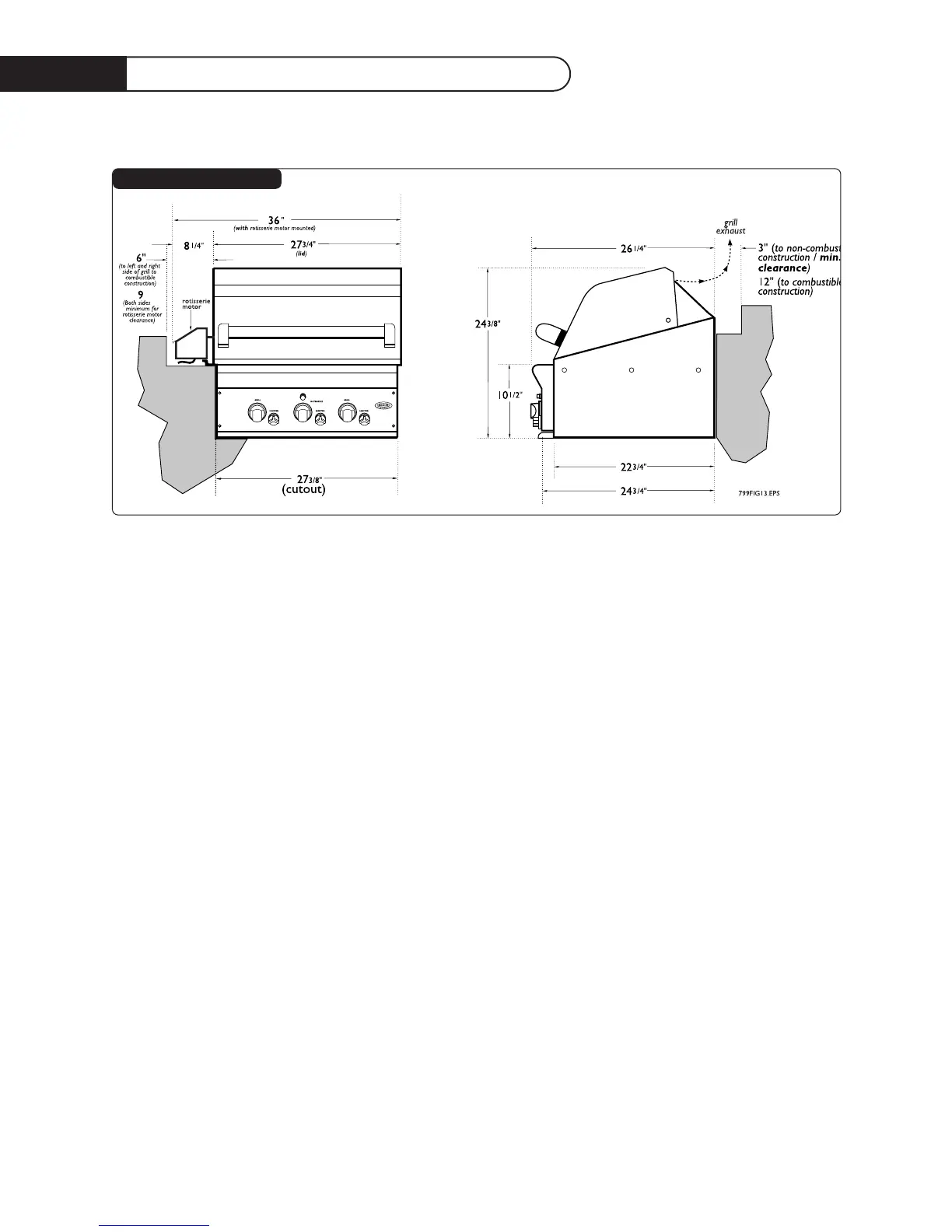

FIG.03 27FS Models
GENERAL (36DS / 48DS MODELS):
The Grill is designed for easy placement into masonry enclosures. For non-combustible applications
the grill drops into the opening shown in (Fig. 05) and hangs from its side flanges. A deck is not
required to support it from the bottom.When using the insulated jacket in a combustible enclosure
application, see (Fig. 05) bottom.The jacket assembly must be supported from the bottom by a ledge
on each side or a solid deck beneath the entire grill or insulated jacket
Review the detail drawings shown and take into account the provisions shown for gas line hook-up
clearance in the left rear corner. It is recommended that ventilation holes are provided in the
enclosure in the event of a gas leak.The supporting ledges or deck must be level and flat. The counter
should also be level.
GENERAL (27FS MODELS):
The Grill is designed for easy placement into masonry enclosures. For non-combustible applications
the grill drops into the opening shown in (Fig. 06 page 10). A deck or ledge is required to support it
from the bottom.When using the insulated jacket in a combustible enclosure application, (Fig. 06 page
10) bottom. The jacket assembly must be supported from the bottom by a ledge on each side or a
solid deck beneath the entire grill or insulated jacket.
Review the detail drawings shown and take into account the provisions shown for gas line hook-up
clearance in the left rear corner. It is recommended that ventilation holes are provided in the
enclosure in the event of a gas leak. The supporting ledges or deck must be level and flat.The counter
should also be level.
