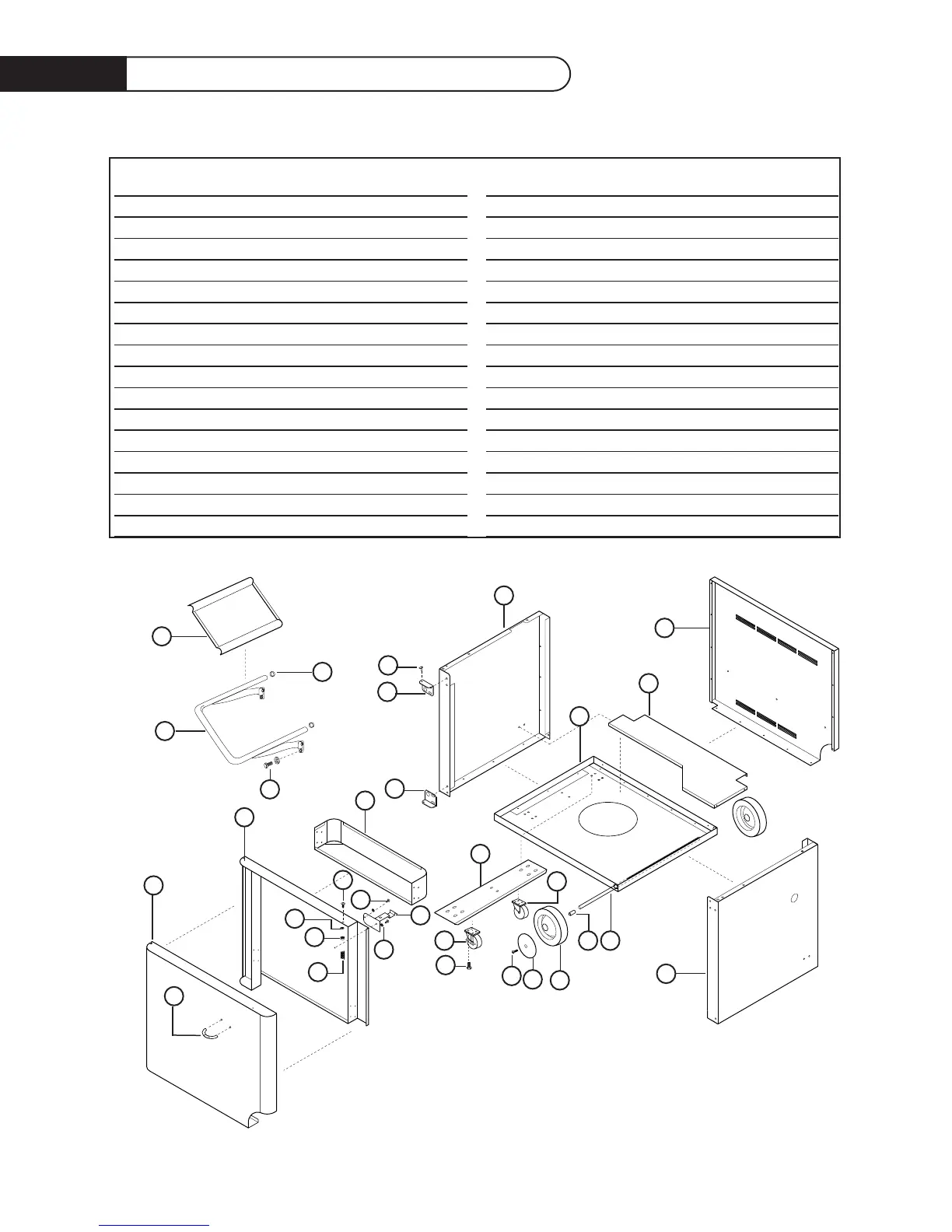

27F Grill Cart Parts List
ITEM DESCRIPTION PART NO.
1Front Door Panel 41139
2 Pull Handle 18204-01
3 Door Liner 41140
4 Spring 15198-01
5Keps Nut 15021-04
6Washer Nylon 15199
7 Screw 15001-26
8 Screw 15139-01
9 Hex Nut 15021-04
10 Catch Bracket 41142
11 Door Pocket 41146
12 Caster Stiffener 41148
13 Caster W/Brake 18027
14 Hex Bolt 15150
15 Caster W/Out Brake 18027-1
16 Torx Screw 15002-41
17 Hub Cap 41075-SP
18 Wheel 18098
19 Axle Spacer 41151
20 Axle 41150
21 Side Panel R/H 41145-02
22 Bottom Panel 41149
23 Tank Retainer 41153
24 Back Panel 41141
25 Hinge Bracket Btm. 41143-02
26 Hinge Bracket Top 41143-01
27 Pin Weld Assembly 15028
28 Side Panel L/H 41145-01
29 Side Shelf Tray 41067
30 Side Shelf Handle 18212
31 Side Shelf End Cap 14205
32 Bolt 15003-06
1
2
3
11
28
12
4
5
6
7
8
10
13
15
14
16
17
18
20
19
9
21
22
23
24
25
26
27
29
31
30
32
