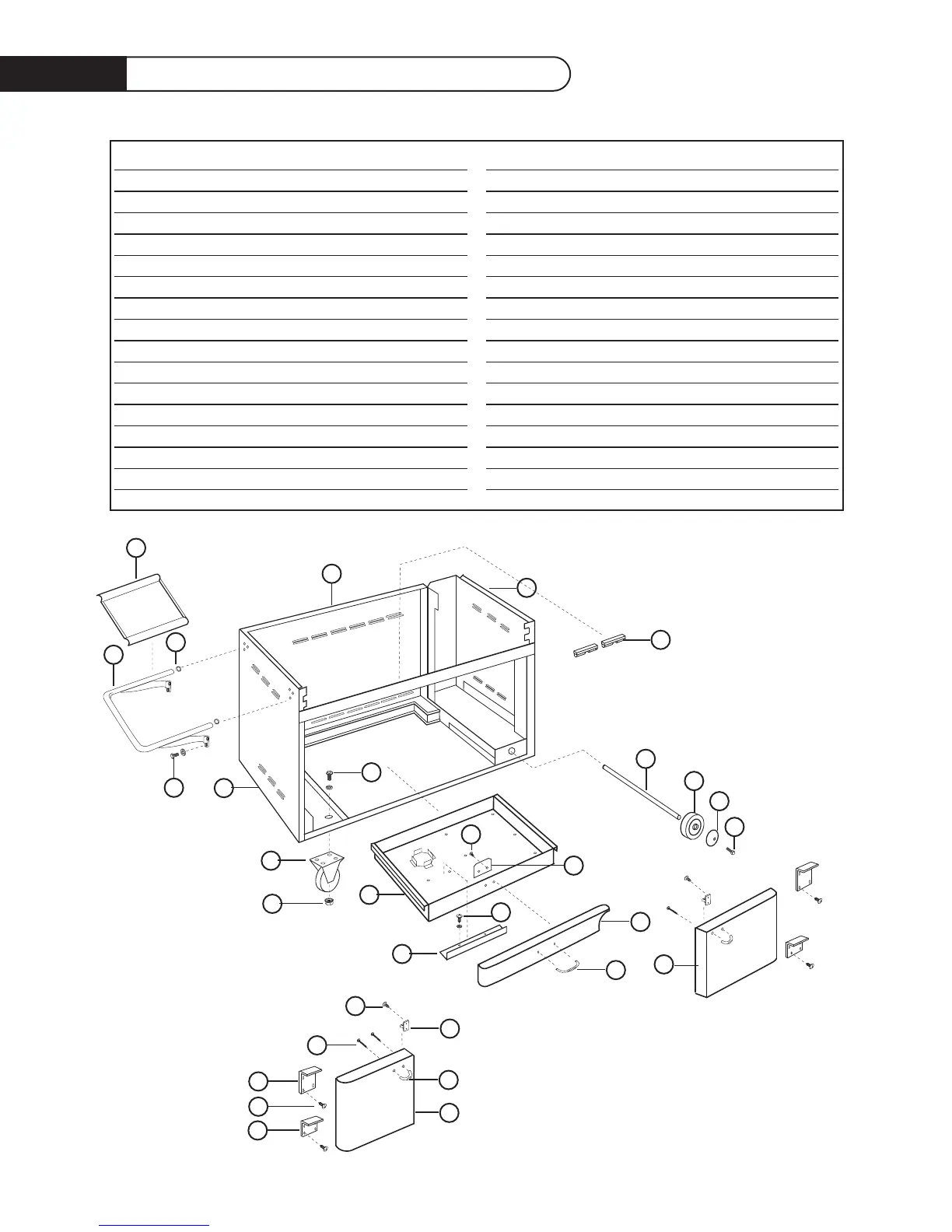

36 Grill Cart Parts List
ITEM DESCRIPTION PART NO.
1 Side Shelf Tray 41067
2Side Shelf End Cap 14205
3 Side Shelf Assembly 18212
4 Bolt 15003-06
5 Left Body Panel 41053
6 Rear Body Panel 41083
7 Hex Bolt 15150
8 Right Side Body Panel 41054
9Door Catch 14204
10 5” Caster 18022
11 Nut 15021-09
12 Axle 41062
13 8” Solid Rubber Wheel 18264
14 Hub Cap 41075-01-SP
15 Torx Screw 15002-45
16 Kickplate Weld Assembly 41097-01
17 Pull Handle 18204-02
18 Right Door Assembly 41113-01
19 Screw 15001-13
20 Door Stop Tab 41094
21 Hex Bolt 15002-17
22 LP Drawer Dam 41077
23 Screw 15002-41
24 Pull Handle 18024-01
25 Left Door Assembly 41113-02
26 Screw 15139
27 Top Hinge R/H 41092-01
Top Hinge L/H 41092-02
28 Screw 15002-26
29 Bottom Hinge R/H 41093-02
Bottom Hinge L/H 41093-01
30 Cart Drawer 41084
27
26
9
17
18
16
15
14
13
12
19
21
20
22
30
10
5
3
1
6
2
4
7
8
9
11
24
25
28
29
23
