Interface Connt;;>rtors
--RiiCIKIKUiil1llriinJ.l'dftlW"''llll!!EOllOIMollfowolll'MW -------------------

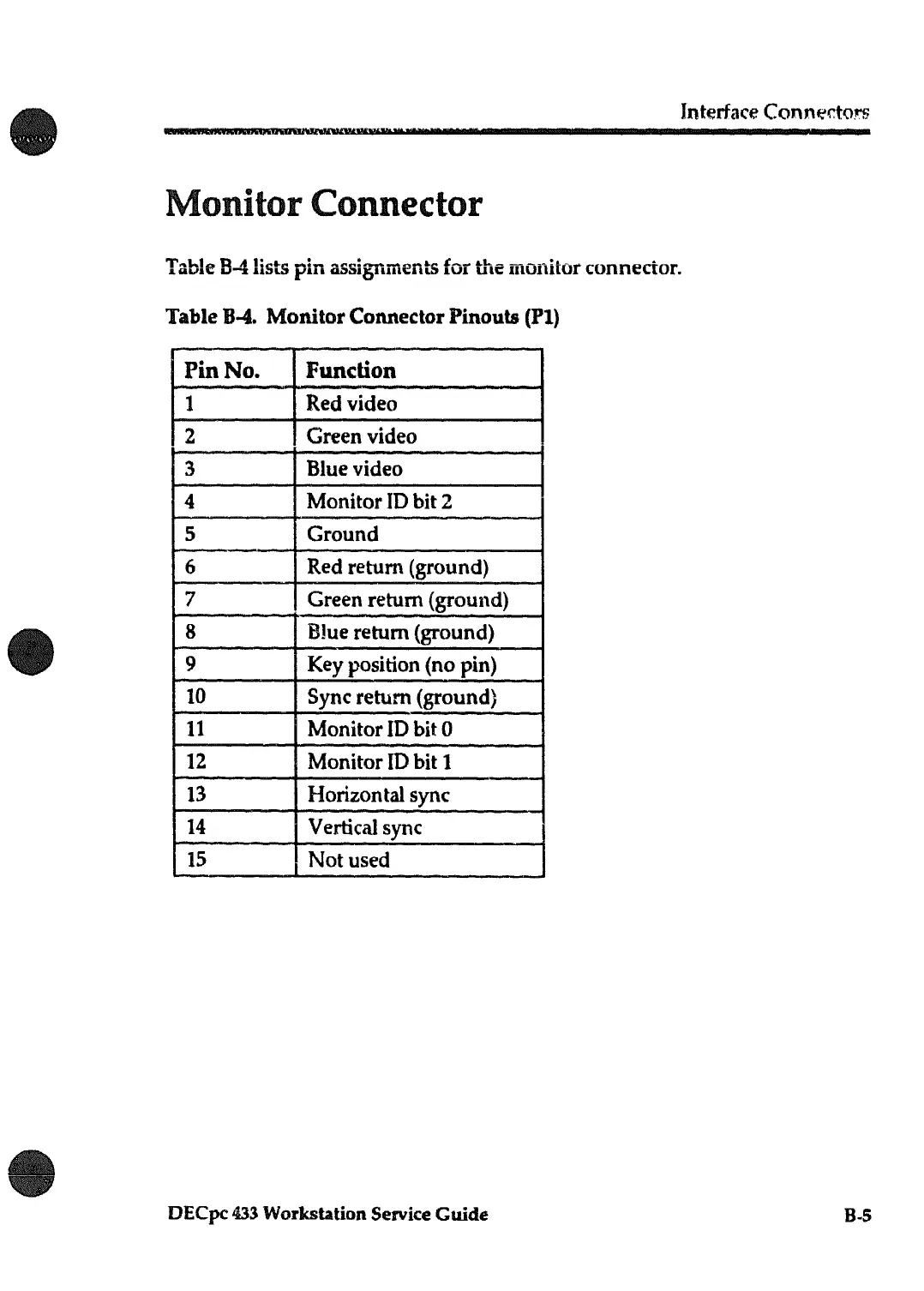

Monitor Connector
Table B-4 lists pin assignments for the monitor connector.
Table B-4. Monitor Connector Pinouts (Pl)
Pin No. Function
1 Red video
2 Green video
3 Blue video
4
Monitor ID bit 2
5
Ground
6 Red return (ground)
7 Green return (ground)
8
Blue return (ground)
9
Key position (no pin)
10
Sync return (ground}
11 Monitor ID bit 0
12
Monitor ID bit 1
13
Horizontal sync
14
Vertical sync
15
Not used
DECpc 433 Workstation Service Guide
B-5
