System Box FRU Repldcement
...
.....,..... __ ,....,.. \\
\\
\\
\\
\\
Retaining
Clip
\\
II
\\
\\
\\
\\
\\
\\

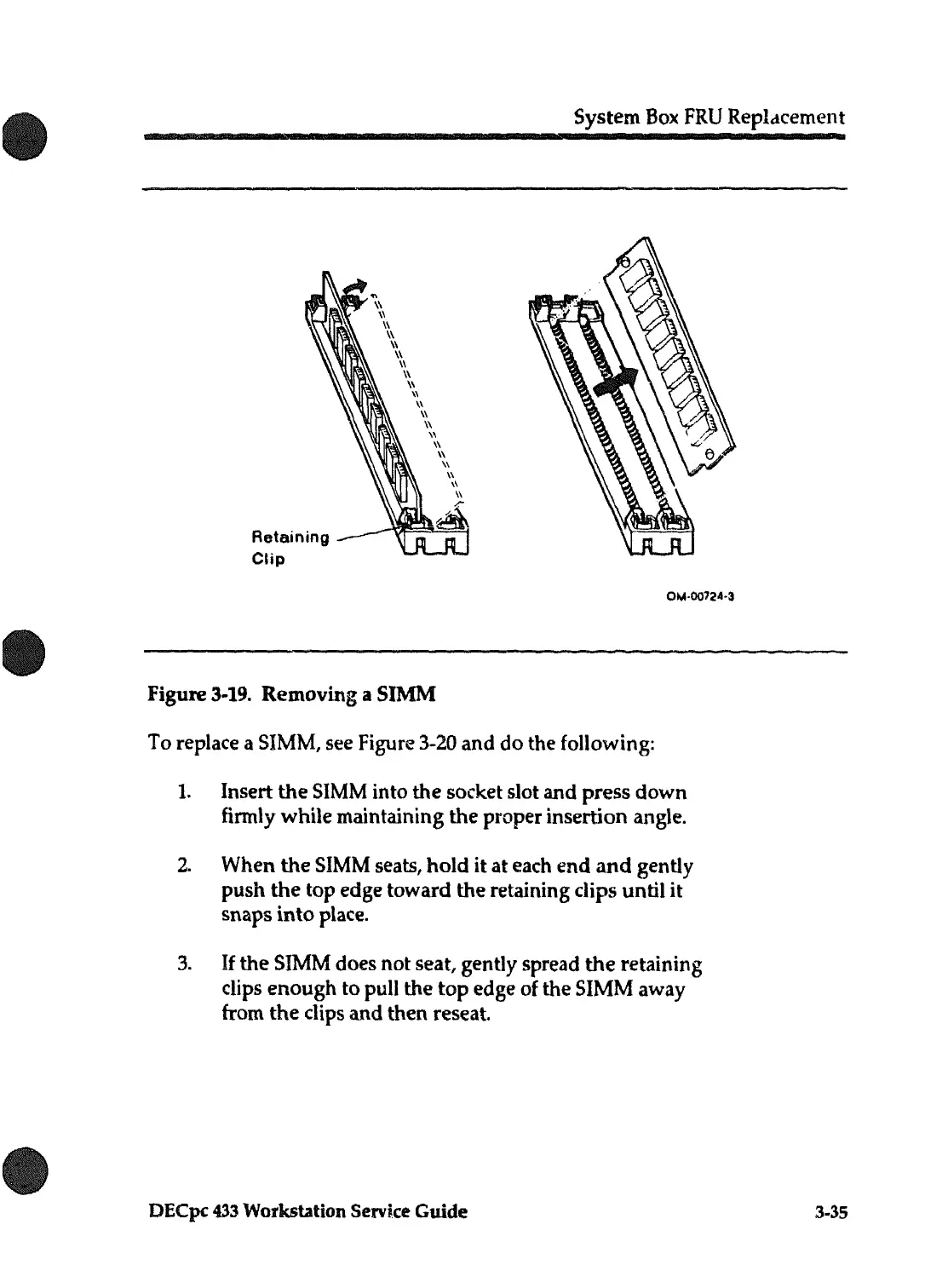

Figure 3-19. Removing a SIMM
To replace a SIMM, see Figure 3-20 and do the following:
OM-00724·3
1. Insert the SIMM into the socket slot and press down
firmly while maintaining the proper insertion angle.
2. When the SIMM seats, hold it at each end and gently
push the top edge toward the retaining clips until it
snaps into place.
3. If the SIMM does not seat, gently spread the retaining
clips enough to pull the top edge of the SIMM away
from
the clips and then reseat.
DECpc 433 Workstation Servke Guide
3-35
