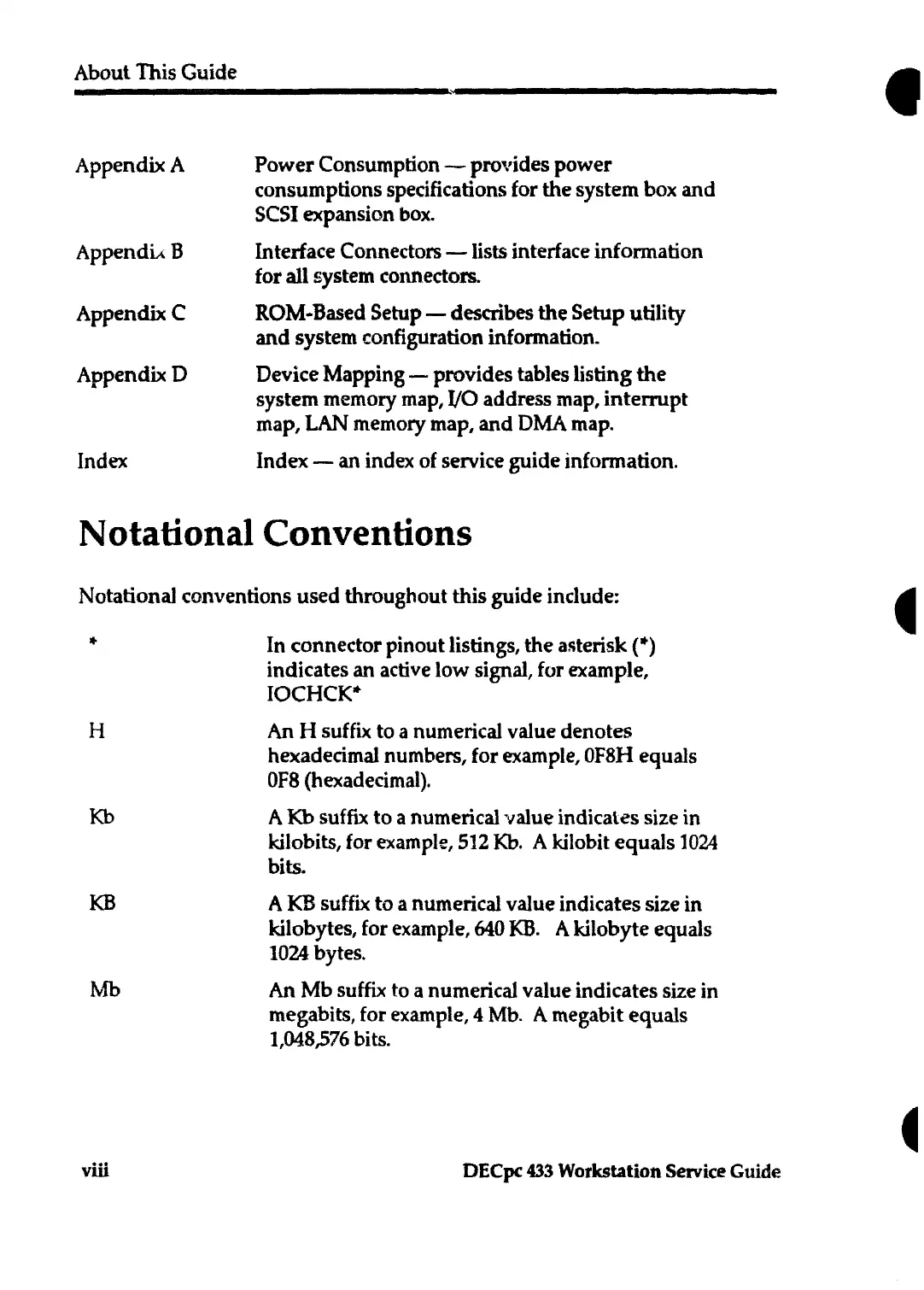

About This Guide
Appendix A
Appendu B
AppendixC
AppendixD
Index
Power Consumption - provides power
consumptions specifications for the system box and
SCSI expansion box.
Interface Connectors - lists interface
infonnation
for all system connectors.
ROM-Based Setup - describes the Setup utility
and system configuration information.
Device Mapping - provides tables listing the
system memory map, 1/0 address map, interrupt
map, LAN memory map, and DMA map.
Index - an index of service guide information.
Notational Conventions
Notational conventions used throughout this guide include:
...
H
Kb
KB
Mb
viii
In connector pinout listings, the asterisk ( .. )
indicates an active low signal, for example,
I OCH CK•
An H suffix to a numerical value denotes
hexadecimal numbers, for example, OF8H equals
OF8 (hexadecimal).
A Kb suffix to a numerical value indicates size in
kilobits, for example, 512 Kb. A kilobit equals 1024
bits.
A KB suffix to a numerical value indicates size in
kilobytes, for example, 640 KB. A kilobyte equals
1024 bytes.
An Mb suffix to a numerical value indicates size in
megabits, for example, 4 Mb. A megabit equals
1,048,576 bits.
DECpc 433 Workstation Service Guide
•
