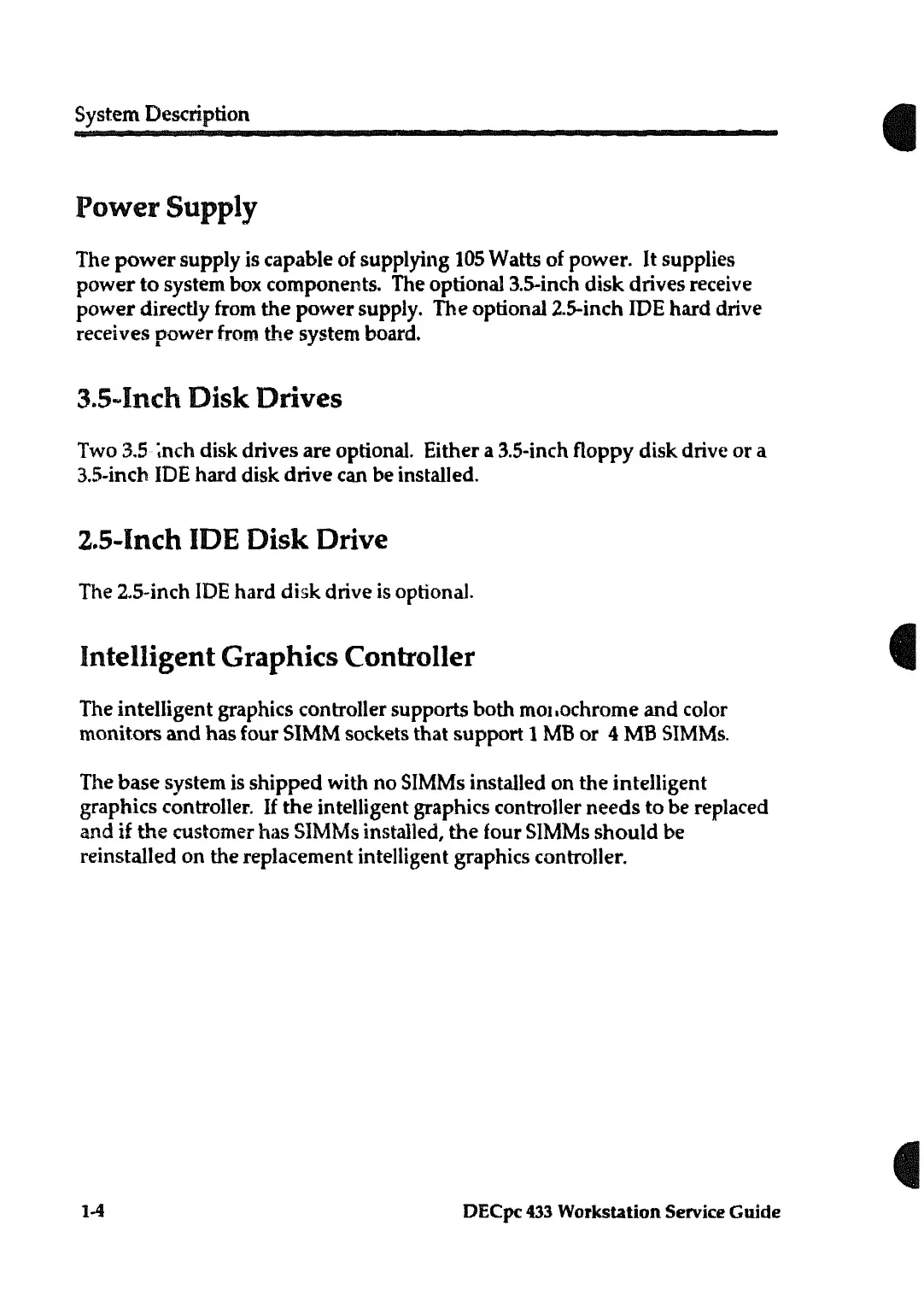

System Description
Power Supply
The power supply is capable of supplying 105 Watts of power. It supplies
power to system box components. The optional 3.5-inch disk drives receive
power directly from the power supply. The optional 2.5-inch IDE hard drive
receives
power from the system board.
3.5 ... Inch Disk Drives
Two 3.5 ~nch disk drives are optional. Either a 3.5-inch floppy disk drive or a
3.5-inch IDE hard disk drive can be installed.
2.5-lnch IDE Disk Drive
The 2.5-inch IDE hard disk drive is optional.
Intelligent Graphics Controller
The intelligent graphics controller supports both m01.ochrome and color
monitors and has four SIMM sockets that support 1 MB or 4 MB SIMMs.
The base system is shipped with no SIMMs installed on the intelligent
graphics controller.
If the intelligent graphics controller needs to be replaced
and if the customer has SIMMs installed, the four SIMMs should be
reinstalled on the replacement intelligent graphics controller.
1-4
DECpc 433 Workstation Service Guide
•
•
